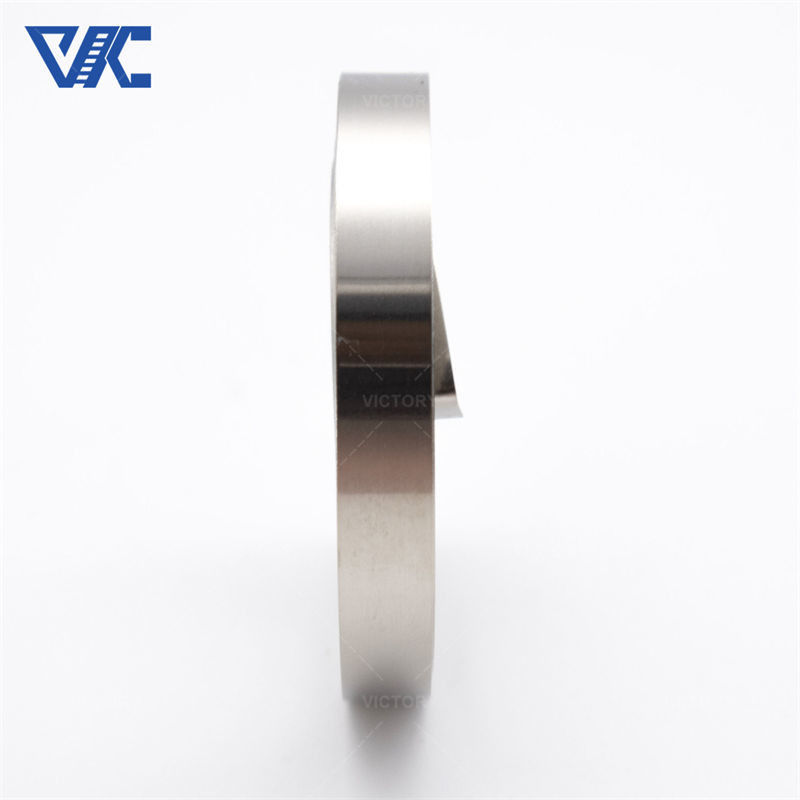

HB 75-90 N04400 Nickel Alloy 400 Strip In Medical Device Field
  • name
  • name
  • name
  • name
  • name

HB 75-90 N04400 Nickel Alloy 400 Strip In Medical Device Field

MOQ: 5 Kg
Price: Negotiable
Standard Packaging: monel 400 strip packed into wooden box, OEM ODM is acceptable
Delivery Period: 5-21 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 300 tons per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Victory
Certification
CE,ROHS,ISO 9001
Model Number
Monel 400
Document
Product Brochure PDF
Product Name:
Monel 400 Strip
Material:
Nickle Alloy Material
Nickel(Min):
63%
Density:
8.83 G/cm³
Melting Point:
1300-1350°C
Elongation (≥ %):
40%
Surface:
Acid White/Bright
Thermal Conductivity:
22.6 W/(m·K)
Yield Strength:
240 MPa
Tensile Strength:
550 MPa
Hardness:
HB 75-90
Application:
Surgical Instruments, Medical Equipment Holders
Highlight:

Medical Device Nickel Alloy 400 Strip

,

HB 75-90 Nickel Alloy 400 Strip

,

N04400 Nickel Alloy Strip

Product Description

Introduction:

Monel 400 tape has a wide range of applications in the medical device field. As a nickel alloy material, it has excellent performance characteristics. The material contains no less than 63% nickel, has a density of 8.83 g/cm³, and a melting point between 1300-1350°C. It has an elongation of 40%, a bright white surface treatment by pickling, and good thermal conductivity and mechanical properties, including a yield strength of 240 MPa, a tensile strength of 550 MPa and a hardness of HB 75-90.

Monel 400 tape has a wide range of applications in the field of medical devices. It has excellent corrosion resistance and can resist the erosion of equipment by various corrosive media, ensuring the hygiene and safety of medical equipment. Its excellent mechanical properties make it suitable for manufacturing a variety of medical devices, such as surgical tools, implantable devices and components of medical equipment. In addition, Monel 400 tape has good thermal conductivity properties, which facilitates heat transfer and control in medical devices and is suitable for applications requiring precise temperature control.



Features:

  • Biocompatibility: Monel 400 tape has good biocompatibility, will not cause allergic reactions or toxicity, and is suitable for medical devices in contact with the human body.
  • Corrosion resistance: Monel 400 tape has excellent corrosion resistance and can withstand corrosive media such as acids, alkalis and salts in medical environments.
  • Strength and Durability: Monel 400 tape has high strength and good durability to withstand the use and load requirements of medical devices.



Parameter:

  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 .35-.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max

Item
Density
Melting point
Tensile Strength
Yield Strength
Elongation
HB
Monel 400
8.83 g/cm3
1300-1390℃
480
170
35%
≥331

Monel 400
Bar/Rod
Forging
Pipe
Sheet/Strip
Welding Wire
Standard
ASTM B164
ASTM B564
ASTM B165
ASTM B127
ErNiCu-7



Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max
For more details, pls directly contact us.


contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service



Specific applications:

  1. Surgical Instruments: Monel 400 strip can be used to manufacture surgical instruments, such as forceps, scissors, and needle tips, with a high degree of precision and corrosion resistance.
  2. Medical device stents: Monel 400 tape can be used to make stents for medical devices, such as implants and orthopedic braces, providing stability and reliability.
  3. Medical Sensors: Monel 400 strip can be used to manufacture electrodes and contact parts of medical sensors for monitoring biological signals and measurement parameters.

HB 75-90 N04400 Nickel Alloy 400 Strip In Medical Device Field 0 HB 75-90 N04400 Nickel Alloy 400 Strip In Medical Device Field 1





Q&A:

What are the main advantages of Monel 400 tape in medical devices?
Key benefits of Monel 400 tape include biocompatibility, corrosion resistance and strength durability, making it a reliable material choice in medical devices.



What are the specific applications of Monel 400 tape in surgical instruments?
Monel 400 strip can be used to manufacture surgical instruments, such as surgical forceps and scissors, with a high degree of precision and corrosion resistance, suitable for surgical and therapeutic procedures.



What is the role of Monel 400 tape in medical device stents?
Monel 400 tape can be used to make scaffolds for medical devices, such as implants and orthopedic stents, providing stability and reliability for supporting and repairing human tissue.
