Corrosion Resistance Nickel Based Alloy Monel K500 Strip For Oil And Gas Industry
  • name
  • name
  • name
  • name
  • name
  • name

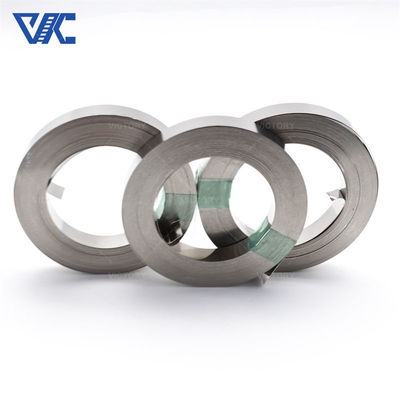

Corrosion Resistance Nickel Based Alloy Monel K500 Strip For Oil And Gas Industry

MOQ: 5 Kg
Price: Negotiable
Standard Packaging: Spool package with Carton box, Coil package with polybag
Delivery Period: 5-21 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 300 tons per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Victory
Certification
CE,ROHS,ISO 9001
Model Number
Monel K500
Document
Product Brochure PDF
Product Name:
Monel K500 Strip
Material:
Nickle Alloy Material
Ni (Min):
63%
Density:
8.44 G/cm³
Melting Point:
1315-1350°C
Thermal Conductivity:
17.2 W/(m·K)
Elongation (≥ %):
20%
Yield Strength:
345 MPa
Tensile Strength:
760 MPa
Hardness:
HB 150-250
Application:
Oil Pipelines, Oil Well Equipment
Surface:
Bright,Oxided
Highlight:

Gas Industry Monel K500 Strip

,

Corrosion Resistance Monel K500 Strip

,

Oil Industry Monel K500 Strip

Product Description

Introduction:


Monel K500 Strip is a nickel alloy material with excellent performance characteristics. It contains no less than 63% nickel, has a density of 8.44 g/cm³, and a melting point between 1315-1350°C. The material has an elongation of 20% and a thermal conductivity of 17.2 W/(m·K).

Monel K500 Strip is mainly used in the oil and gas industry, especially for oil and gas pipelines and oil well equipment. It has excellent mechanical properties, including a yield strength of 345 MPa, a tensile strength of 760 MPa and a hardness of HB 150-250. This allows it to withstand the high pressure and high stress environments found in the oil and gas industry, ensuring equipment reliability and durability.

Monel K500 Strip has good corrosion resistance and can withstand corrosive media in oil and gas, including chlorides and sulfides. Its surface treatment can be bright or oxidized, depending on specific needs.





Parameter:

Chemical composition:
Nickel (Ni): about 63%
Copper (Cu): about 29.5%
Aluminum (Al): about 2.7%
Titanium (Ti): about 0.6%
Iron (Fe): about 2%
Manganese (Mn): about 1.5%
Silicon (Si): about 0.5%
Carbon (C): up to 0.25%


Physical properties:
Density: about 8.05g/cubic centimeter
Melting point: about 1288-1343 degrees Celsius
Thermal Conductivity: Approximately 17.2 Watts/meter-Kelvin
Linear expansion coefficient: approximately 13.9 x 10^-6 degrees Celsius^-1 (room temperature to 100 degrees Celsius)


Mechanical behavior:
Yield Strength (Tensile Strength): Minimum approximately 790 MPa (80,000 psi)
Tensile Strength: Minimum approximately 1100 MPa (110,000 psi)
Elongation: minimum value is about 20%





  • Chemical Properties of Monel K500

Ni Cu Al Ti C Mn Fe S Si

63 Max

 27-33 2.3-3.15 0.35-0.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max
Item Density Melting point Tensile Strength Yield Strength Elongation
Monel K500 8.05 g/cm3 1288-1343℃ 1100 790 20%
Monel K500 Bar/Rod Forging Pipe Sheet/Strip Welding Wire
Standard ASTM B864 AMS4676 ASTM B865 ASTM B564 ErNiCu-7



Typical Room Temperature Tensile Properties of Annealed Material

Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max

Advantage:



  •
  • High strength: Monel K500 strip has excellent strength and hardness, can withstand high stress and extrusion force, and is suitable for harsh industrial environments.
  • Corrosion resistance: Monel K500 strip has excellent corrosion resistance and can withstand corrosive media in the oil and gas industry, including acids, alkalis and salts.
  • Wear resistance: Monel K500 strip has good wear resistance and can resist damage to the material by abrasion and abrasive particles.
  •
  •

Application:

  1. Oil pipelines: Monel K500 strip can be used to manufacture key components of oil pipelines, such as valves, joints and connections, etc., with excellent corrosion resistance and wear resistance.
  2. Oil well equipment: Monel K500 tape can be used to manufacture oil well equipment, such as pump components, valves and casing, etc., which can maintain stability and durability in harsh underground environments.
  3. Offshore platforms: Monel K500 strips can be used in the construction and maintenance of offshore platforms, such as anti-corrosion coatings and structural supports to cope with the corrosive effects of seawater and sea air.
  •

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service



Corrosion Resistance Nickel Based Alloy Monel K500 Strip For Oil And Gas Industry 0 Corrosion Resistance Nickel Based Alloy Monel K500 Strip For Oil And Gas Industry 1



Tags:

AMS 4730 Monel Alloy,
