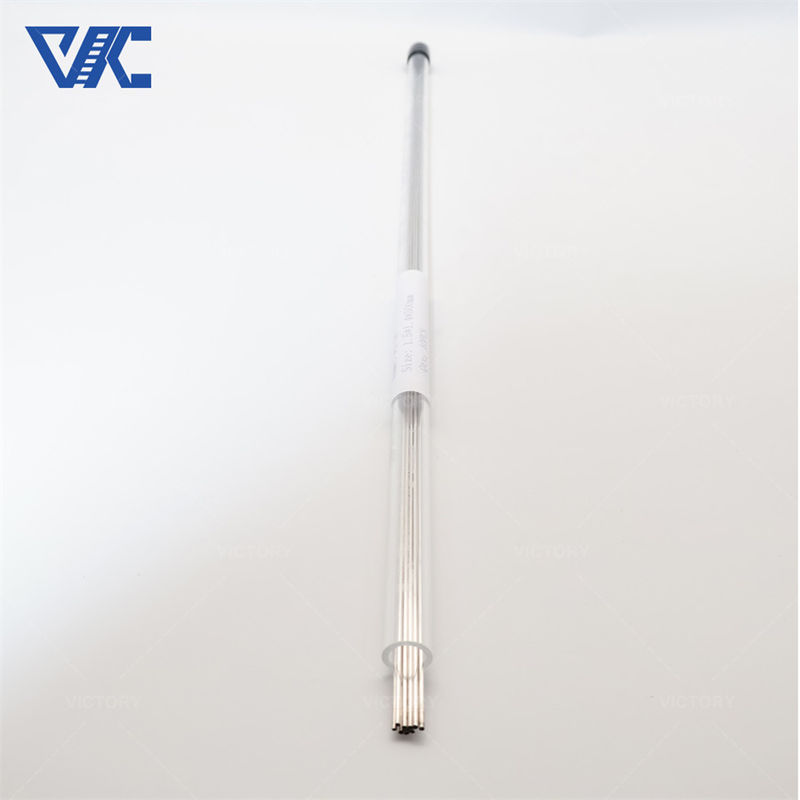

Pt90 Ir10 Platinum Iridium Based Material With Ring Metal Tube Alloy Medical Tube

MOQ:	5 Kg
Price:	Negotiable
Standard Packaging:	carton or wooden cases,Per buyer request (wooden case for ceramic pad heating element)
Delivery Period:	7 to 20 Days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	300 tons per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

CE,ROHS,ISO 9001

Model Number

Pt90/Ir10

Document

Name:

Platinum-Iridium Tube

Model Number:

PT-IR

Material:

90%platinum 10%iridium

Shape:

Marker Band

Thinkness:

Min 0.025mm

Tolerance:

+0.01mm-0.01mm

Density:

21.6g/cm3

Application:

Radiopaque Marking, Ring Electrodes, Cardiac Rhythm Management Devices, And Catheter

0.2-8mm

Thickness:

0.015 - 0.75mm

Length:

1mm And Customized

Highlight:

Medical Tube Iridium Based Material

Ring Metal Platinum Iridium Based Material

Pt90 Ir10 Platinum Iridium Based Material

Product Description

Introduction:

Pt90/Ir10 platinum iridium tube is a type of tube used in the medical field, which includes platinum labeling rings and platinum ring electrodes. Platinum iridium tubes have excellent biocompatibility and corrosion resistance, making them suitable for the manufacturing of medical devices such as pacemakers and medical marker rings. Platinum labeling rings and platinum ring electrodes are commonly used for positioning and guidance to ensure accurate placement and stable performance of medical devices. This material also has excellent conductivity, which can effectively transmit electrical signals, thus ensuring the normal operation of medical equipment.

Parameter:

Material	Platinum iridium
Chemical Composition	Pt90Ir10
OD	0.2-8mm
Thickness	0.015 - 0.75mm
Length	1mm and customized
Application	radiopaque marking, ring electrodes, cardiac rhythm management devices, and catheter
Packing	Plastic Box
Certificate	CE, RoHS, ISO

Pt90 Ir10 Platinum Iridium Based Material With Ring Metal Tube Alloy Medical Tube 0

Pt90 Ir10 Platinum Iridium Based Material With Ring Metal Tube Alloy Medical Tube 1

Application:

Pt90/Ir10 platinum iridium tubes have various specific applications in the medical industry, including:

Pacemakers and defibrillators: Pt90/Ir10 platinum iridium tubes are used to manufacture electrodes for pacemakers and defibrillators. These electrodes need to have good biocompatibility and corrosion resistance to ensure good long-term contact with heart tissue while maintaining stable performance.
Radiation therapy: Pt90/Ir10 platinum iridium tubes can be used as shells or catheters for radiation sources in radiation therapy. Its high density and corrosion resistance make it an ideal material for controlling the direction and intensity of radiation, thereby accurately treating tumors and minimizing damage to surrounding normal tissues.
Interventional surgery: In interventional surgery, medical marker bands are usually made of Pt90/Ir10 platinum iridium tubes. These marking rings are used to mark specific positions inside medical devices to assist doctors in accurately positioning instruments or monitoring devices during surgery, thereby improving the accuracy and safety of surgery.

Pt90 Ir10 Platinum Iridium Based Material With Ring Metal Tube Alloy Medical Tube 2

Feature:

Biocompatibility: Suitable for contact with human tissues and will not cause rejection or allergic reactions.
Corrosion resistance: It has excellent corrosion resistance and can be used stably for a long time in the internal environment.
High temperature performance: able to withstand high temperature environments and maintain stable performance.
Excellent mechanical performance: with high strength and wear resistance, suitable for various demanding application scenarios.
