Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO
Model Number: NiCr 80/20
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 50 KGS
Price: 50 - 500 kgs $35-$43
Packaging Details: Wooden Case
Delivery Time: 21-45 working days
Payment Terms: L/C, T/T, D/A
Supply Ability: 10 Tons Per Month
Material: |
Nickel, Chromium |
Surface: |
Bright/Acid White/Oxidized |
Max Width: |
200-250mm |
Density: |
8.40 G/cm3 |
Resistivity: |
1.09±0.05 |
Elongation At Rupture: |
≥20% |
Max Working Temperature: |
1200℃ |
Melting Point: |
1400℃ |
Thermal Conductivity KJ/m.h ℃: |
60.3 |
Magnetic Properities: |
Nonmagnetic |
MOQ: |
10-50KGS |
Lead Time: |
15-35 Days After Order Confirm |
Material: |
Nickel, Chromium |
Surface: |
Bright/Acid White/Oxidized |
Max Width: |
200-250mm |
Density: |
8.40 G/cm3 |
Resistivity: |
1.09±0.05 |
Elongation At Rupture: |
≥20% |
Max Working Temperature: |
1200℃ |
Melting Point: |
1400℃ |
Thermal Conductivity KJ/m.h ℃: |
60.3 |
Magnetic Properities: |
Nonmagnetic |
MOQ: |
10-50KGS |
Lead Time: |
15-35 Days After Order Confirm |

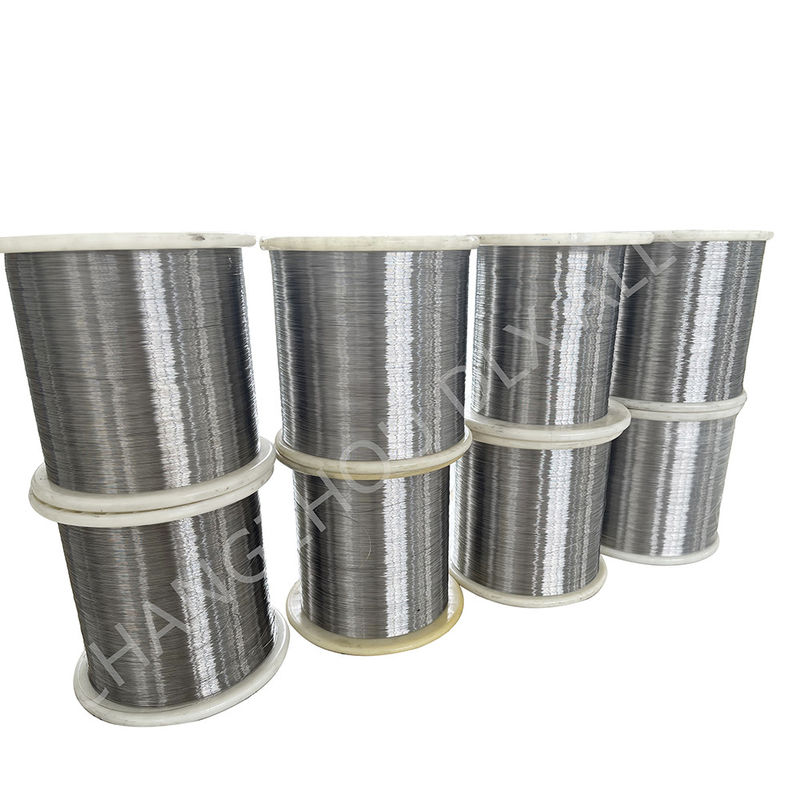

Cr20Ni80 Wire: Nickel Alloy 1400℃ Melting Point Used In Industrial Furnaces
Cr20Ni80 nickel-chromium alloy wire is a high-performance resistive electric heating material, mainly composed of 80% nickel and 20% chromium, with a high melting point (about 1400°C-1450°C), and can operate stably at working temperatures up to 1200°C. The resistivity of this alloy wire is about 1.09μΩ·m at 20°C, and it can maintain a stable resistance value in a high-temperature environment. Its excellent oxidation resistance and corrosion resistance make it perform well in high-temperature oxidizing atmospheres, and it also has good processing properties and can be processed into wires of different diameters.
Cr20Ni80 alloy wire is widely used in industrial furnaces, electric heating elements, resistors, and high-temperature heating equipment, and is especially suitable for scenes that require long-term high-temperature stable operation. Its high melting point and good high-temperature stability make it an ideal material for industrial heating and household appliances.
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. temperature( °C ) | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Melting Point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density(g/cm3) | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity at 20ºC(μΩ@m) | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Elongation at rupture(%) | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific Heat J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Thermal conductivity KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Micrographic structure | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
1. Is Cr20Ni80 suitable for electric heating elements?
Yes, it is resistant to high temperatures, oxidation, and has stable resistance. It is a common heating wire material.
2. Is Cr20Ni80 difficult to process?
It has good processability, but hardens quickly and requires regular annealing.
3. How is the oxidation resistance of Cr20Ni80?
It has strong oxidation resistance, and a chromium oxide protective film will form on the surface, which is suitable for high temperature environments.
