What is Nitinol Wire?
Nitinol memory wire is a cutting-edge material primarily used in medical devices and precision components. Composed of a unique nickel-titanium alloy, Nitinol possesses remarkable properties that make it essential for modern medical technologies. This wire has the ability to return to its predetermined shape after being deformed, thanks to its exceptional "shape memory" properties. With increasing demand in the healthcare industry, Nitinol memory wire is widely used in applications such as stents, guidewires, orthodontic archwires, and other precision medical devices.
Our company specializes in the production and supply of high-quality Nitinol memory wire, offering precise dimensions, enhanced mechanical performance, and outstanding biocompatibility. Whether you are developing medical instruments, surgical tools, or implantable devices, our Nitinol wire is designed to meet the highest standards for safety and reliability.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

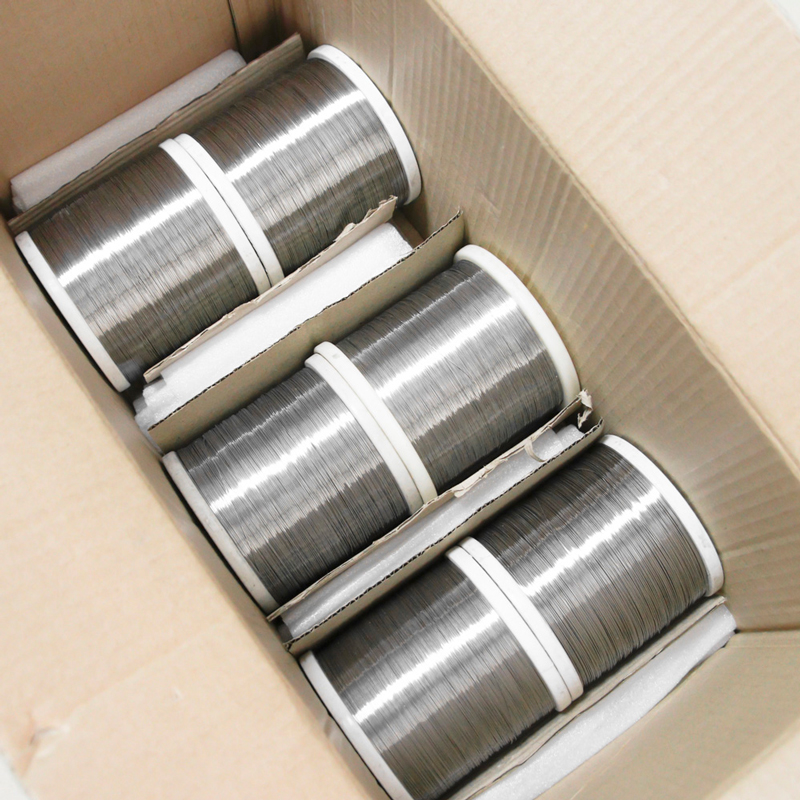

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Shape Memory Effect:
Nitinol memory wire has a unique ability to "remember" its original shape, which is activated by changes in temperature. This makes it an ideal material for applications that require precision movements and self-regulation, such as in medical devices where delicate operations are necessary.Superelasticity:
One of the key features of Nitinol is its superelasticity, which allows it to undergo significant strain without permanent deformation. This property ensures that devices made from Nitinol can withstand mechanical stress while maintaining their functionality, even in dynamic medical environments.Corrosion Resistance:
Nitinol offers excellent corrosion resistance, making it suitable for long-term use in the human body. Its ability to resist rust and degradation in bodily fluids ensures that medical devices remain safe and effective over extended periods.Biocompatibility:
As Nitinol is highly biocompatible, it minimizes the risk of immune system rejection when used in medical applications. This makes Nitinol an ideal choice for implants and devices that remain within the body for extended periods.Versatility:
Nitinol wire is versatile and can be custom-engineered to meet the specifications of various applications, from minimally invasive surgeries to complex orthopedic devices.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Reliable Performance in Critical Applications:
The unique properties of Nitinol ensure that medical devices function precisely and reliably under critical conditions. Whether in high-stress environments or in delicate surgical procedures, Nitinol provides the durability and performance that healthcare professionals depend on.Enhanced Safety and Patient Comfort:
With its shape memory and superelasticity, Nitinol can reduce patient discomfort by minimizing the need for rigid, invasive procedures. Devices made from Nitinol offer greater flexibility and smoother operation, contributing to safer and more comfortable medical interventions.Long-Term Durability:
Nitinol's exceptional resistance to corrosion and wear ensures that medical devices perform reliably over time. This durability is crucial in minimizing the need for frequent replacements and reducing patient risk.Customization Options:
Our Nitinol memory wire can be tailored to meet the specific needs of various medical devices. Whether you need a wire with particular flexibility, strength, or diameter, we provide customized solutions that fit your application perfectly.Efficient Manufacturing:
Our advanced manufacturing techniques allow us to produce high-quality Nitinol wire at scale, ensuring consistent product quality and competitive pricing for our customers.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |
Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Nitinol memory wire plays a vital role in numerous medical and precision engineering applications:
Medical Devices:
Nitinol is used in the development of various medical devices such as stents, guidewires, catheters, and orthopedic implants. Its biocompatibility and shape memory properties allow for effective deployment and performance in life-saving procedures.Orthodontics:
In orthodontics, Nitinol is commonly used for dental archwires. Its flexibility and shape memory make it perfect for adjusting the alignment of teeth over time with minimal discomfort to patients.Robotics and Precision Engineering:
Beyond medical applications, Nitinol wire is also used in robotics and high-precision components where small, intricate movements are required. Its ability to return to a specific shape makes it ideal for actuators and sensors in precision machinery.Automotive and Aerospace:
The aerospace and automotive industries also leverage Nitinol for components that require superior durability and flexibility, such as actuators and couplings.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

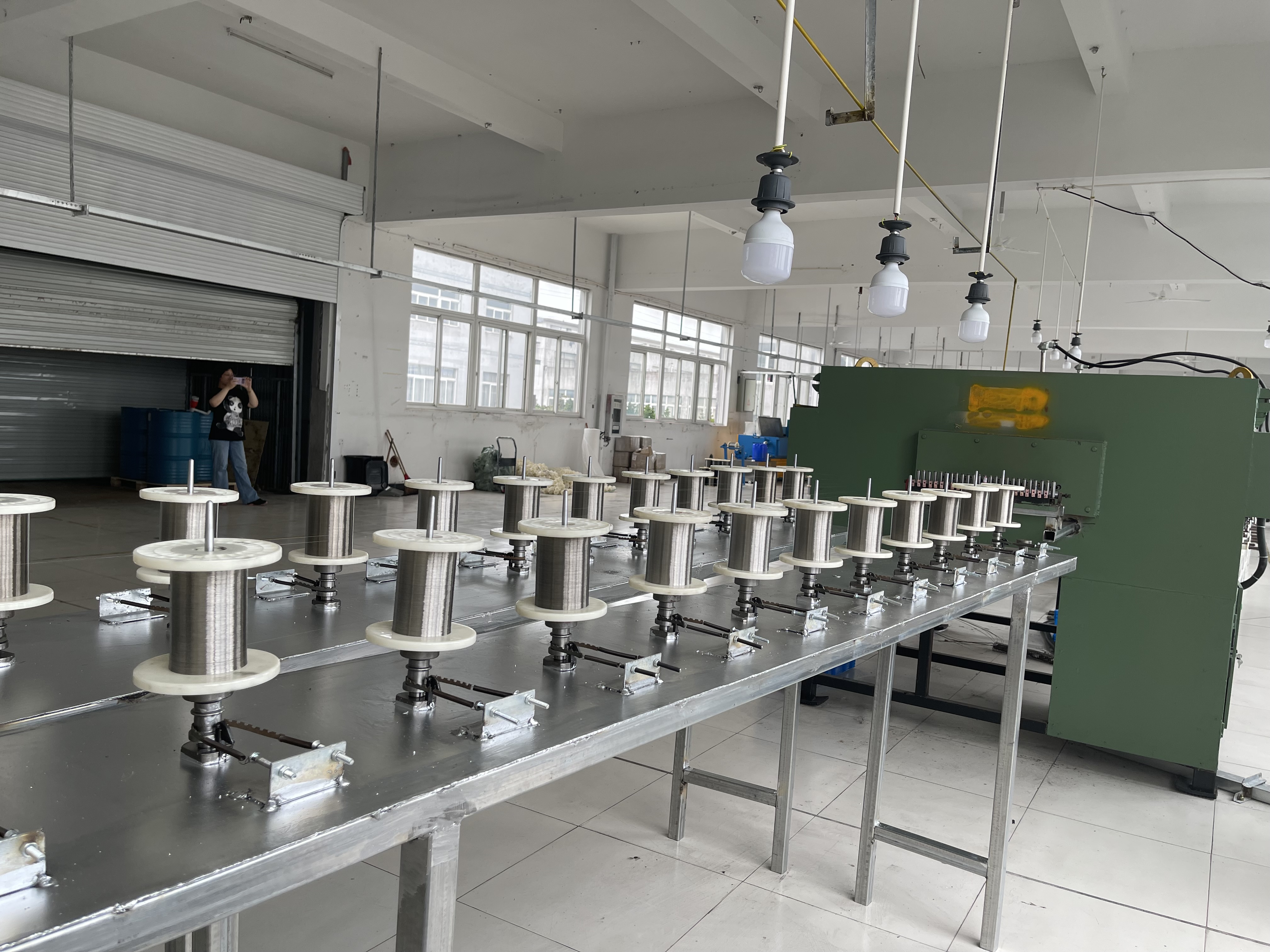

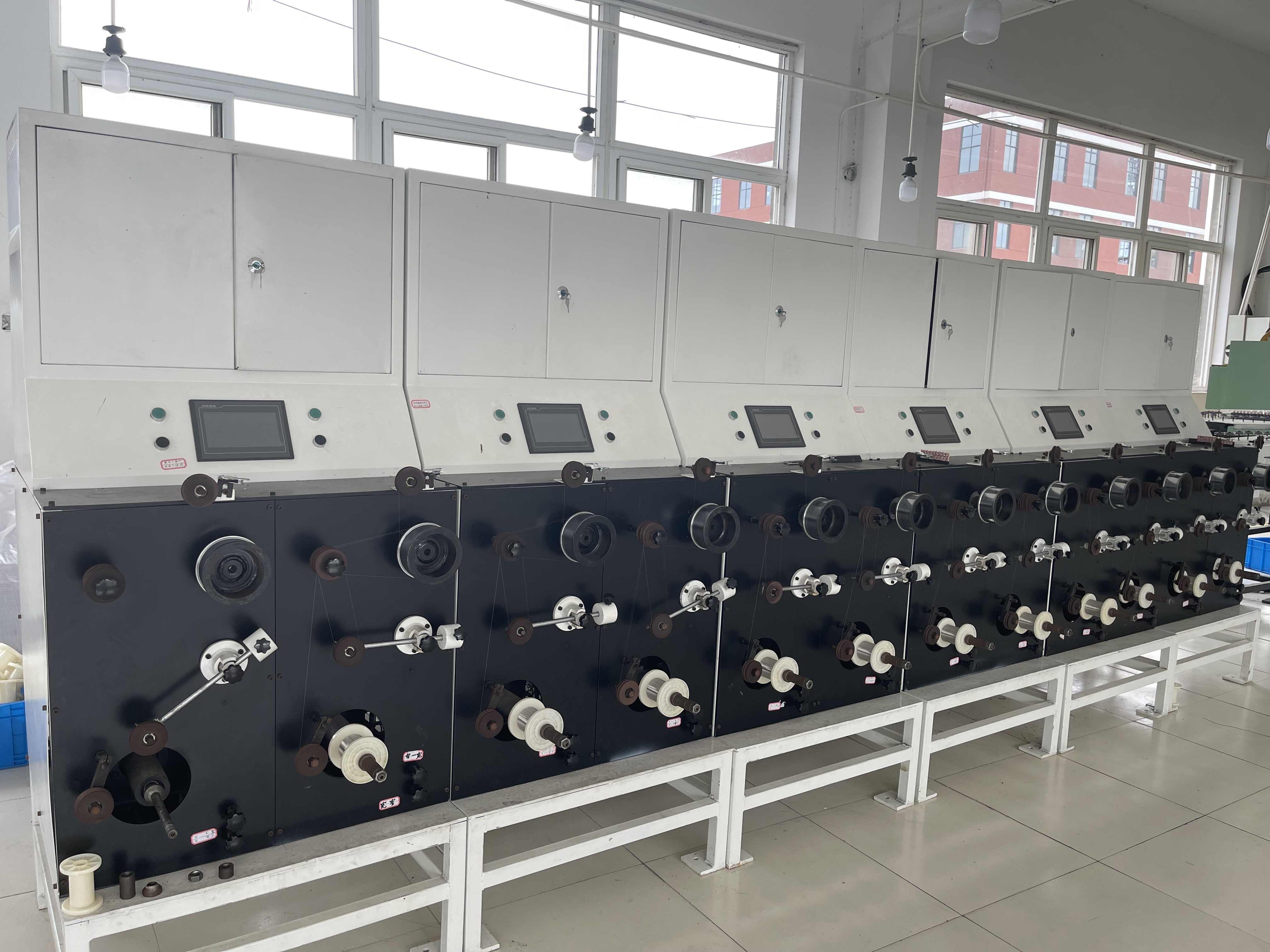

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What is Nitinol, and why is it used in medical devices?
Nitinol is a nickel-titanium alloy with shape memory and superelastic properties. It is used in medical devices due to its biocompatibility, corrosion resistance, and ability to return to a predefined shape when heated.What types of medical devices can use Nitinol memory wire?
Nitinol memory wire is commonly used in stents, guidewires, catheters, orthodontic wires, and implants, due to its flexibility, strength, and shape memory properties.Is Nitinol wire biocompatible?
Yes, Nitinol is highly biocompatible, which minimizes the risk of rejection when implanted in the body, making it ideal for long-term use in medical applications.How do I contact your company for Nitinol products?
You can reach us through our website's contact page or email us directly at [email]. Our customer service team is available to discuss your needs and provide expert assistance.What customization options do you offer for Nitinol wire?
We offer various customization options, including different wire diameters, flexibility levels, and surface treatments to meet the specific requirements of your application.
