Nitinol wire, made from an alloy of nickel and titanium, has become a crucial material in medical devices, particularly in cardiac and neural electrodes. The combination of shape-memory and superelasticity allows Nitinol wire to adapt to various environments, making it ideal for the precise and reliable integration required in these sensitive applications. At Victory, we specialize in providing high-quality Nitinol wire designed for long-lasting performance in cardiac and neural electrode systems.
What is Nitinol Wire?
Nitinol wire is a type of shape-memory alloy that "remembers" its original form. When exposed to heat, Nitinol wire can revert to its pre-programmed shape, making it highly adaptable to complex, dynamic environments. Additionally, Nitinol has superelasticity, which allows it to undergo substantial deformation without losing its structural integrity. These properties make it indispensable in medical devices, particularly those used for cardiac and neural electrode integration, where precise control, reliability, and flexibility are essential.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

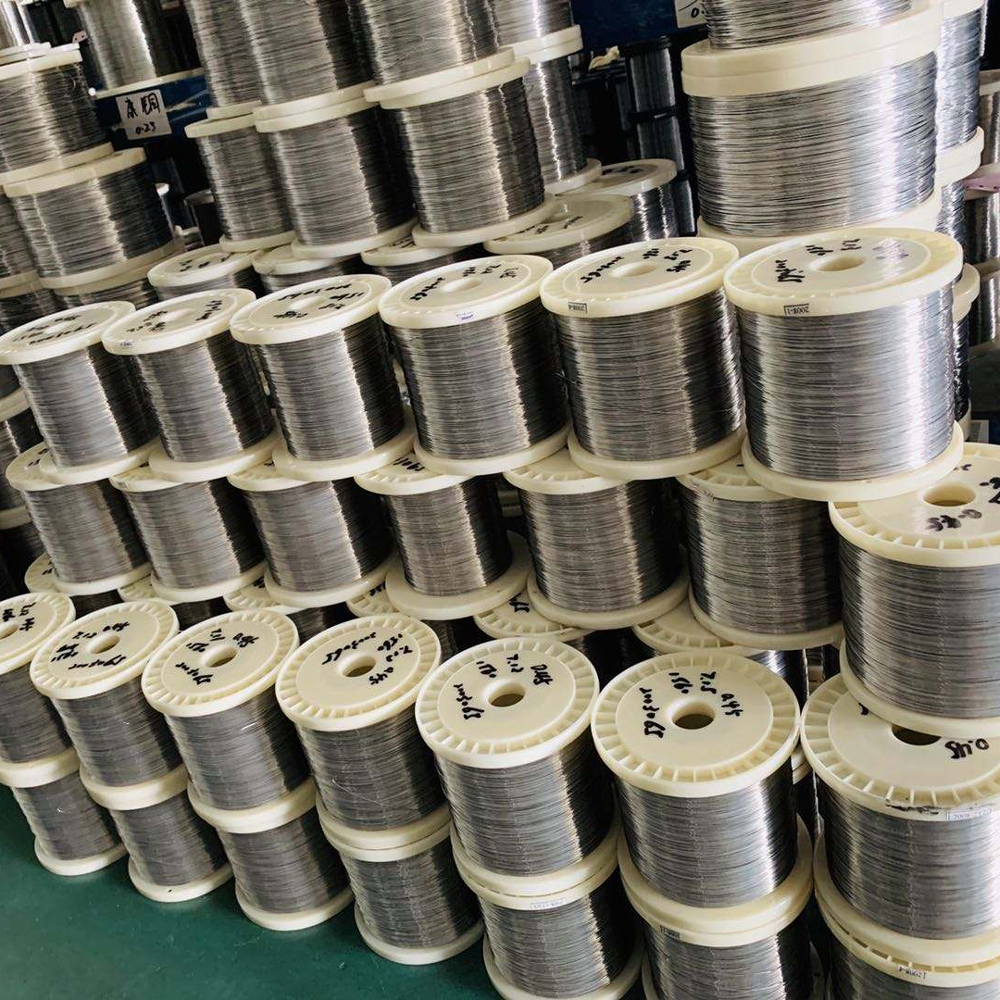

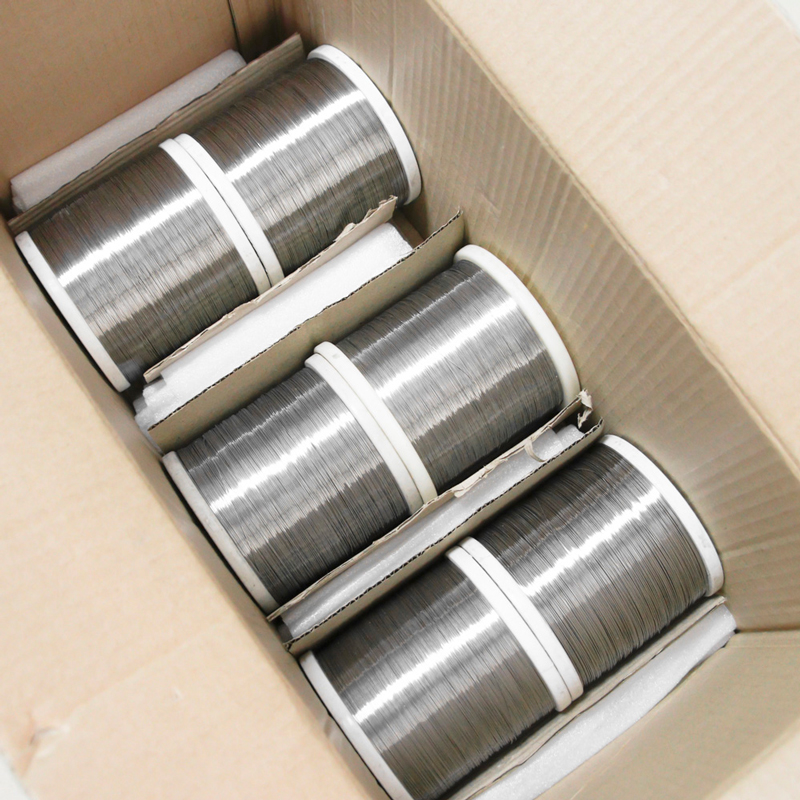

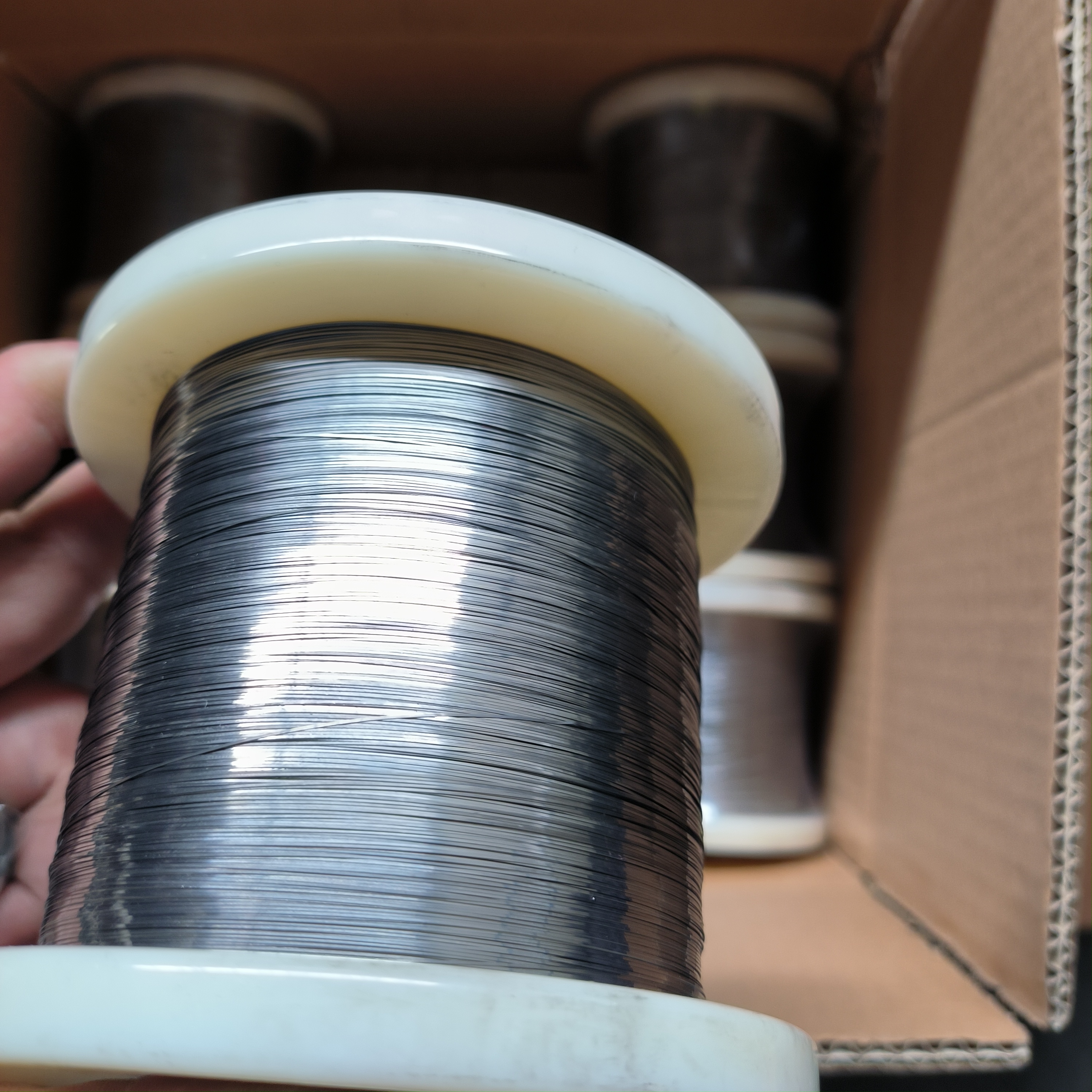

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Shape Memory Effect
Nitinol’s shape-memory effect enables the wire to change shape in response to temperature, making it ideal for applications where precise electrode positioning and stability are essential in cardiac and neural devices.Superelasticity for Flexibility
The superelasticity of Nitinol allows the wire to undergo large deformations without permanent damage, making it ideal for use in neural electrodes and cardiac applications that require flexibility and the ability to conform to irregular or dynamic shapes within the body.Biocompatibility for Safe Implantation
Nitinol wire is highly biocompatible, ensuring that it can safely remain in contact with human tissue without causing rejection or adverse reactions, which is essential for long-term implantation in neural and cardiac electrodes.Corrosion Resistance for Longevity
With excellent corrosion resistance, Nitinol wire is able to perform reliably over extended periods, even when exposed to bodily fluids, making it perfect for long-term applications such as implantable electrodes.High Precision and Small Diameter
Nitinol’s precision in manufacturing allows for very fine, small-diameter wire, which is perfect for sensitive applications such as neural electrodes and cardiac stimulation systems where space and accuracy are crucial.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Enhanced Signal Fidelity
Due to Nitinol's shape-memory and flexibility, the wire ensures accurate electrode positioning and consistent signal transmission. This results in enhanced performance in both neural stimulation and cardiac pacemaker systems, delivering clear and reliable signals.Reduced Risk of Displacement
The unique ability of Nitinol to maintain its form means that cardiac and neural electrodes are less likely to shift or dislocate within the body. This provides greater stability and reduces the risk of surgical re-intervention.Non-Invasive Procedure Benefits
Nitinol’s flexibility and superelasticity allow for thinner, more adaptable wires, enabling less invasive surgeries for electrode implantation. The ability to use smaller, more flexible wires enhances patient recovery and reduces the risk of post-surgical complications.Improved Durability in Harsh Conditions
Nitinol’s resistance to corrosion and mechanical stress makes it ideal for long-term use in environments like the human body, where it can withstand the constant movement and fluids encountered in neural and cardiac applications.Versatility Across Multiple Medical Devices
Beyond neuroelectrodes and cardiac pacemakers, Nitinol wire’s unique properties allow it to be used in a wide variety of medical devices, such as implantable sensors, neural prosthetics, and medical monitoring equipment
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

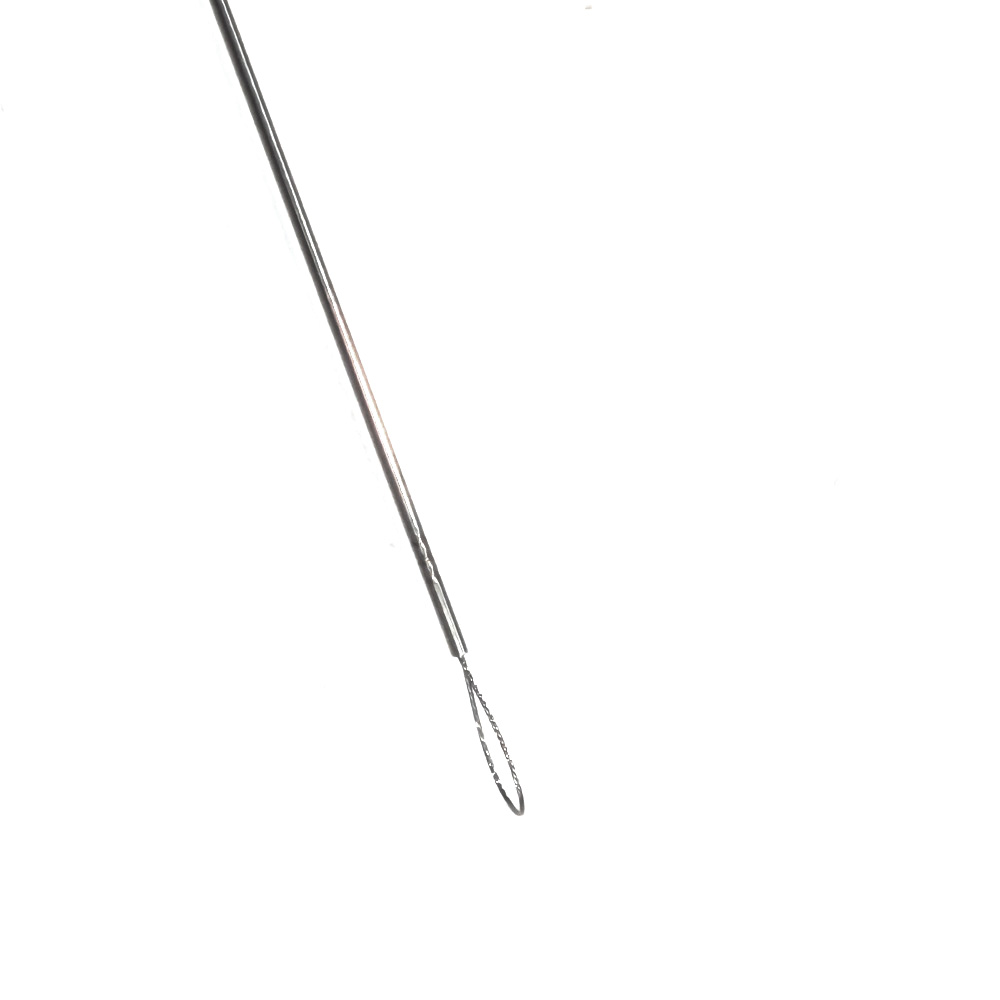

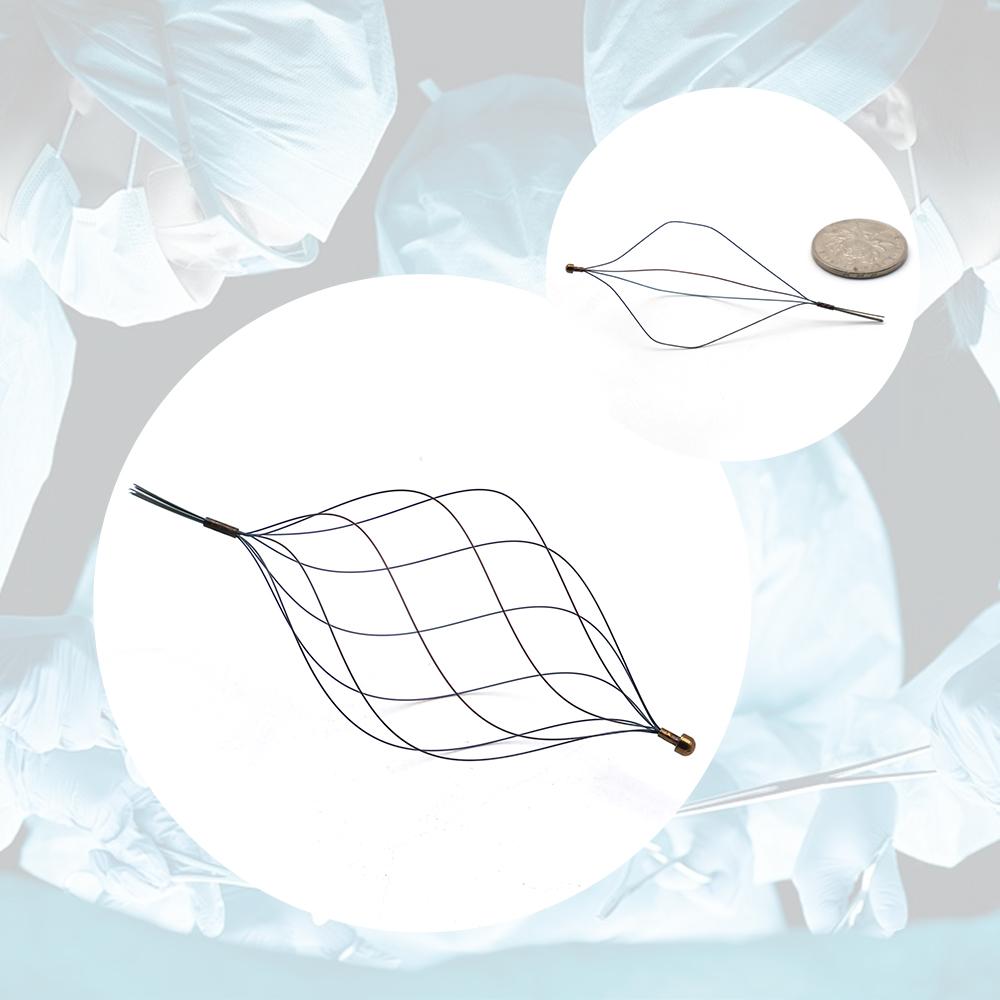

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Cardiac Pacemakers and Defibrillators
Nitinol wire is commonly used in cardiac pacemakers and defibrillator electrodes. The wire’s ability to maintain shape and flexibility ensures that the electrode stays in contact with the heart muscle, delivering accurate electrical impulses to regulate the heart’s rhythm.Neural Electrodes for Brain Stimulation
Neural electrodes made from Nitinol wire are used in neurostimulation therapies such as deep brain stimulation (DBS) for treating neurological conditions like Parkinson's disease. The flexibility and adaptability of Nitinol wire allow the electrodes to conform to the brain’s anatomy, providing stable electrical signals.Brain-Computer Interfaces (BCIs)
In neurotechnology, Nitinol wire is used in neural interfaces that allow for communication between the brain and external devices. Its biocompatibility and precision help facilitate this groundbreaking technology for people with disabilities or paralysis.Neural Prosthetics
Nitinol wire is utilized in neural prosthetics for patients with nerve damage, where the wire can be integrated into the prosthetic to interact with the nervous system, providing functional recovery through electrical stimulation.Implantable Biosensors
Nitinol wire is also used in implantable biosensors, where its flexibility and corrosion resistance are essential for long-term implantation in the body. These sensors monitor various biological signals such as glucose levels, blood pressure, or body temperature.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.
Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What is Nitinol wire used for in medical devices?

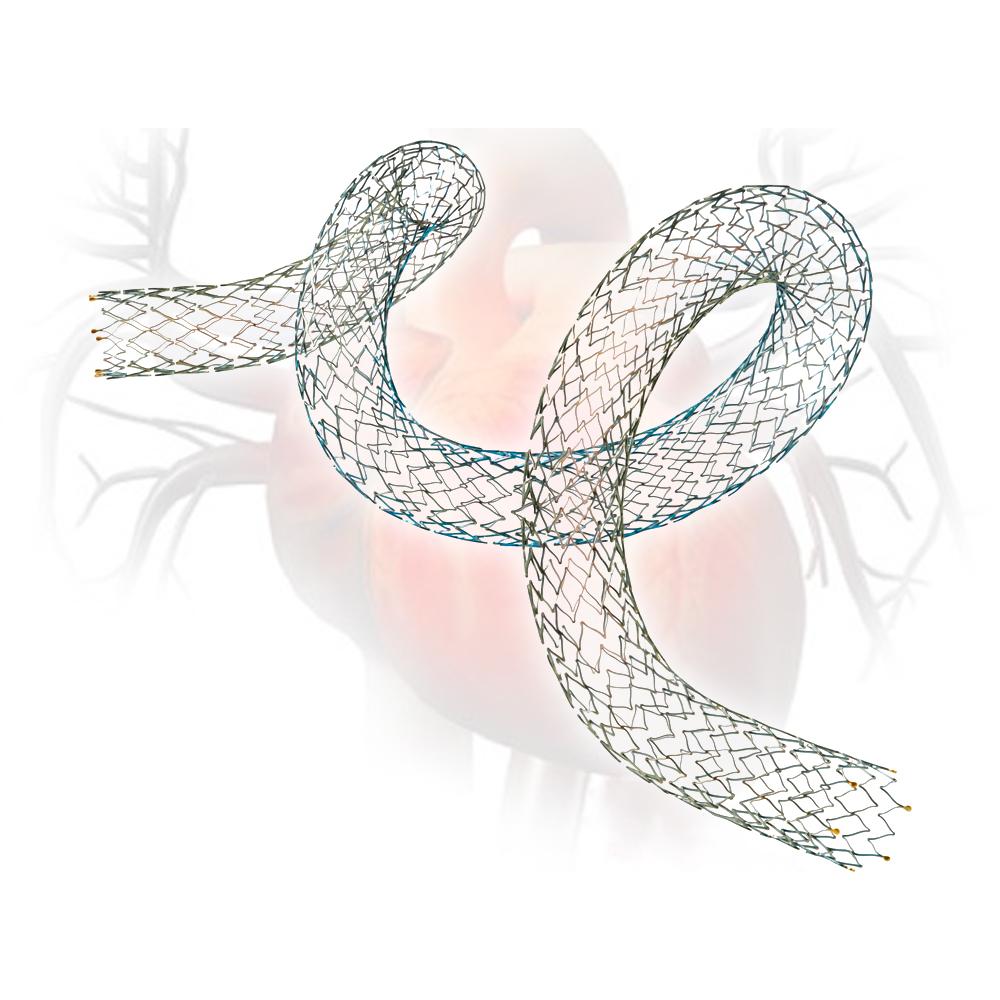

Nitinol wire is primarily used in cardiac pacemaker electrodes, stents, catheters, and other medical devices that require flexibility, durability, and shape-memory properties.How does Nitinol wire improve patient safety?
Nitinol's biocompatibility ensures that it does not cause adverse reactions in the body, while its superelasticity and flexibility minimize invasiveness and reduce trauma during medical procedures.What makes Nitinol wire different from other materials?
Nitinol wire stands out due to its shape-memory effect and superelasticity, which allow it to return to its original shape when exposed to heat and undergo significant deformation without damage.How can I purchase Nitinol wire from your company?
You can contact our sales team via the contact page on our website. We offer a range of Nitinol wire products for various medical and precision applications.
