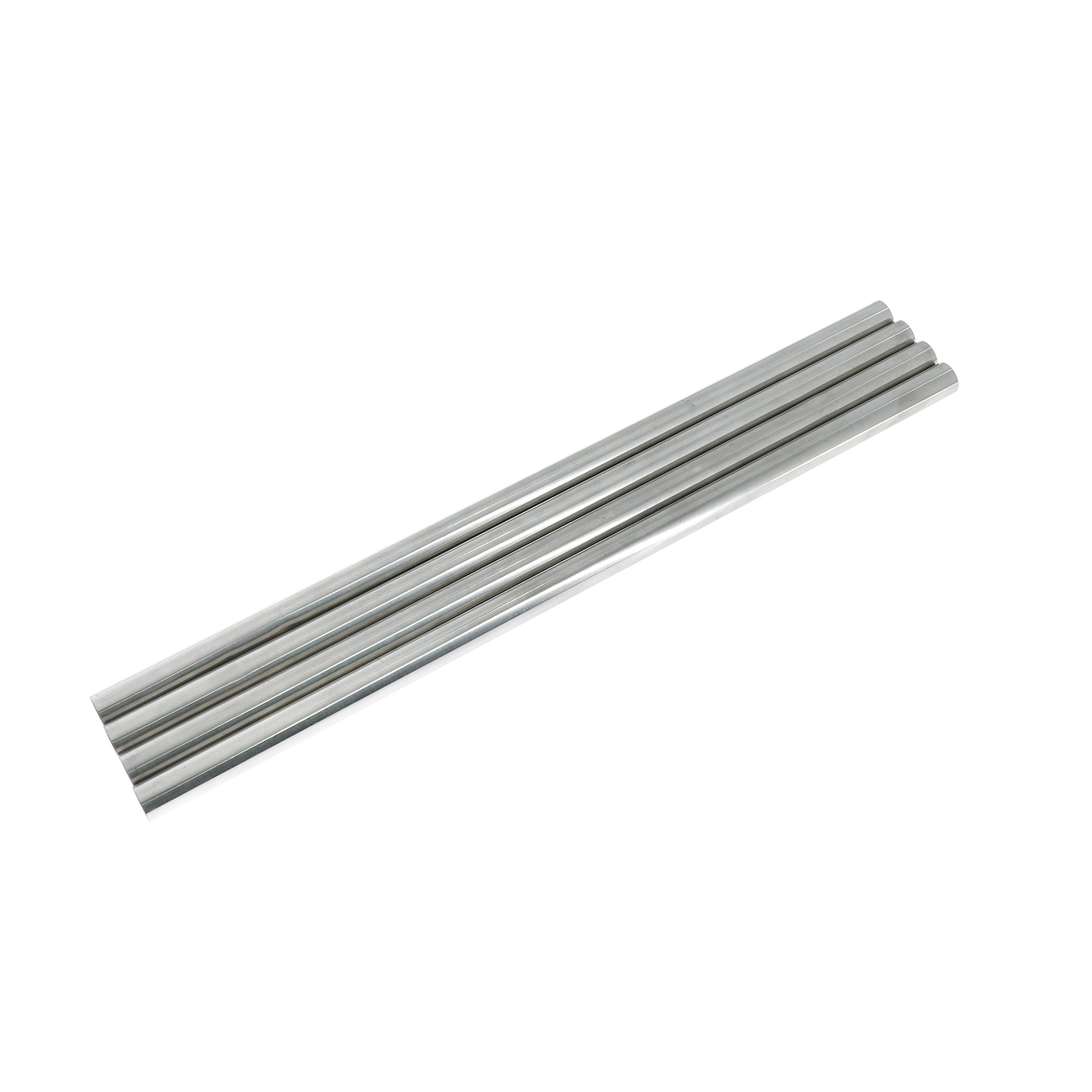

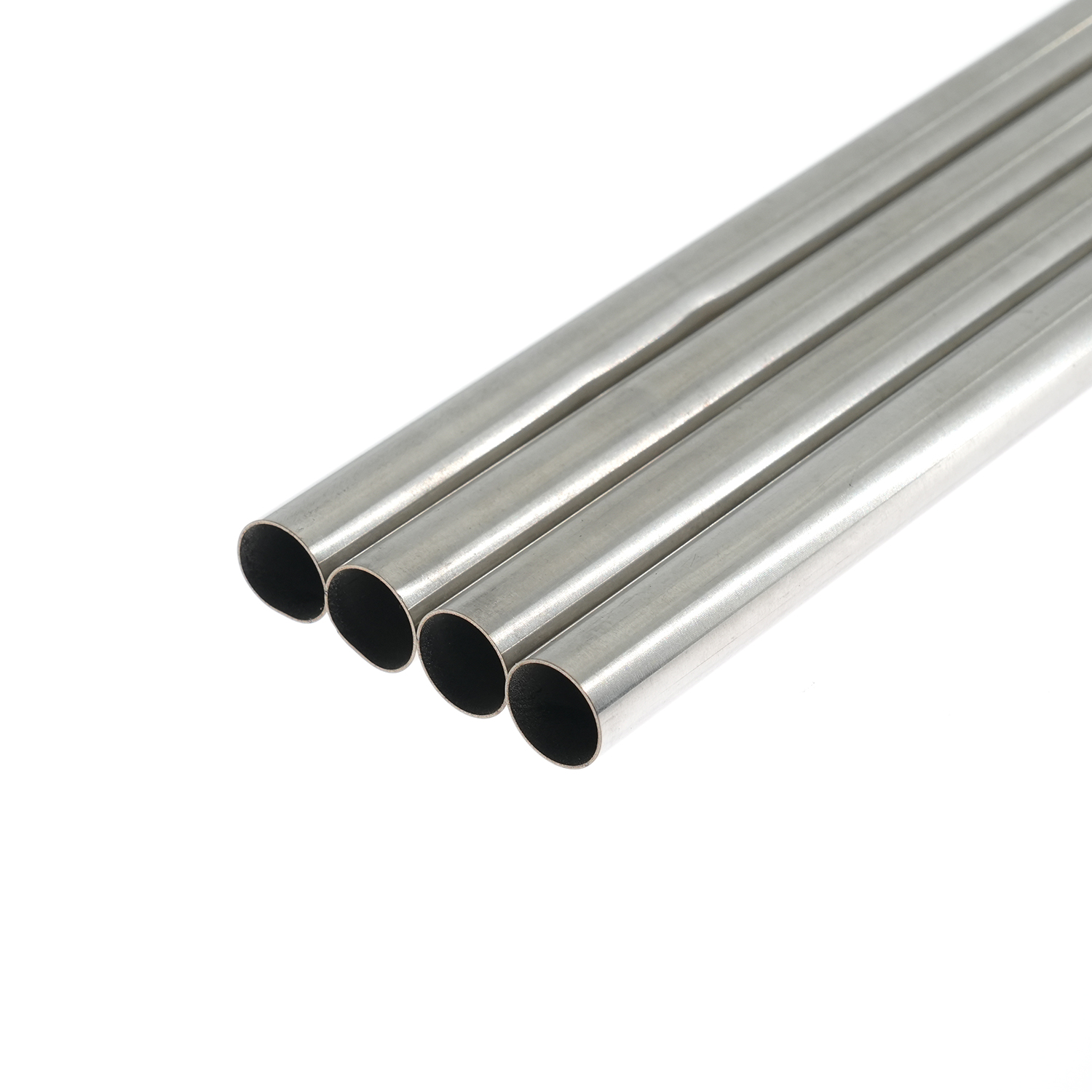

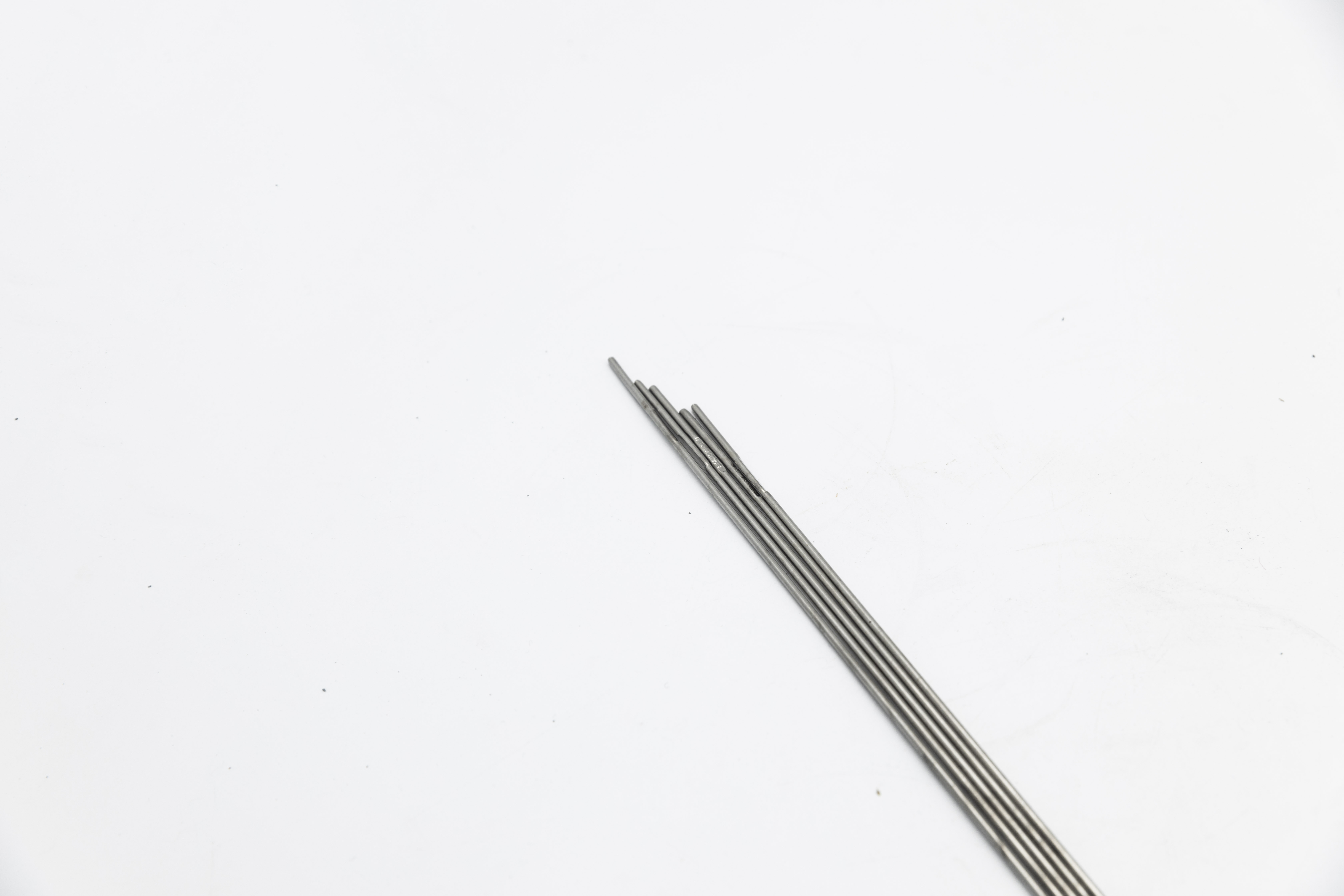

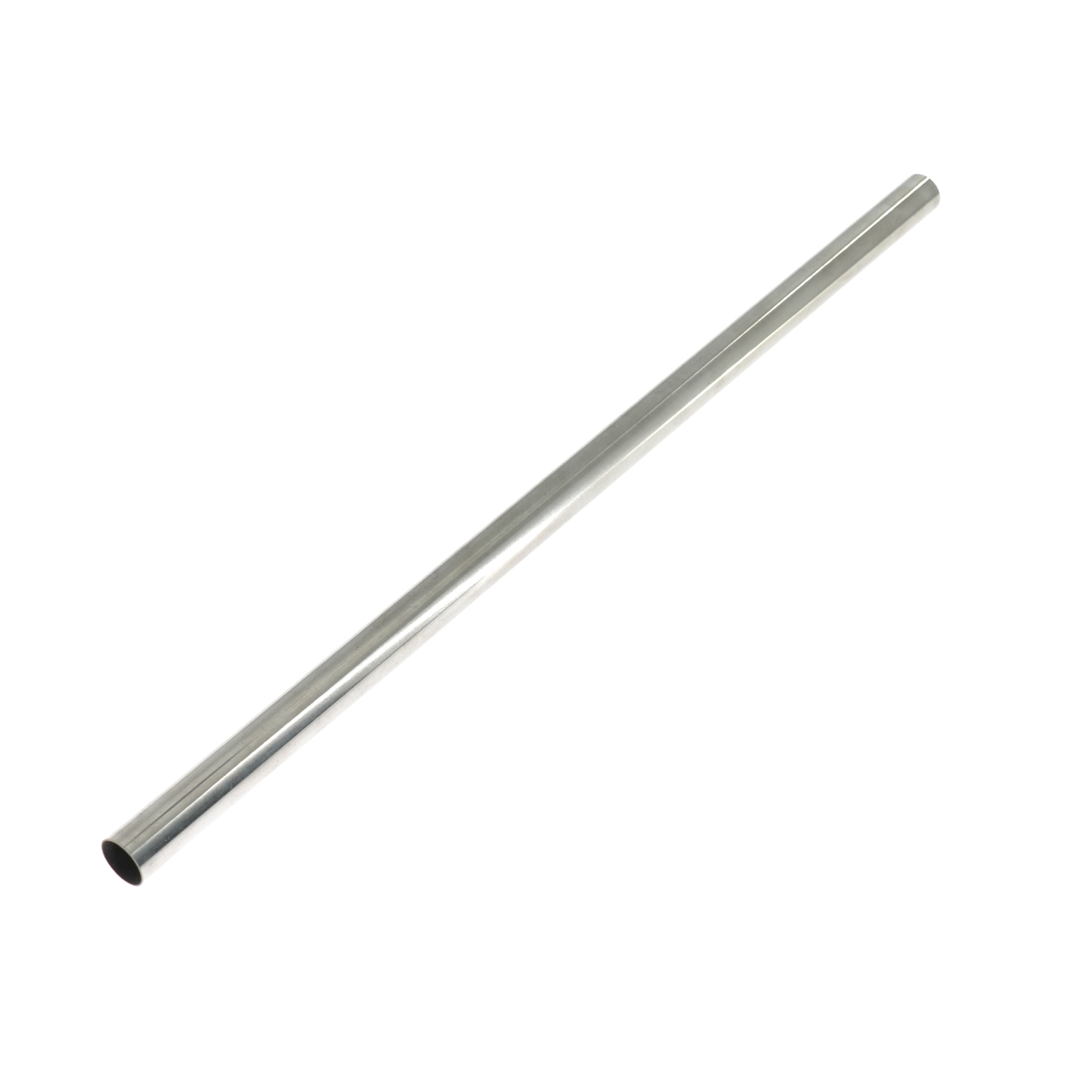

What is Nitinol Tube?
Nitinol, an alloy composed mainly of nickel and titanium, has revolutionized the design of medical devices, particularly in the field of cardiovascular treatment. Known for its exceptional flexibility, shape-memory characteristics, and biocompatibility, Nitinol tubing is widely used in critical medical devices such as heart pacemaker electrodes and other precision components. This advanced material offers unmatched durability and performance in demanding medical environments, ensuring both patient safety and the long-term reliability of devices.
Tubing Actual Performance Af Temperature | For finished tubes with an outer diameter of 0.25-9.0mm, after cutting a section of the tube, the actual recovery temperature can be tested using the bending recovery method specified in ASTM F2082/F2082M-16. |
| Surface Condition | Outer Surface: Oxidized state, ground state Inner Surface: Clean state |
| Tubing Length | Length can be precisely specified or arbitrarily specified; for arbitrary lengths, the maximum and minimum lengths can be negotiated with sales or technical personnel. |
| Straightness | The requirements and test methods for straightness can be agreed upon with sales or technical personnel. |
| Internal and External Surface Defects | The requirements for surface defects can be agreed upon with sales or technical personnel. |
| Typical Applications | Medical: Hypo tubes, camera tubes, stents, baskets, catheters |
Features of Nitinol Tube
Shape Memory Effect
One of the most remarkable features of Nitinol tubing is its ability to return to a pre-set shape when heated. This shape memory effect allows for the design of smaller, more compact pacemakers and electrodes, with the tubing easily adapting to different shapes as required by the medical device.Superelasticity
Nitinol exhibits superelasticity, meaning it can withstand large amounts of deformation without permanent damage. This makes it an ideal material for heart pacemaker electrodes, where the tubing must flex and bend without losing its structural integrity.Corrosion Resistance
Nitinol is highly resistant to corrosion, making it safe for long-term implantation in the human body. This resistance to corrosion and biological degradation ensures that medical devices maintain their functionality over extended periods, reducing the need for maintenance or replacement.Biocompatibility
Nitinol is biocompatible, meaning it is non-toxic and well-tolerated by the body. This property is crucial in medical applications, as it minimizes the risk of adverse reactions when the material is implanted in patients.Durability and Strength
Nitinol tubing is incredibly strong yet flexible. The combination of these two properties allows it to perform well under stress, making it ideal for use in heart pacemakers and other medical devices where both flexibility and strength are required.
Pipe specifications
| Tubing Inner Diameter (mm) | Wall Thickness (mm) | Tolerance Range (mm) | Length (mm) |
| 9-4 | 4-0.5 | ±0.035 | 500 |
| 4-2 | 0.5-0.2 | ±0.030 | 500 |
| 2-1 | 0.3-0.15 | ±0.020 | Above 1000 |
| 1-0.5 | 0.2-0.1 | ±0.010 | 1000-2000 |
| 0.5-0.25 | 0.1-0.05 | ±0.005 | 1000-2000 |
*Can be adjusted according to customer requirements
Advantages of Nitinol Tube
Precision and Customization
Nitinol tubing can be precisely engineered to meet the exact specifications of any medical device. Whether it’s for electrodes in pacemakers or for other components in complex medical equipment, the tubing can be tailored for a perfect fit, offering better performance and easier integration.Reduced Risk of Complications
Thanks to its high biocompatibility and non-reactive nature, Nitinol reduces the likelihood of complications in long-term medical applications. This makes it particularly suitable for implantation in the human body, where rejection or irritation from foreign materials can be a significant concern.Improved Device Longevity
The durability and resistance to corrosion ensure that devices using Nitinol tubing have a longer operational life. This reduces the frequency of replacement procedures for patients, providing a better quality of life and lower healthcare costs.Enhanced Performance in Critical Applications
Whether used in pacemaker electrodes or other medical devices, Nitinol tubing’s unique properties enable enhanced performance under critical conditions. It can handle extreme environmental factors such as temperature changes, mechanical stress, and biological exposure, ensuring devices continue functioning optimally.Versatility Across Medical Applications
In addition to heart pacemaker electrodes, Nitinol tubing is suitable for a wide range of other medical devices, including stents, catheter systems, and orthopedic implants. Its versatility allows it to serve multiple roles in the medical industry, providing a consistent and reliable material solution.
Applications of Nitinol Tube
Heart Pacemaker Electrodes
Nitinol tubing is essential in the design of heart pacemaker electrodes. Its flexibility and shape memory capabilities allow pacemaker leads to be minimally invasive and highly reliable, ensuring accurate heart rate regulation in patients with cardiovascular issues.Stents and Catheters
Nitinol is frequently used in the manufacture of stents and catheters, where flexibility and strength are critical. Its superelasticity ensures that stents can expand and contract without breaking, while its corrosion resistance ensures longevity in the bloodstream.Orthopedic Implants
Nitinol tubing is also used in various orthopedic implants, including bone fixation devices and joint replacements. Its strength, biocompatibility, and flexibility make it an ideal choice for these applications, ensuring optimal patient outcomes.Surgical Instruments
Nitinol tubing is increasingly being incorporated into surgical instruments, including those used in minimally invasive procedures. Its flexibility and resistance to corrosion make it a reliable material for instruments that need to endure harsh conditions while maintaining precision.Other Medical Devices
The versatility of Nitinol tubing extends beyond pacemakers and stents. It is increasingly being used in other devices like prosthetics, hearing aids, and precision instruments, where high performance and biocompatibility are essential.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

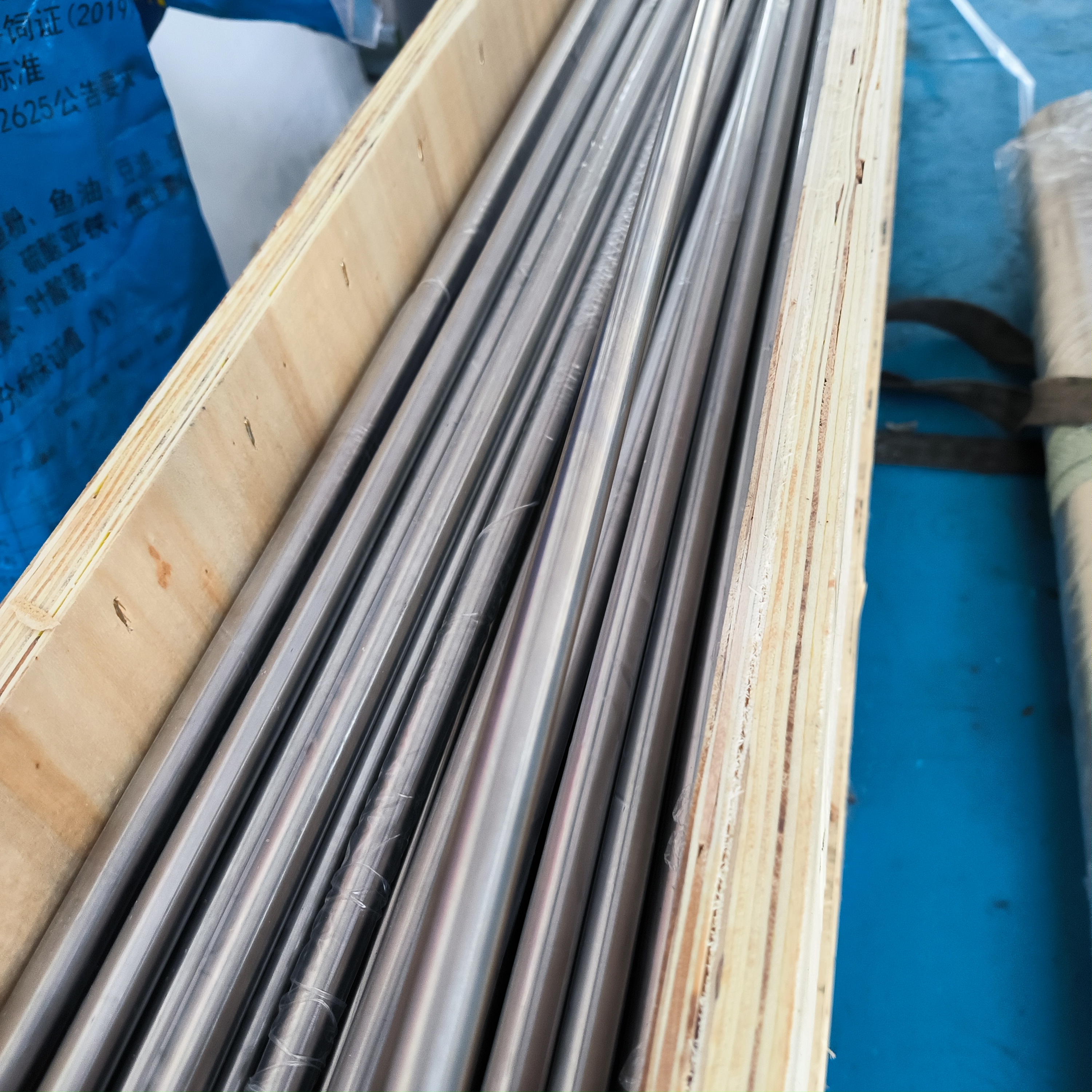

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What is Nitinol tubing, and why is it used in medical devices?
Nitinol is a nickel-titanium alloy known for its shape memory and superelasticity. It is used in medical devices due to its biocompatibility, corrosion resistance, and flexibility, making it ideal for applications like pacemaker electrodes and stents.What are the advantages of using Nitinol tubing in pacemakers?
Nitinol tubing allows pacemakers to be more compact and flexible, reducing the risk of complications. Its durability and shape-memory effect also enhance the performance and longevity of pacemaker electrodes.How is Nitinol tubing manufactured?
A3: Nitinol tubing is produced through a combination of precision machining, heat treatments, and cold working processes. The material is carefully shaped to meet the specific requirements of each medical device.Is Nitinol tubing safe for long-term use in the human body?
Yes, Nitinol is highly biocompatible, making it safe for long-term implantation in the human body. Its resistance to corrosion and biological degradation ensures it remains stable within the body over extended periods.
