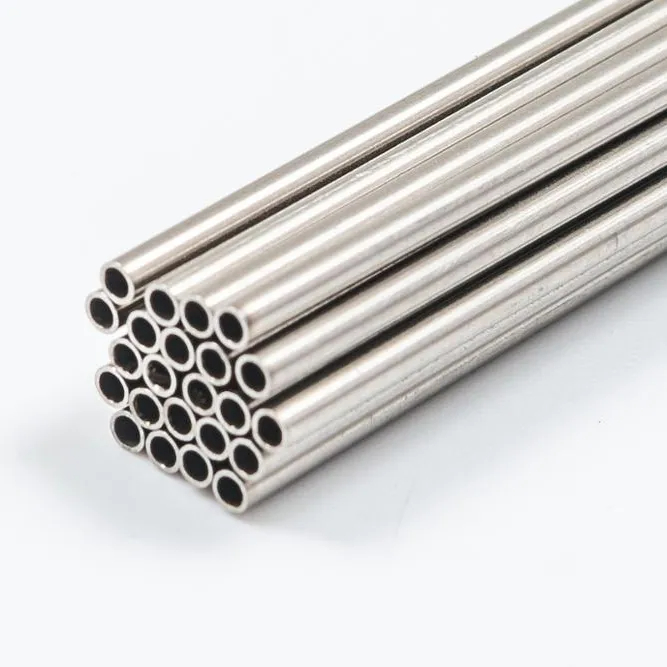

What is Nitinol Tube?
In the field of advanced medical devices, Nitinol has emerged as the material of choice for applications requiring exceptional performance, flexibility, and biocompatibility. Precision Nitinol tubing is increasingly used in neurological electrodes and implantable sensors, offering unparalleled benefits in the design and function of these critical devices. By combining the unique properties of Nitinol—such as its superelasticity, shape memory, and corrosion resistance—this material ensures that neurological implants can adapt to the body’s dynamic environment, delivering long-term, reliable performance.
Tubing Actual Performance Af Temperature | For finished tubes with an outer diameter of 0.25-9.0mm, after cutting a section of the tube, the actual recovery temperature can be tested using the bending recovery method specified in ASTM F2082/F2082M-16. |
| Surface Condition | Outer Surface: Oxidized state, ground state Inner Surface: Clean state |
| Tubing Length | Length can be precisely specified or arbitrarily specified; for arbitrary lengths, the maximum and minimum lengths can be negotiated with sales or technical personnel. |
| Straightness | The requirements and test methods for straightness can be agreed upon with sales or technical personnel. |
| Internal and External Surface Defects | The requirements for surface defects can be agreed upon with sales or technical personnel. |
| Typical Applications | Medical: Hypo tubes, camera tubes, stents, baskets, catheters |
Features of Nitinol Tube
Shape Memory and Flexibility
One of the standout features of Nitinol tubing is its ability to revert to a pre-determined shape when exposed to heat. This "shape memory effect" is ideal for neurological electrodes, allowing the tubing to conform precisely to the anatomical contours of the brain or spinal cord, improving electrode placement and minimizing patient discomfort.Superelasticity for Enhanced Durability
Nitinol tubing exhibits superelasticity, meaning it can bend and stretch significantly without losing its structural integrity. This makes it perfect for neurological applications where the electrode or sensor must navigate through delicate tissues while maintaining its strength and flexibility over time.Corrosion Resistance for Longevity
Nitinol is highly resistant to corrosion, even in the challenging biological environments inside the human body. This makes it an excellent choice for implantable sensors and electrodes, as it ensures that the device remains functional and free from degradation over extended periods.Biocompatibility for Safe Implantation
Nitinol is biocompatible, which means it does not elicit a toxic or immune response when implanted in the body. This property is crucial for long-term medical implants, such as neurological electrodes and sensors, ensuring that patients experience no adverse reactions during or after implantation.Precision Manufacturing for Custom Solutions
Nitinol tubing can be precisely manufactured to meet the exacting standards of each neurological device. Customizations, such as diameter, length, and flexibility, can be tailored to fit the specific requirements of the neurological electrodes or implantable sensors, allowing for highly personalized medical solutions.
Pipe specifications
| Tubing Inner Diameter (mm) | Wall Thickness (mm) | Tolerance Range (mm) | Length (mm) |
| 9-4 | 4-0.5 | ±0.035 | 500 |
| 4-2 | 0.5-0.2 | ±0.030 | 500 |
| 2-1 | 0.3-0.15 | ±0.020 | Above 1000 |
| 1-0.5 | 0.2-0.1 | ±0.010 | 1000-2000 |
| 0.5-0.25 | 0.1-0.05 | ±0.005 | 1000-2000 |
*Can be adjusted according to customer requirements
Advantages of Nitinol Tube
Improved Patient Comfort
The flexibility and biocompatibility of Nitinol reduce the risk of irritation or discomfort during long-term implantation. The superelastic properties allow the tubing to adjust to movement within the body, enhancing patient comfort and minimizing the risk of device migration or malfunction.High-Performance in Challenging Environments
Neurological devices, particularly those involving the brain or spinal cord, are subject to challenging conditions, such as motion, temperature fluctuations, and biological fluids. Nitinol’s durability ensures the tubing can withstand these environmental factors without compromising its performance, making it ideal for implantable electrodes and sensors.Enhanced Device Longevity
Nitinol’s resistance to corrosion and mechanical wear ensures that neurological implants have a longer lifespan, reducing the frequency of replacement surgeries. This translates to better overall healthcare outcomes and a reduced burden on the healthcare system.Compact and Reliable Design
With the ability to bend and return to its original shape, Nitinol allows for smaller, more compact designs for electrodes and sensors. This results in devices that are not only more precise but also less invasive, leading to quicker recovery times and fewer complications.Versatile Application Across Medical Disciplines
In addition to its use in neurological applications, Nitinol tubing is also used in a wide range of other medical devices, such as cardiovascular implants and orthopedics. Its versatility makes it a universal solution across various fields of medicine, offering high performance wherever it is needed.
Applications of Nitinol Tube
Neurological Electrodes
Nitinol tubing is increasingly used in the design of neurological electrodes. The tubing’s flexibility and shape memory allow it to conform to the complex structures of the brain and spinal cord, ensuring accurate signal transmission and minimal risk of displacement over time.Implantable Sensors for Brain Activity Monitoring
Implantable sensors that monitor brain activity rely on Nitinol tubing to maintain their position and function within the brain. The material’s biocompatibility and flexibility allow sensors to remain in place for long periods, providing continuous and reliable data for both diagnostic and therapeutic purposes.Deep Brain Stimulation (DBS) Systems
Deep brain stimulation, a treatment for conditions like Parkinson’s disease, benefits from Nitinol tubing’s precision and durability. Nitinol allows for precise electrode placement and ensures that the system remains functional despite the dynamic forces present within the body.Spinal Cord Stimulators
Spinal cord stimulators that help manage chronic pain often rely on Nitinol tubing for the same reasons. The flexibility and strength of the tubing make it well-suited to handle the stresses placed on these devices during implantation and while in use.Neuroprosthetics and Wearable Devices
Nitinol tubing is also used in the manufacture of neuroprosthetics and wearable brain-computer interfaces (BCIs). The precision and minimal invasiveness of Nitinol tubing ensure that these devices are both functional and comfortable for the user, particularly for those requiring long-term use.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.
Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What is precision Nitinol tubing, and how does it benefit neurological devices?
Precision Nitinol tubing is a highly flexible and durable material used in the design of neurological electrodes and implantable sensors. It offers superior biocompatibility, corrosion resistance, and the ability to adapt to dynamic body conditions, making it ideal for long-term implantation.How does Nitinol tubing improve the performance of neurological electrodes?
Nitinol tubing provides flexibility, shape memory, and superelasticity, allowing electrodes to conform to the brain or spinal cord and stay securely in place. This results in more accurate signal transmission and reduces the risk of electrode displacement.Is Nitinol safe for long-term implantation in the human body?
Yes, Nitinol is biocompatible and has been used safely in a wide range of medical implants. Its resistance to corrosion and biological degradation ensures it remains safe and effective for long-term use inside the human body.Can Nitinol tubing be customized for different medical applications?
Absolutely. Nitinol tubing can be precisely manufactured to meet the specific requirements of different devices, including adjusting its diameter, length, and flexibility to ensure the best fit for neurological electrodes or implantable sensors.
