What is Nitinol Wire?
Nitinol memory wire, made from an alloy of nickel and titanium, is well known for its unique ability to return to a predefined shape when heated, making it ideal for use in both medical and industrial applications. This “shape memory” and superelastic property makes Nitinol wire an outstanding choice for a wide range of high-performance applications that require flexibility, strength, and durability.
Whether it's for medical devices such as stents, guidewires, or precision industrial components, Nitinol offers exceptional reliability and versatility. As a trusted supplier, we provide high-quality Nitinol memory wire with custom solutions tailored to meet your specific needs.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

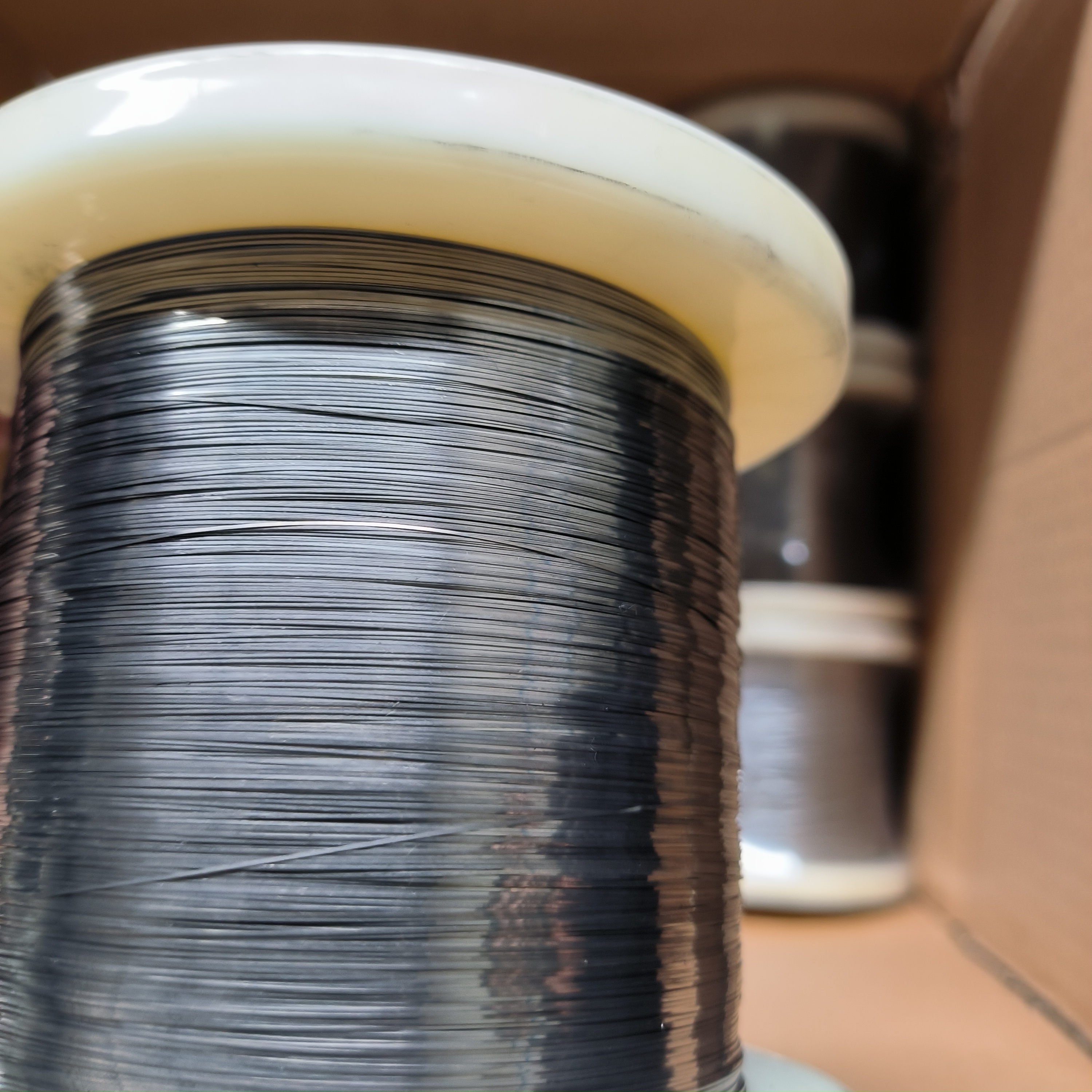

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Shape Memory Effect: Nitinol wire has the unique ability to "remember" its original shape when exposed to heat. This feature is crucial for medical devices such as stents, guidewires, and catheters, which need to expand or contract in response to body temperature, providing optimal performance inside the human body.
Superelasticity: Nitinol's superelasticity allows it to bend and flex under stress without permanent deformation, ensuring flexibility in medical applications. This is especially beneficial for minimally invasive procedures, where the device must navigate narrow pathways while retaining strength.
Biocompatibility: Being highly biocompatible, Nitinol is ideal for use in implants and devices that are in direct contact with the human body. This reduces the risk of allergic reactions or irritation, making it safe for long-term use in medical applications.
Corrosion Resistance: Nitinol’s resistance to corrosion ensures that medical devices remain durable and effective over time, even in the harsh biological environments of the human body. This longevity helps reduce the need for replacements or adjustments.
Strength-to-Weight Ratio: Nitinol offers a high strength-to-weight ratio, making it ideal for creating compact yet strong medical devices, such as guidewires, where space and weight are essential considerations.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Versatility: Nitinol’s shape memory and superelastic properties make it a perfect choice for a variety of industrial applications. It is used in precision components such as actuators, sensors, and couplings, offering high performance in sectors like aerospace, robotics, and automotive industries.
Long-Term Durability: In industrial settings, durability is key. Nitinol’s resistance to corrosion, wear, and fatigue makes it ideal for components that need to withstand harsh conditions, such as temperature fluctuations or heavy mechanical stress.
Precision and Flexibility: Nitinol wire is used in components that require both precision and flexibility. This is particularly important in industries where devices must operate in tight spaces or adapt to changing environmental conditions without compromising performance.
Energy Efficiency: The low-energy operation of Nitinol’s shape memory effect makes it ideal for energy-efficient systems, such as self-actuating devices or temperature-sensitive switches used in industrial automation.
Cost-Effectiveness: While Nitinol may have a higher upfront cost, its long-term durability and reliability can lead to savings by reducing maintenance needs and extending the lifespan of industrial components.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |
Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Medical Devices: Nitinol is widely used in the production of stents, guidewires, orthodontic wires, and catheters, where its shape memory properties are crucial for the functionality of these devices inside the human body.
Aerospace & Automotive: Nitinol is utilized in high-performance applications such as actuators, couplings, and sensors in aerospace and automotive industries, where its flexibility and ability to withstand high stress are essential.
Consumer Electronics: Nitinol is also used in specialized consumer electronics like microswitches, where its adaptability and small size are vital for ensuring high efficiency and durability.
Robotics: In robotics, Nitinol is used in actuators and mechanisms that require flexibility and strength to operate in a variety of dynamic environments, making it an essential material for soft robotics.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

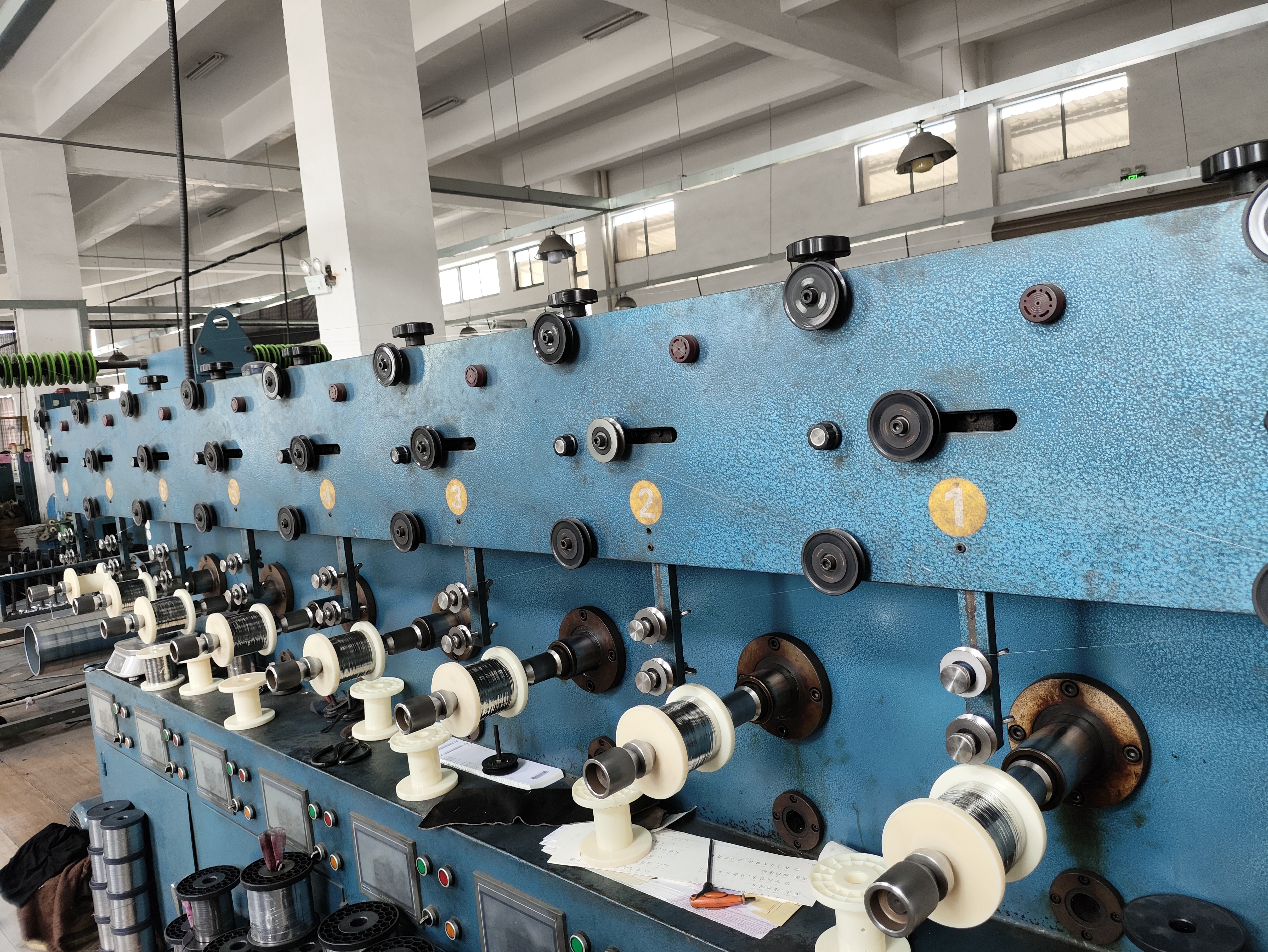

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
How does Nitinol work in medical devices?
Nitinol wire responds to heat by returning to a predetermined shape. This property is ideal for devices like stents and guidewires that need to expand or contract inside the body based on temperature changes.
What are the benefits of using Nitinol wire in industrial applications?
Nitinol offers excellent durability, flexibility, and precision, making it ideal for high-performance industrial applications, such as sensors, actuators, and couplings, where reliability is critical.
Can you customize Nitinol wire for specific applications?
Yes, we offer tailored Nitinol wire solutions designed to meet the exact specifications required for your medical or industrial applications, ensuring optimal performance.
