Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO 9001
Model Number: Nimonic 75
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Nimonic 80A |
Material: |
Nickel Chromium |
Density: |
8.37g/cm³ |
Melting Point: |
1380°C |
Coefficient Of Expansion: |
11.0 μm/m °C (20 – 100°C) |
Annealed: |
700 – 800N/mm² |
Spring Temper: |
1200 – 1500N/mm² |
Product Name: |
Nimonic 80A |
Material: |
Nickel Chromium |
Density: |
8.37g/cm³ |
Melting Point: |
1380°C |
Coefficient Of Expansion: |
11.0 μm/m °C (20 – 100°C) |
Annealed: |
700 – 800N/mm² |
Spring Temper: |
1200 – 1500N/mm² |

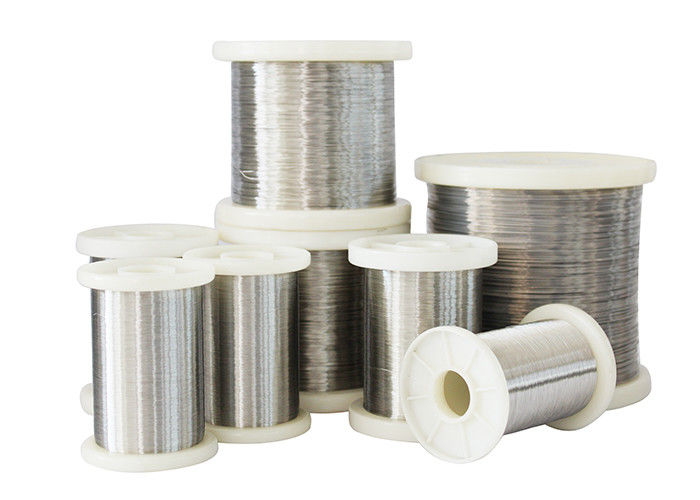

High Temperature Alloy Nimonic80A Wire For Manufacture Of Bolts
Nimonic80A High Temperature Nickel Alloy
Alloy 80A (Nimonic alloy 80A) is a wrought, age-hardenable nickel-chromium alloy. Alloy 80A is similar to alloy75 but made precipitation hardenable by additions of aluminium and titanium. Alloy 80A has good corrosion and oxidation resistance and high tensile and creep-rupture properties at temperatures to 815ºC (1500ºF). Vacuum refined versions are also available. Alloy 80A is used for gas-turbine components (blades, rings, discs), bolts, tube supports in nuclear generators, exhaust valves in internal combustion engines and has many other offshore/marine, automotive and electrical applications.
Application: Ships, tanks with diesel exhaust valve mainly made of wrought Nimonic 80A. Nimonic 80A has high heat resistance, high strength at high temperatures, deformation resistance, increasing the difficulty of forging suitable for the manufacture of bolts, combustion chamber exhaust valve.
| Alloy 80A Rod, Bar, Wire and Forging Stock | BS 3076 HR1, ASTM B 637, AECMA PrEn2188, AECMA PrEn2189, AECMA PrEn 2190, AECMA PrEn 2396, AECMA PrEn2397, AIR 9165-37 |
| Alloy 80A Plate, Sheet and Strip | BS HR 201, AECMA PrEn2191 |
| Alloy 80A Pipe and Tube | BS HR 401 |
| Alloy 80A Other | BS HR 601, BS HR1, DIN 17742, AFNOR NC 20TA, UNS N07080, Werkstoff Nr 2.4952, Werkstoff Nr 2.4631, NIMONIC 80a (trademark), MSRR 7095 and MSRR 7011, MSRR 7013, HR201, HR401, HR601, NA20, VAT80A |
Nimonic 80A Chemical Composition
| Grade | % | Ni | Cr | Fe | Mn | Si | P | S | Al | Ti | C | Co | B | Zr | Cu |
| Nimonic 80A | Min. | Bal. | 18 | 1.0 | 1.8 | ||||||||||
| Max. | 21 | 3.0 | 1.0 | 1.0 | 0.02 | 0.015 | 1.8 | 2.7 | 0.1 | 2.0 | 0.008 | 0.15 | 0.2 |
Physical properties
> Density (g/cm3): 8.19
> Melting point (℃): 1320~1365
Mechanical properties
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation, % | Hardness, HB | ||
| Nimonic 80A | Solution treatment | 620 | 930 | ≤20 |
