Home > products > Incoloy Alloy > ASTM B163 Heating Resistance Alloy Incoloy 800/825/925/800H/800HT Seamless Tube

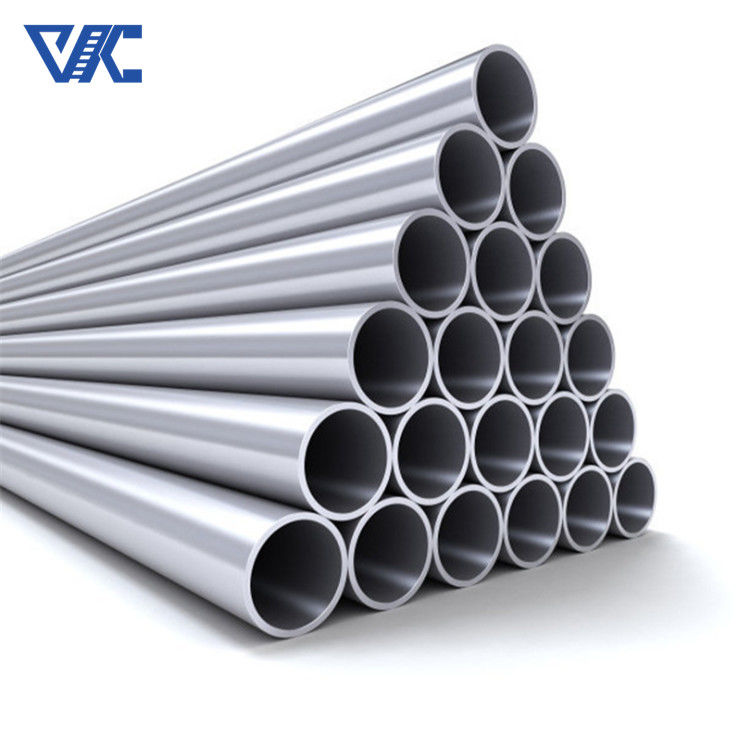

ASTM B163 Heating Resistance Alloy Incoloy 800/825/925/800H/800HT Seamless Tube

Product Details

Place of Origin: China

Brand Name: Victory

Certification: CE,ROHS,ISO 9001

Model Number: Incoloy 800,800H,800HT,825,925

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 5 Kg

Price: 30 - 499 kilograms $48.90

Packaging Details: Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Product Details
Highlight:

ASTM B163 Incoloy Alloy

,

825 Incoloy Alloy

,

800HT Seamless Tube

Product Name:
Incoloy Tube
Material:
Ni Fe Cr
Nickel(Min):
72%
Resistance (μΩ.m):
1.15
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
500
Elongation (≥ %):
35%
Density (g/m3):
8.4 G/cm3
Surface:
Bright
Size:
Customized
Processing Service:
Decoiling,Cutting,Bending
Application:
Aerospace Industry,Chemical Processing
Product Name:
Incoloy Tube
Material:
Ni Fe Cr
Nickel(Min):
72%
Resistance (μΩ.m):
1.15
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
500
Elongation (≥ %):
35%
Density (g/m3):
8.4 G/cm3
Surface:
Bright
Size:
Customized
Processing Service:
Decoiling,Cutting,Bending
Application:
Aerospace Industry,Chemical Processing
Product Description

ASTM B163 Heating Resistance Alloy Incoloy 800/825/925/800H/800HT Seamless Tube 0

Incoloy alloy is characterised by high temperature resistance combined with excellent corrosion resistance.It has excellent corrosion resistance,high strength,easy to fabricate.It can be found in a wide range of product forms across many industries.



Incoloy 800HT has excellent resistance in chemicals containing sulfuric acid, and has good resistance to environments containing chlorides, phosphoric acid and nitric acid. It contains niobium for stabilization against sensitization and resultant intergranular corrosion. It also has good mechanical properties and fabricability.


Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm

Incoloy series:800,800H,800HT,825



Item
800
800H
800HT
825
925
C
≤0.1
0.05-0.1
0.06-0.1
≤0.05
≤0.03
Mn
≤1.5
≤1.5
≤1.5
≤1
≤1
Fe
rest
rest
rest
rest
rest
P
--
--
--
≤0.02
≤0.03
S
≤0.015
≤0.015
≤0.015
≤0.03
≤0.03
Si
≤1
≤1
≤1
≤0.5
≤0.5
Cu
≤0.75
≤0.75
≤0.75
1.5-3
1.5-3
Ni
30-35
30-35
30-35
38-46
42-46
Al
0.15-0.6
0.15-0.6
0.15-0.6
0.2-1
0.15-0.5
Ti
0.15-0.6
0.15-0.6
0.15-0.6
0.6-1.2
1.9-2.4
Cr
19-23
19-23
19-23
19.5-23.5
19.5-23.5
Mo
--
--
--
2.5-3.5
2.5-3.5

ASTM B163 Heating Resistance Alloy Incoloy 800/825/925/800H/800HT Seamless Tube 1ASTM B163 Heating Resistance Alloy Incoloy 800/825/925/800H/800HT Seamless Tube 2ASTM B163 Heating Resistance Alloy Incoloy 800/825/925/800H/800HT Seamless Tube 3

Incoloy alloy tubes are a type of high-performance nickel-chromium-based alloy, which possesses excellent corrosion resistance, high-temperature strength, and good mechanical properties. They are widely used in various fields, including:
1. Petrochemical industry: Incoloy alloy tubes are commonly used in the petrochemical industry for heat exchangers, reboilers, and distillation columns. They can withstand high-temperature and high-pressure environments, as well as corrosive media such as sulfuric acid and hydrofluoric acid.
2. Power generation industry: Incoloy alloy tubes are used in the power generation industry to manufacture boilers, superheaters, reheaters, and steam pipes. They can withstand high-temperature and high-pressure steam environments and resist oxidation and corrosion.
3. Aerospace industry: Incoloy alloy tubes are used in the aerospace industry for various applications, including aircraft engines, rocket engines, and other high-temperature and high-stress environments.
4. Nuclear energy industry: Incoloy alloy tubes are used in nuclear power plants to manufacture fuel elements, control rods, and other components that require high-temperature strength and corrosion resistance.
5. Food processing industry: Incoloy alloy tubes are suitable for use in the food processing industry as they are non-toxic and resistant to corrosion from various food acids and alkalis.
In summary, incoloy alloy tubes are a versatile material with a wide range of applications in various industries that require high-temperature strength, corrosion resistance, and good mechanical properties.
