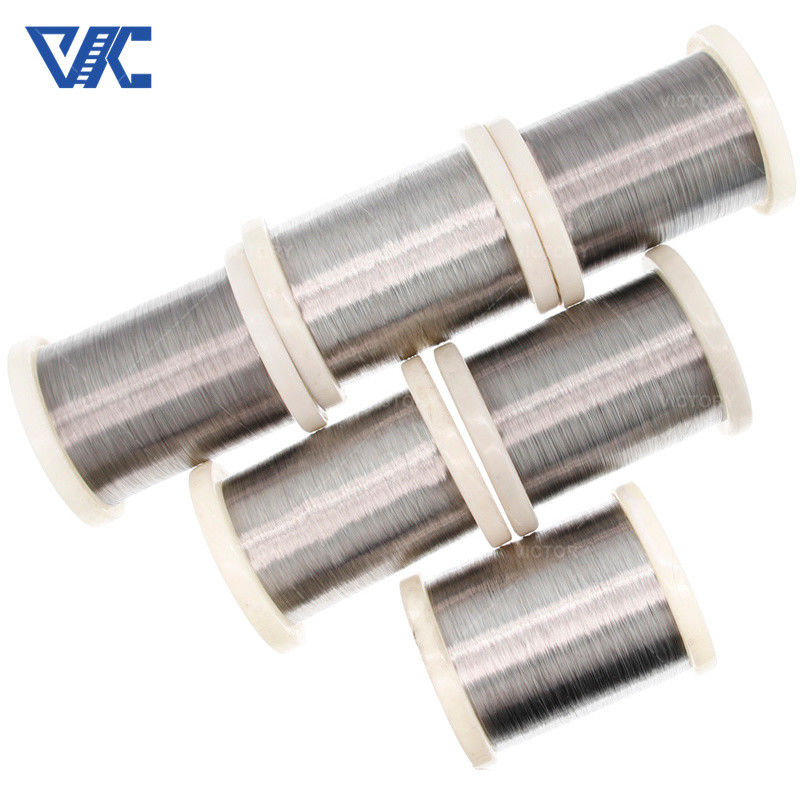

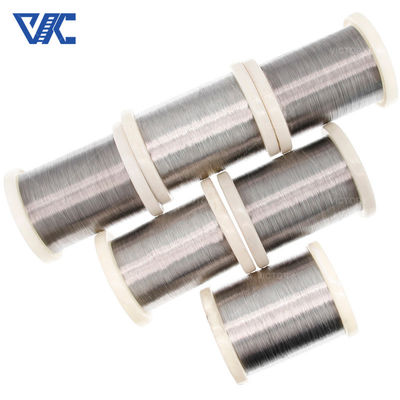

Biological Engineering Incoloy Alloy 825 Wire With Excellent Mechanical Properties

Introduction:

Incoloy 825 Wire is an alloy wire composed of elements such as nickel, iron, chromium and molybdenum. This alloy wire is suitable for applications such as culture tanks, centrifuges and biosensors.

Key parameters include a nickel content between 38-46% and a density of 8.14 g/cm3. Its linear expansion coefficient is 14.0 μm/m·C (in the range of 20-100 °C), its stiffness modulus is 75.9 kN/mm2, and its elastic modulus is 196 kN/mm2. In addition, the alloy wire has an elongation of more than 30%, a tensile strength of 550 MPa, and a yield strength of 220 MPa.

Incoloy 825 Wire is widely used in applications such as culture tanks, centrifuges and biosensors. It has excellent corrosion resistance and high temperature stability, and can withstand chemical environments and high temperature conditions. The alloy wire can be used to manufacture corrosion-resistant containers, centrifuge parts, electrodes and connecting wires for biosensors, etc., providing reliable material solutions for the fields of bioprocessing and life sciences.

To sum up, Incoloy 825 Wire is an alloy wire widely used in culture tanks, centrifuges, biosensors and other fields. With its excellent physical and mechanical properties, as well as corrosion resistance and high temperature stability, it can meet the needs of bioprocessing and life science fields and provide reliable material support for related applications.

Parameter:

Shape Size(mm) Wire 0.5-7.5 Rod/Bar 8.0-200 Strip (0.5-2.5)*(5-180) Tube custom made Plate custom made

Characteristic:

• Corrosion resistance: Incoloy 825 alloy wire exhibits excellent corrosion resistance and can resist corrosion of biological fluids, chemicals and oxidizing media on bioengineering equipment.
• Biocompatibility: This alloy wire has good biocompatibility, is non-toxic and non-irritating to biological tissues, and will not cause allergies or rejection reactions.
• Temperature stability: Incoloy 825 alloy wire has good high-temperature stability and can withstand the stress and pressure in high-temperature environments during bioengineering processes.
• Strength and hardness: Incoloy 825 alloy wire has high strength and hardness and is suitable for manufacturing mechanical components in bioengineering equipment.


Advantage:

• Corrosion resistance: Incoloy 825 alloy wire has excellent corrosion resistance in bioengineering, which can extend the service life of equipment and improve its stability and reliability.
• Biocompatibility: This alloy wire has good biocompatibility, which can reduce adverse effects on organisms and make bioengineering equipment safer and more reliable.
• Temperature adaptability: Incoloy 825 alloy wire is able to maintain its performance over a wide temperature range and is suitable for different temperature conditions in bioengineering processes.
• Excellent mechanical properties: Incoloy 825 alloy wire has good strength and hardness and can withstand the mechanical stress and pressure in bioengineering equipment, improving the reliability of the equipment.


Specific applications:

1. Bioreactors and culture tanks: Incoloy 825 alloy wire can be used to manufacture equipment such as bioreactors and culture tanks to resist corrosion of equipment by biological fluids and chemicals, and ensure the stability and controllability of the bioengineering process.
2. Mass Transfer Equipment: Suitable for manufacturing mass transfer equipment such as membrane separators and centrifuges to provide corrosion resistance and temperature stability.
3. Biosensors and Probes: Can be used to manufacture biosensors and probes for the detection and monitoring of biomolecules and chemicals in bioengineering processes.


Other relevant knowledge points:

Cleaning and Disinfection: In bioengineering equipment manufactured with Incoloy 825 alloy wire, proper cleaning and disinfection procedures are crucial to ensure their hygiene and safety.
Standards and specifications: During the manufacturing process of bioengineering equipment, follow applicable standards and specifications, such as cGMP (Good Manufacturing Practice), etc., to ensure product quality and compliance.

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Q & A:

Q: Can Incoloy 825 Wire be customized to specific requirements?

A: Yes, Incoloy 825 Wire can be customized to meet specific requirements. This includes customization of wire diameter, length, surface finish, and even the production of custom wire profiles or shapes to suit the unique needs of different applications.

Q: What is the lead time for customizing Incoloy 825 Wire?

A: The lead time for customizing Incoloy 825 Wire may vary depending on the specific customization requirements and the order volume. It is recommended to contact the manufacturer or supplier to discuss the customization details and obtain an accurate estimate of the lead time.
