Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: Incoloy 825
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5 Kg
Price: Negotiable
Packaging Details: Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Incoloy 825 Wire |
Material: |
Ni Fe Cr Mo |
Nickel(Min): |
38-46% |
Application: |
Pipes And Valves, Petroleum Refining Equipment, Oil Well Equipment |
Coefficient Of Expansion: |
14.0 μm/m °C (20 – 100°C) |
Modulus Of Rigidity: |
75.9 KN/mm² |
Density (g/m3): |
8.14 G/cm3 |
Modulus Of Elasticity: |
196 KN/mm² |
Elongation (≥ %): |
30% |
Melting Point: |
1400°C |
Tensile Strength: |
550 MPa |
Yield Strength: |
220 MPa |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |
Product Name: |
Incoloy 825 Wire |
Material: |
Ni Fe Cr Mo |
Nickel(Min): |
38-46% |
Application: |
Pipes And Valves, Petroleum Refining Equipment, Oil Well Equipment |
Coefficient Of Expansion: |
14.0 μm/m °C (20 – 100°C) |
Modulus Of Rigidity: |
75.9 KN/mm² |
Density (g/m3): |
8.14 G/cm3 |
Modulus Of Elasticity: |
196 KN/mm² |
Elongation (≥ %): |
30% |
Melting Point: |
1400°C |
Tensile Strength: |
550 MPa |
Yield Strength: |
220 MPa |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |

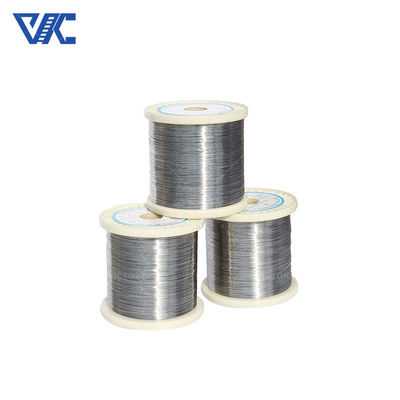

Incoloy 825 Wire is a high performance alloy wire composed of elements such as nickel, iron, chromium and molybdenum. The alloy wire is suitable for pipes and valves, petroleum refining equipment, and oil well equipment.
Key parameters include a nickel content between 38-46% and a density of 8.14 g/cm3. Its linear expansion coefficient is 14.0 μm/m·C (in the range of 20-100 °C), its stiffness modulus is 75.9 kN/mm2, and its elastic modulus is 196 kN/mm2. In addition, the alloy wire has an elongation of more than 30%, a tensile strength of 550 MPa, and a yield strength of 220 MPa.
Incoloy 825 Wire is widely used in applications such as pipes and valves, petroleum refining equipment, and oil well equipment. It has excellent corrosion resistance and high temperature stability and can withstand the corrosive and high temperature environments found in petroleum and petrochemical processes. At the same time, it has good mechanical properties and can meet the requirements of high stress and pressure, ensuring the reliability and durability of equipment operation.
To sum up, Incoloy 825 Wire is a high-performance alloy wire widely used in pipes, valves, petroleum refining equipment, oil well equipment and other fields. With its excellent physical and mechanical properties, it can cope with harsh working conditions and provide reliable material solutions for the petroleum and petrochemical industry.
Parameter:
|
Chemical Composition (%)
|
|||||||||
|
C
|
Si
|
Mn
|
S
|
Mo
|
Ti
|
Cr |
Ni
|
Fe
|
Cu
|
|
≤0.05
|
≤0.50
|
≤1.00
|
≤0.03
|
≤2.5~3.5
|
≤0.6~1.2
|
19.5~23.5
|
38.0~46.0
|
≥22.0
|
1.5~3.0
|
|
Standard
|
|||
|
Sheet/Plate
|
Round bar/Wire
|
Pipe
|
Tube
|
|
ASME SB-424
ASME SB-906
|
ASME SB-425
|
ASME SB-423
ASME SB-829
ASME SB-163
ASME SB-751
ASME SB-775
|
ASME SB-704
ASME SB-705 ASME SB-751 ASME SB-775 |
|
Mechanical Properties
|
||||
|
Status
|
Tensile Strength
(Rm N/mm2)
|
Yield strength
(RP0.2N/mm2)
|
Elongation(A5%)
|
HB
|
|
Solution treatment
|
550
|
220
|
30
|
≤200
|
|
Incoloy 825 (NS142) similiaer trademark
|
|||
|
UNS
|
Trademark
|
JIS
|
W.Nr
|
|
N08825
|
Incoloy825
|
NCF825
|
2.4858
|
Characteristic:
Advantage:
Specific applications:
Other relevant knowledge points:
Material selection: Choosing the right materials is critical to the performance and longevity of oil and gas industry equipment. Incoloy 825 alloy wire is an ideal choice due to its excellent corrosion resistance and high temperature stability.
Equipment Maintenance: Regularly inspect and maintain oil and gas industry equipment and its components, including Incoloy 825 alloy wire, to ensure their performance and longevity and to prevent potential failures.
