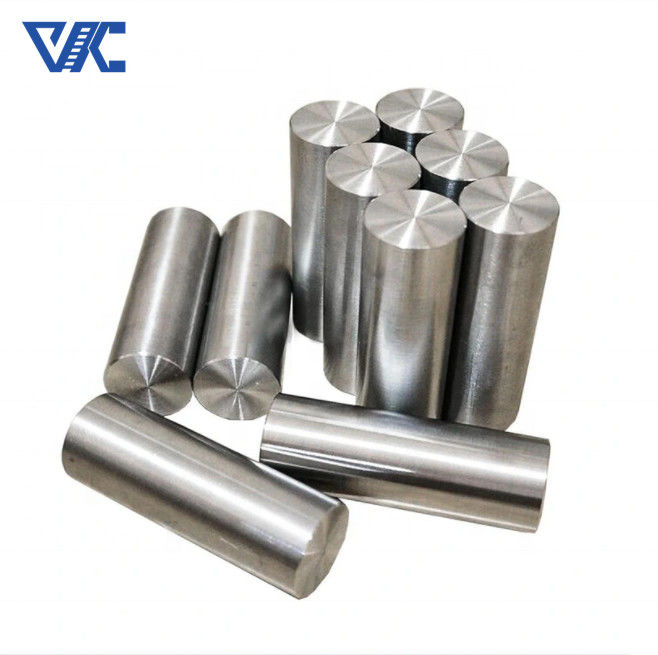

Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar

MOQ: 5 Kg
Price: 50 - 499 kilograms $36.00
Standard Packaging: Incoloy bar is packed into wooden cases.
Special packaging requirements can also be accommodated. OEM is also acceptable
Delivery Period: 7-20 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 300 tons per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Victory
Certification
ISO9001,ROHS
Model Number
Incoloy 800,800H,800HT,825,925
Document
Product Brochure PDF
Product Name:
Nickel Alloy Round Bar
Material:
Iron Nickel Material
Ni (Min):
72%
Resistance (μΩ.m):
1.15
Ultimate Strength (≥ MPa):
965
Elongation (≥ %):
30
Density:
8.2 G/cm3
Powder Or Not:
Not Powder
Sureface:
Bright,Oxided
Application:
Construction, Industry
Size:
Customized Size
Service:
OEM\ODM
Highlight:

Nickel Based Incoloy Alloy 800

,

4mm Nickel Based Incoloy Alloy

Product Description

Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 0Nickel Alloy Incoloy 800h Bar
Incoloy 800HT has excellent resistance in chemicals containing sulfuric acid, and has good resistance to environments containing chlorides, phosphoric acid and nitric acid.
It contains niobium for stabilization against sensitization and resultant intergranular corrosion. It also has good mechanical properties and fabricability.

Incoloy800H is a kind of austenitic heat-resistant alloy which is widely used in high-pressure structures at high temperature.The high strength of 800H alloy is mainly due to the addition of carbon, aluminum and titanium, and annealing at the lowest temperature of 1149 ° c to reach the grain size of ASTM5 or coarser. It has excellent corrosion resistance, stress corrosion resistance and processability in extremely high temperature water-based media up to 500 ℃.



Item
800
800H
800HT
825
925
C
≤0.1
0.05-0.1
0.06-0.1
≤0.05
≤0.03
Mn
≤1.5
≤1.5
≤1.5
≤1
≤1
Fe
rest
rest
rest
rest
rest
P
--
--
--
≤0.02
≤0.03
S
≤0.015
≤0.015
≤0.015
≤0.03
≤0.03
Si
≤1
≤1
≤1
≤0.5
≤0.5
Cu
≤0.75
≤0.75
≤0.75
1.5-3
1.5-3
Ni
30-35
30-35
30-35
38-46
42-46
Al
0.15-0.6
0.15-0.6
0.15-0.6
0.2-1
0.15-0.5
Ti
0.15-0.6
0.15-0.6
0.15-0.6
0.6-1.2
1.9-2.4
Cr
19-23
19-23
19-23
19.5-23.5
19.5-23.5
Mo
--
--
--
2.5-3.5
2.5-3.5





Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 1Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 2Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 3

Incoloy is a family of high-performance nickel-chromium alloys that are known for their excellent resistance to corrosion, high temperature and pressure, and good mechanical properties. Incoloy bars are commonly used in a variety of applications, including:
1. Aerospace: Incoloy bars are used in a variety of aerospace applications, such as gas turbine engine components, exhaust systems, and heat exchangers.
2. Chemical processing: Incoloy bars are used in chemical processing plants due to their excellent resistance to corrosion and high-temperature environments. They are used in applications such as heat exchangers, reactors, and piping systems.
3. Oil and gas: Incoloy bars are used in the oil and gas industry due to their excellent resistance to corrosion and high-temperature environments. They are used in applications such as downhole tubulars, wellhead components, and offshore platforms.
4. Power generation: Incoloy bars are used in power generation applications such as boilers and steam generators due to their excellent resistance to high-temperature and high-pressure environments.
5. Food processing: Incoloy bars are used in the food processing industry due to their resistance to corrosion and ability to withstand high-temperature cleaning processes. They are used in applications such as heat exchangers and processing equipment.


Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 4Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 5Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 6Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 7Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 8Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 9Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 10Original Factory 4mm 5mm Nickel Based Incoloy Alloy 800/800H Bar 11
