Home > products > Incoloy Alloy > Incoloy 825 925 Seamless Pipe Nickel Special Alloy 800H Incoloy Tube In China

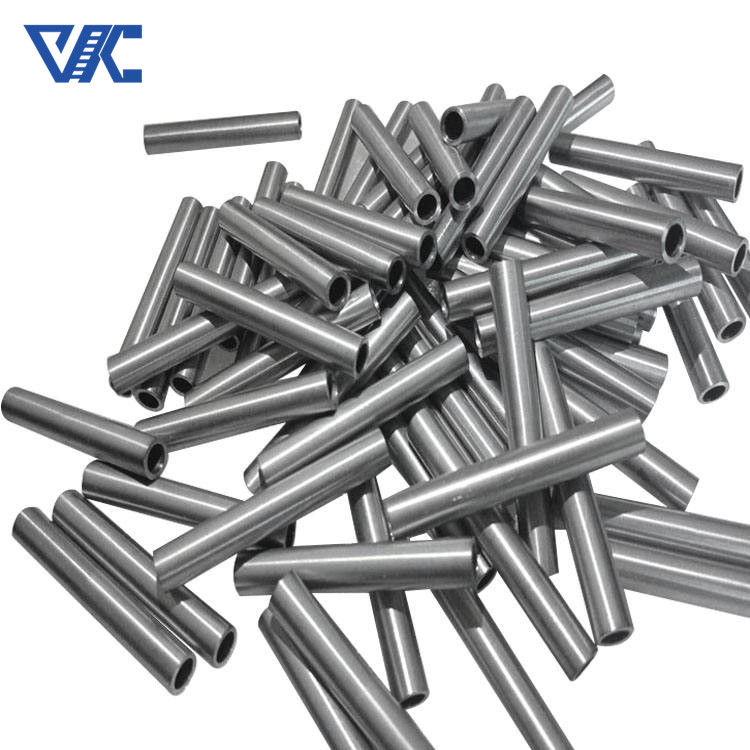

Incoloy 825 925 Seamless Pipe Nickel Special Alloy 800H Incoloy Tube In China

Product Details

Place of Origin: China

Brand Name: Victory

Certification: CE,ROHS,ISO 9001

Model Number: Incoloy 800,800H,800HT,825,925

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 5 Kg

Price: 30 - 499 kilograms $48.90

Packaging Details: Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Product Details
Highlight:

Incoloy 825 Seamless Pipe

,

Nickel Special Alloy 800H

Product Name:
Incoloy Tube
Material:
Ni Fe Cr
Nickel(Min):
72%
Resistance (μΩ.m):
1.15
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
500
Elongation (≥ %):
35%
Density (g/m3):
8.4 G/cm3
Surface:
Bright
Size:
Customized
Processing Service:
Decoiling,Cutting,Bending
Application:
Aerospace Industry,Chemical Processing
Product Name:
Incoloy Tube
Material:
Ni Fe Cr
Nickel(Min):
72%
Resistance (μΩ.m):
1.15
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
500
Elongation (≥ %):
35%
Density (g/m3):
8.4 G/cm3
Surface:
Bright
Size:
Customized
Processing Service:
Decoiling,Cutting,Bending
Application:
Aerospace Industry,Chemical Processing
Product Description

Incoloy 825 925 Seamless Pipe Nickel Special Alloy 800H Incoloy Tube In China 0

  1. Resistance to Creep and Fatigue: Incoloy pipes exhibit excellent resistance to creep, which is the gradual deformation that occurs under constant stress at high temperatures. They also demonstrate resistance to fatigue, making them suitable for applications where cyclic loading and thermal cycling are present.

  2. Wide Range of Applications: Incoloy pipes find applications in various industries, including chemical processing, oil and gas, power generation, aerospace, and marine sectors. They are used in applications such as heat exchangers, boilers, piping systems, process equipment, and offshore platforms.

  3. Size and Configuration: Incoloy pipes are available in a range of sizes, from small-diameter pipes for intricate applications to large-diameter pipes for industrial-scale operations. They can be manufactured in different configurations, including seamless and welded pipes, to meet specific project requirements.


Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm

Incoloy series:800,800H,800HT,825



Item
800
800H
800HT
825
925
C
≤0.1
0.05-0.1
0.06-0.1
≤0.05
≤0.03
Mn
≤1.5
≤1.5
≤1.5
≤1
≤1
Fe
rest
rest
rest
rest
rest
P
--
--
--
≤0.02
≤0.03
S
≤0.015
≤0.015
≤0.015
≤0.03
≤0.03
Si
≤1
≤1
≤1
≤0.5
≤0.5
Cu
≤0.75
≤0.75
≤0.75
1.5-3
1.5-3
Ni
30-35
30-35
30-35
38-46
42-46
Al
0.15-0.6
0.15-0.6
0.15-0.6
0.2-1
0.15-0.5
Ti
0.15-0.6
0.15-0.6
0.15-0.6
0.6-1.2
1.9-2.4
Cr
19-23
19-23
19-23
19.5-23.5
19.5-23.5
Mo
--
--
--
2.5-3.5
2.5-3.5

Incoloy 825 925 Seamless Pipe Nickel Special Alloy 800H Incoloy Tube In China 1Incoloy 825 925 Seamless Pipe Nickel Special Alloy 800H Incoloy Tube In China 2Incoloy 825 925 Seamless Pipe Nickel Special Alloy 800H Incoloy Tube In China 3

Incoloy alloy tubes are a type of high-performance nickel-chromium-based alloy, which possesses excellent corrosion resistance, high-temperature strength, and good mechanical properties. They are widely used in various fields, including:
1. Petrochemical industry: Incoloy alloy tubes are commonly used in the petrochemical industry for heat exchangers, reboilers, and distillation columns. They can withstand high-temperature and high-pressure environments, as well as corrosive media such as sulfuric acid and hydrofluoric acid.
2. Power generation industry: Incoloy alloy tubes are used in the power generation industry to manufacture boilers, superheaters, reheaters, and steam pipes. They can withstand high-temperature and high-pressure steam environments and resist oxidation and corrosion.
3. Aerospace industry: Incoloy alloy tubes are used in the aerospace industry for various applications, including aircraft engines, rocket engines, and other high-temperature and high-stress environments.
4. Nuclear energy industry: Incoloy alloy tubes are used in nuclear power plants to manufacture fuel elements, control rods, and other components that require high-temperature strength and corrosion resistance.
5. Food processing industry: Incoloy alloy tubes are suitable for use in the food processing industry as they are non-toxic and resistant to corrosion from various food acids and alkalis.
In summary, incoloy alloy tubes are a versatile material with a wide range of applications in various industries that require high-temperature strength, corrosion resistance, and good mechanical properties.
