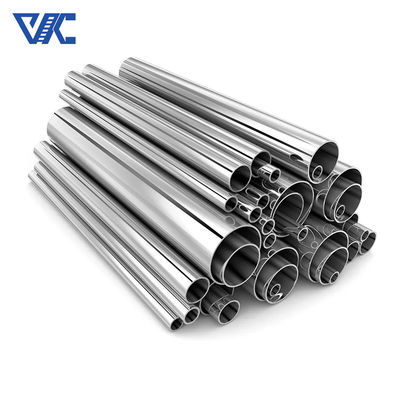

800 825 Incoloy Alloy Pipe 625 600 718 Inconel Tube For Aerospace Industry

MOQ:	5 Kg
Price:	30 - 499 kilograms $48.90
Standard Packaging:	Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case
Delivery Period:	5-21 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	300 tons per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

CE,ROHS,ISO 9001

Model Number

Incoloy 800,800H,800HT,825,925

Document

Product Name:

Incoloy Tube

Material:

Ni Fe Cr

Nickel(Min):

Resistance (μΩ.m):

Powder Or Not:

Not Powder

Ultimate Strength (≥ MPa):

Elongation (≥ %):

Density (g/m3):

8.4 G/cm3

Surface:

Bright

Size:

Customized

Processing Service:

Decoiling,Cutting,Bending

Application:

Aerospace Industry,Chemical Processing

Highlight:

825 Incoloy Alloy Pipe

718 Inconel Tube

Product Description

800 825 Incoloy Alloy Pipe 625 600 718 Inconel Tube For Aerospace Industry 0

Inconel alloys are stronger than stainless steel at higher temperatures. They're also resistant to oxidation and scaling. Well-suited for extreme environments, Inconel alloys are ideal for heating treating applications and other high-temperature processes.

The Inconel density changes with the different grades of the material. There are different grades designated by numbers such as 600, 617, 625, 690, 718 and X750. The Inconel 600 for example has 8.47 grams per centimeter cube of density. These are developed through different methods.

Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm

Incoloy series:800,800H,800HT,825

Item	800	800H	800HT	825	925
C	≤0.1	0.05-0.1	0.06-0.1	≤0.05	≤0.03
Mn	≤1.5	≤1.5	≤1.5	≤1	≤1
Fe	rest	rest	rest	rest	rest
P	--	--	--	≤0.02	≤0.03
S	≤0.015	≤0.015	≤0.015	≤0.03	≤0.03
Si	≤1	≤1	≤1	≤0.5	≤0.5
Cu	≤0.75	≤0.75	≤0.75	1.5-3	1.5-3
Ni	30-35	30-35	30-35	38-46	42-46
Al	0.15-0.6	0.15-0.6	0.15-0.6	0.2-1	0.15-0.5
Ti	0.15-0.6	0.15-0.6	0.15-0.6	0.6-1.2	1.9-2.4
Cr	19-23	19-23	19-23	19.5-23.5	19.5-23.5
Mo	--	--	--	2.5-3.5	2.5-3.5

800 825 Incoloy Alloy Pipe 625 600 718 Inconel Tube For Aerospace Industry 1

Incoloy alloy tubes are a type of high-performance nickel-chromium-based alloy, which possesses excellent corrosion resistance, high-temperature strength, and good mechanical properties. They are widely used in various fields, including:

1. Petrochemical industry: Incoloy alloy tubes are commonly used in the petrochemical industry for heat exchangers, reboilers, and distillation columns. They can withstand high-temperature and high-pressure environments, as well as corrosive media such as sulfuric acid and hydrofluoric acid.
2. Power generation industry: Incoloy alloy tubes are used in the power generation industry to manufacture boilers, superheaters, reheaters, and steam pipes. They can withstand high-temperature and high-pressure steam environments and resist oxidation and corrosion.
3. Aerospace industry: Incoloy alloy tubes are used in the aerospace industry for various applications, including aircraft engines, rocket engines, and other high-temperature and high-stress environments.
4. Nuclear energy industry: Incoloy alloy tubes are used in nuclear power plants to manufacture fuel elements, control rods, and other components that require high-temperature strength and corrosion resistance.
5. Food processing industry: Incoloy alloy tubes are suitable for use in the food processing industry as they are non-toxic and resistant to corrosion from various food acids and alkalis.
In summary, incoloy alloy tubes are a versatile material with a wide range of applications in various industries that require high-temperature strength, corrosion resistance, and good mechanical properties.

800 825 Incoloy Alloy Pipe 625 600 718 Inconel Tube For Aerospace Industry 4
