Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: Incoloy 800H
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Kg
Price: 30 - 499 kilograms $46.90
Packaging Details: Packed as coil. Special packaging requirements can also be accommodated. OEM is also acceptable
Delivery Time: 7 to 20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Ton/Tons per Month
Product Name: |
Incoloy 800H Strip |
Material: |
Ni Cr Fe |
Ni (Min): |
72% |
Resistance (μΩ.m): |
1.15 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
790 |
Elongation (≥ %): |
30 |
Density (g/m3): |
8.4 G/cm3 |
Application: |
Industrial,Construction,Building |
Surface: |
Bright |
Size: |
Customized |
Processing Service: |
Decoiling,Cutting,Bending |
Product Name: |
Incoloy 800H Strip |
Material: |
Ni Cr Fe |
Ni (Min): |
72% |
Resistance (μΩ.m): |
1.15 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
790 |
Elongation (≥ %): |
30 |
Density (g/m3): |
8.4 G/cm3 |
Application: |
Industrial,Construction,Building |
Surface: |
Bright |
Size: |
Customized |
Processing Service: |
Decoiling,Cutting,Bending |
Introduction:

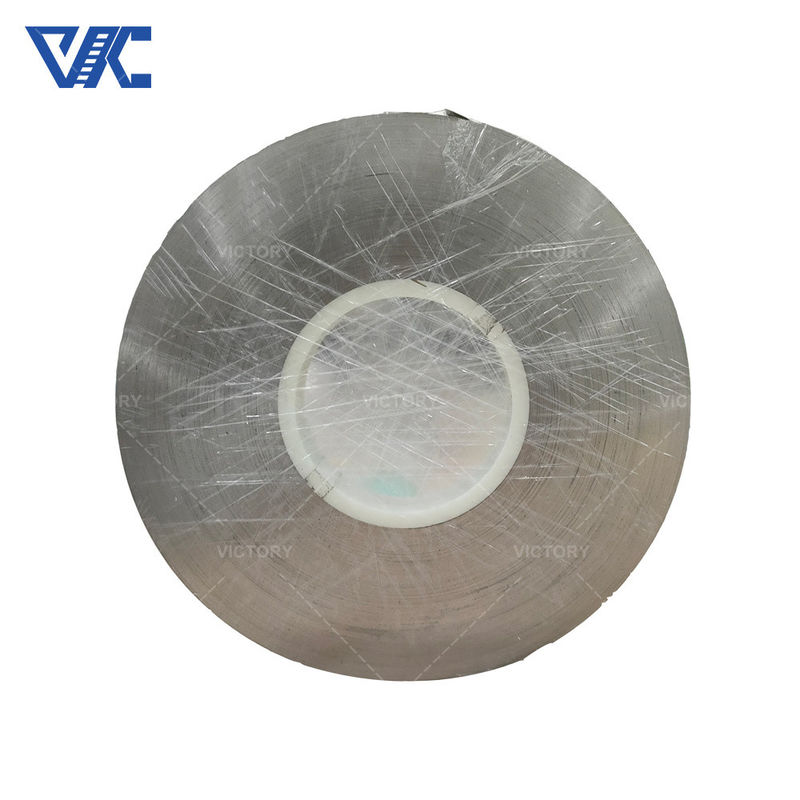

1. Incoloy 800H Strip is a high-temperature alloy strip, which is an improved material of Incoloy 800 alloy.
2. The tape has excellent high temperature performance and corrosion resistance, making it suitable for applications under extreme operating conditions.
3. The chemical composition of Incoloy 800H Strip has been adjusted and optimized to give it higher antioxidant capacity and resistance to oxidation, allowing it to operate stably for a long time in high temperature environments.
4. The material is widely used in industries such as petrochemical, chemical processing, power generation and nuclear energy, and is particularly suitable for key components such as seals and supports in furnace tubes, heat exchangers, catalyst tubes and high-temperature equipment.
Feature:
1. High temperature performance: Incoloy 800H Strip has excellent high temperature stability and can maintain good strength and toughness in high temperature environments.
2. Corrosion resistance: This strip has excellent corrosion resistance to many corrosive media, including acids, alkalis, chlorides and sulfides, etc.
3. Antioxidation: Incoloy 800H Strip has undergone special heat treatment and has good antioxidant ability and can resist oxidation in high temperature environments.
4. Sulfide resistance: This strip has good corrosion resistance against sulfides such as hydrogen sulfide and is suitable for applications in sulfide media.
Parameter:
Item | 800 | 800H | 800HT | 825 | 925 |
C | ≤0.1 | 0.05-0.1 | 0.06-0.1 | ≤0.05 | ≤0.03 |
Mn | ≤1.5 | ≤1.5 | ≤1.5 | ≤1 | ≤1 |
Fe | rest | rest | rest | rest | rest |
P | -- | -- | -- | ≤0.02 | ≤0.03 |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.03 | ≤0.03 |
Si | ≤1 | ≤1 | ≤1 | ≤0.5 | ≤0.5 |
Cu | ≤0.75 | ≤0.75 | ≤0.75 | 1.5-3 | 1.5-3 |
Ni | 30-35 | 30-35 | 30-35 | 38-46 | 42-46 |
Al | 0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.2-1 | 0.15-0.5 |
Ti | 0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.6-1.2 | 1.9-2.4 |
Cr | 19-23 | 19-23 | 19-23 | 19.5-23.5 | 19.5-23.5 |
Mo | -- | -- | -- | 2.5-3.5 | 2.5-3.5 |
| |
