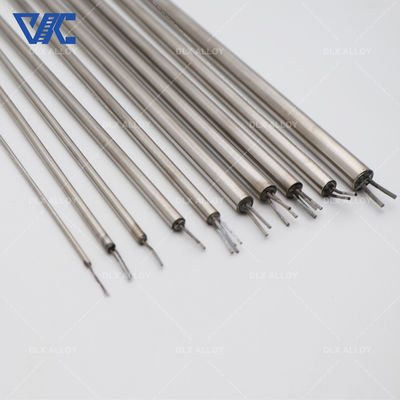

Thermocouple Wire K Type Mineral Insulated Thermocouple MI Cable/Wire

MOQ:	5 Kg
Price:	50 - 499 meters $3.00
Standard Packaging:	in coils, carton and wooden case.
Delivery Period:	5-21 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	50 - 999 meters $2.88

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

CE,ROHS,ISO 9001

Model Number

K,N,E,J,T,B,R,S Types

Document

Product Name:

MI Thermocouple Cable

Warranty:

1 Year

Conductor Material:

NiCr-NiSi,NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Kon

Sheath Material:

SS304,SS321, SS316, SS310, INCL600,601, Nicrobell,SS446

Dia(mm):

0.25mm To 12.7mm

Insulator:

99.6% High Purity MgO

Temperature Range:

0~1100(℃)

Size:

Customized Size

Customized Support:

OEM, ODM, OBM, Software Reengineering

Application:

Temperature Measuring

Highlight:

Mineral Insulated Thermocouple MI Cable

K Type Mineral Insulated Cable

Thermocouple K Type Mineral Insulated Wire

Product Description

MI Thermocouple Cable is a high performance thermocouple cable designed with mineral insulation designed to provide reliable temperature measurement and control solutions. This product series covers a variety of models and is suitable for temperature monitoring needs in various fields.

MI Thermocouple Cable has excellent high temperature resistance and can provide reliable measurement results in extreme temperature conditions. It uses mineral insulating materials and has excellent insulation properties and anti-interference capabilities, which can effectively reduce the impact of external interference on temperature measurement.

Code	Wire Component of the thermocouple
	+Positive leg	- Negative Leg
N	Ni-Cr-Si(NP)	Ni-Si-magnesium (NN)
K	Ni-Cr(KP)	Ni-Al(Si) (KN)
E	Ni-Cr(EP)	Cu-Ni (EN)
J	Iron (JP)	Cu-Ni (JN)
T	Copper (TP)	Cu-Ni (TN)
B	Platinum Rhodium-30%	Platinum Rhodium -6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium -10%	Platinum

Material	Type	Grade	Working temperature (deg)		Tolerance	Standard
			Long Term	Short Term
NiCr-NiSi	K	1	-40~1100	-40~1300	±1.5 deg	GB/T 2614-1998
		2			±2.5 deg
NiCr-CuNi	E	1	-40~800	-40~900	±1.5 deg	GB/T 4993-1998
		2			±2.5 deg
Fe-Constantan	J	1	-40~600	-40~800	±1.5 deg	GB/T 4994-1998
		2			±2.5 deg
Cu-CuNi	T	1	-200~300	-200~400	±0.5 deg	GB/T 2903-1998

Outer Sheath(mm)		core wire Dia.( mm)		Outer Sheath(mm)o core wire Dia.( mm)				Length(m)
Out Dia	Wall Thickness	K,N,E,J,T Types	S,R,B Types	K,N Types	E,J,T Types	S,R Types	B Types	Length(m)
0.5	0.05-0.10	0.08-0.12	...	SS304, SS321, SS316, SS310, INCL600	SS30, SS32, SS316	INCL60, INCL800	INCL60, INCL800	500
1.0	0.10-0.20	0.15-0.20	...					300
1.5	0.15-0.25	0.23-0.30	...					200
1.6	0.16-0.26	0.26-0.36	...					200
2.0	0.25-0.35	0.40-0.50	0.25-.030					180
3.0	0.38-0.48	0.50-0.60	0.30-0.40					80
3.2	0.48-0.58	0.58-0.68	0.30-0.40					75
4.0	0.52-0.62	0.60-0.70	0.35-0.40					70
4.8	0.73-0.83	0.75-0.85	0.40-0.45					40
5.0	0.78-0.88	0.80-0.90	0.40-0.45					40
6.0	0.98-1.08	0.90-1.10	0.45-0.50					30
6.4	1..05-1.15	1.02-1.12	0.45-0.50					30
8.0	1.30-1.44	1.30-1.40	0.45-0.50					20
12.7	1.75-1.90	1.95-2.05	...					10

Thermocouple Wire K Type Mineral Insulated Thermocouple MI Cable/Wire 0
