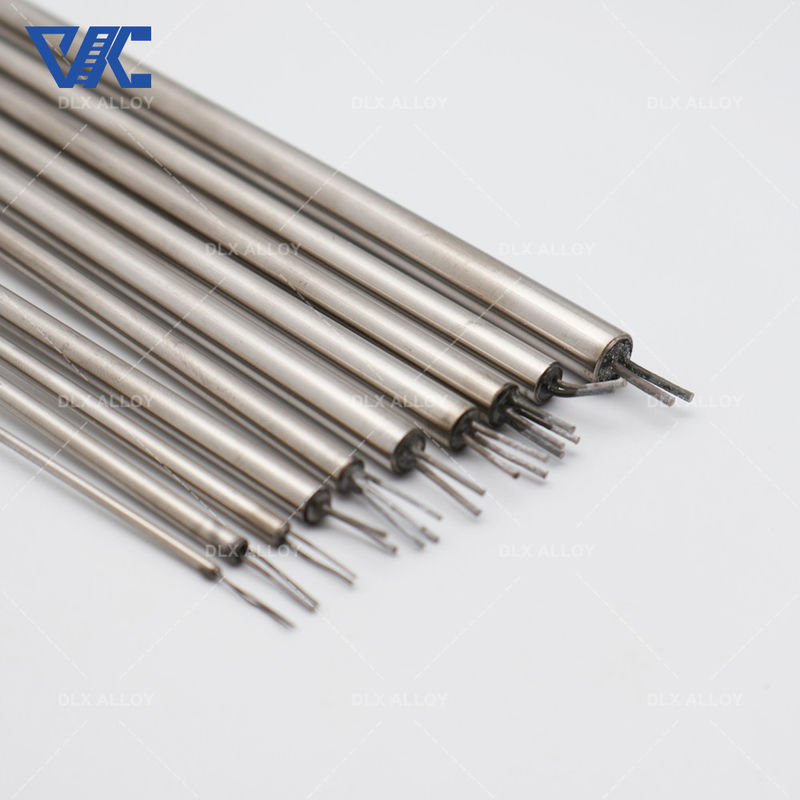

99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator

Products

Thermocouple Compensating Wire

Thermocouple Sensors

Mrs. Victory

victory@dlx-alloy.com

86-199-06119641

19906119641

Contact Now

99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator

MOQ:	5 Kg
Price:	50 - 499 meters $3.00
Standard Packaging:	in coils, carton and wooden case.
Delivery Period:	5-21 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	50 - 999 meters $2.88

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

CE,ROHS,ISO 9001

Model Number

K,N,E,J,T,B,R,S Types

Document

Product Name:

MI Thermocouple Cable

Warranty:

1 Year

Conductor Material:

NiCr-NiSi,NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Kon

Sheath Material:

SS304,SS321, SS316, SS310, INCL600,601, Nicrobell,SS446

Dia(mm):

0.25mm To 12.7mm

Insulator:

99.6% High Purity MgO

Temperature Range:

0~1100(℃)

Size:

Customized Size

Customized Support:

OEM, ODM, OBM, Software Reengineering

Application:

Temperature Measuring

Highlight:

MI Thermocouple Cable

99.6% Mineral Insulated Thermocouple Cable

Product Description

MI Thermocouple Cable is a mineral insulated thermocouple cable that provides reliable temperature measurement and control solutions. Its models include K, N, E, J, T, B, R, S Types, which are suitable for industrial furnaces, chemical plants, power equipment, metallurgical engineering, laboratories and other fields. Excellent high temperature resistance and interference immunity, parameters include wire diameter, mineral insulation material, cable length and available thermocouple types. When purchasing, you can select the appropriate model and specifications based on specific application needs to ensure accurate and stable temperature monitoring.

Code	Wire Component of the thermocouple
	+Positive leg	- Negative Leg
N	Ni-Cr-Si(NP)	Ni-Si-magnesium (NN)
K	Ni-Cr(KP)	Ni-Al(Si) (KN)
E	Ni-Cr(EP)	Cu-Ni (EN)
J	Iron (JP)	Cu-Ni (JN)
T	Copper (TP)	Cu-Ni (TN)
B	Platinum Rhodium-30%	Platinum Rhodium -6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium -10%	Platinum

Material	Type	Grade	Working temperature (deg)		Tolerance	Standard
			Long Term	Short Term
NiCr-NiSi	K	1	-40~1100	-40~1300	±1.5 deg	GB/T 2614-1998
		2			±2.5 deg
NiCr-CuNi	E	1	-40~800	-40~900	±1.5 deg	GB/T 4993-1998
		2			±2.5 deg
Fe-Constantan	J	1	-40~600	-40~800	±1.5 deg	GB/T 4994-1998
		2			±2.5 deg
Cu-CuNi	T	1	-200~300	-200~400	±0.5 deg	GB/T 2903-1998

Outer Sheath(mm)		core wire Dia.( mm)		Outer Sheath(mm)o core wire Dia.( mm)				Length(m)
Out Dia	Wall Thickness	K,N,E,J,T Types	S,R,B Types	K,N Types	E,J,T Types	S,R Types	B Types	Length(m)
0.5	0.05-0.10	0.08-0.12	...	SS304, SS321, SS316, SS310, INCL600	SS30, SS32, SS316	INCL60, INCL800	INCL60, INCL800	500
1.0	0.10-0.20	0.15-0.20	...					300
1.5	0.15-0.25	0.23-0.30	...					200
1.6	0.16-0.26	0.26-0.36	...					200
2.0	0.25-0.35	0.40-0.50	0.25-.030					180
3.0	0.38-0.48	0.50-0.60	0.30-0.40					80
3.2	0.48-0.58	0.58-0.68	0.30-0.40					75
4.0	0.52-0.62	0.60-0.70	0.35-0.40					70
4.8	0.73-0.83	0.75-0.85	0.40-0.45					40
5.0	0.78-0.88	0.80-0.90	0.40-0.45					40
6.0	0.98-1.08	0.90-1.10	0.45-0.50					30
6.4	1..05-1.15	1.02-1.12	0.45-0.50					30
8.0	1.30-1.44	1.30-1.40	0.45-0.50					20
12.7	1.75-1.90	1.95-2.05	...					10

99.6% Purity Mineral Insulated Thermocouple Cable MgO Magnesium Oxide Insulator 0
