Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: Incoloy 800
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Kg
Price: 30 - 499 kilograms $46.90
Packaging Details: Packed as coil. Special packaging requirements can also be accommodated. OEM is also acceptable
Delivery Time: 7 to 20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Ton/Tons per Month
Product Name: |

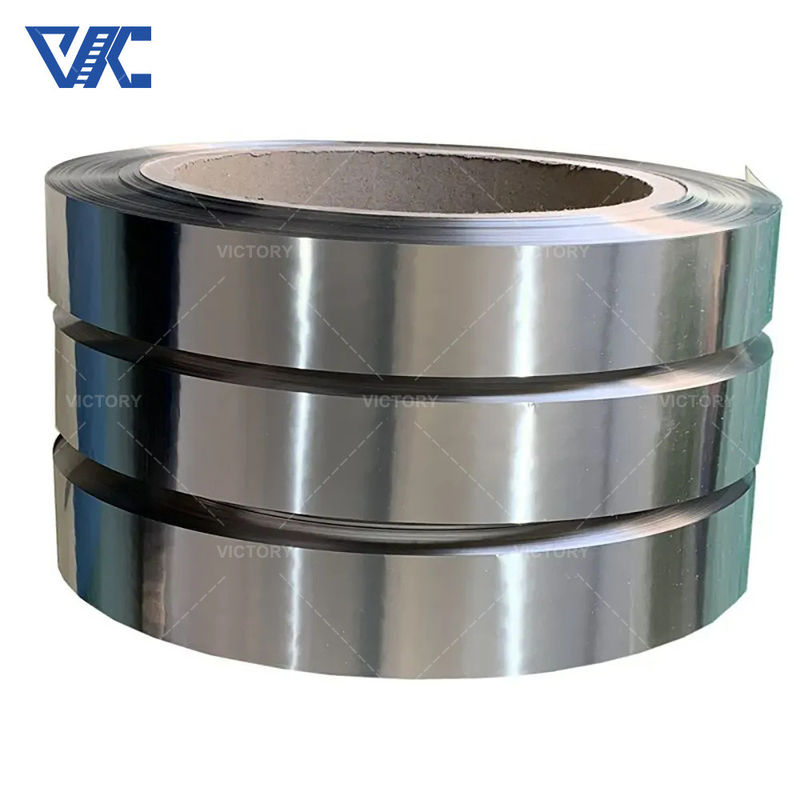

Incoloy 800 Strip |
Material: |
Ni Cr Fe |
Ni (Min): |
30% |
Resistance (μΩ.m): |
1.15 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
790 |
Elongation (≥ %): |
30 |
Density (g/m3): |
8.4 G/cm3 |
Application: |
Industrial,Construction,Building |
Surface: |
Bright |
Size: |
Customized |
Processing Service: |
Decoiling,Cutting,Bending |
Product Name: |
Incoloy 800 Strip |
Material: |
Ni Cr Fe |
Ni (Min): |
30% |
Resistance (μΩ.m): |
1.15 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
790 |
Elongation (≥ %): |
30 |
Density (g/m3): |
8.4 G/cm3 |
Application: |
Industrial,Construction,Building |
Surface: |
Bright |
Size: |
Customized |
Processing Service: |
Decoiling,Cutting,Bending |
Introduction:
1. Incoloy 800 strip is available in various thicknesses and widths to suit specific requirements.
2. The strip's composition typically consists of approximately 30% nickel, 46% iron, and small amounts of chromium, aluminum, and titanium.
3. Incoloy 800 strip is a high-performance material known for its excellent high-temperature strength, corrosion resistance, thermal stability, and creep resistance.
4. It belongs to the Incoloy family of superalloys and is commonly used in industries that require reliable performance at elevated temperatures.
Applications:
1. Chemical processing: It is used in components such as heat exchangers, furnace parts, and piping systems.
2. Power generation: Incoloy 800 strip is employed in gas turbine components, steam generators, and heat recovery systems .
3. Aerospace and aviation: It finds applications in aircraft engine components, such as combustion chambers and afterburners.
4. Heat treatment industry: Incoloy 800 strip is suitable for fixtures, baskets, and radiant tubes used in heat treatment furnaces that operate at high temperatures.
Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Incoloy series:800,800H,800HT,825
Parameter:
|
Item
|
800
|
800H
|
800HT
|
825
|
925
|
|
C
|
≤0.1
|
0.05-0.1
|
0.06-0.1
|
≤0.05
|
≤0.03
|
|
Mn
|
≤1.5
|
≤1.5
|
≤1.5
|
≤1
|
≤1
|
|
Fe
|
rest
|
rest
|
rest
|
rest
|
rest
|
|
P
|
--
|
--
|
--
|
≤0.02
|
≤0.03
|
|
S
|
≤0.015
|
≤0.015
|
≤0.015
|
≤0.03
|
≤0.03
|
|
Si
|
≤1
|
≤1
|
≤1
|
≤0.5
|
≤0.5
|
|
Cu
|
≤0.75
|
≤0.75
|
≤0.75
|
1.5-3
|
1.5-3
|
|
Ni
|
30-35
|
30-35
|
30-35
|
38-46
|
42-46
|
|
Al
|
0.15-0.6
|
0.15-0.6
|
0.15-0.6
|
0.2-1
|
0.15-0.5
|
|
Ti
|
0.15-0.6
|
0.15-0.6
|
0.15-0.6
|
0.6-1.2
|
1.9-2.4
|
|
Cr
|
19-23
|
19-23
|
19-23
|
19.5-23.5
|
19.5-23.5
|
|
Mo
|
--
|
--
|
--
|
2.5-3.5
|
2.5-3.5
|
|
|
