Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: Incoloy 800H
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Kg
Price: 30 - 499 kilograms $46.90
Packaging Details: Packed as coil. Special packaging requirements can also be accommodated. OEM is also acceptable
Delivery Time: 7 to 20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Ton/Tons per Month
Product Name: |
Incoloy 800H Strip |
Material: |
Ni Cr Fe |
Ni (Min): |
32% |
Resistance (μΩ.m): |
1.15 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
790 |
Elongation (≥ %): |
30 |
Density (g/m3): |
8.4 G/cm3 |
Application: |
Industrial,Construction,Building |
Surface: |
Bright |
Size: |
Customized |
Processing Service: |
Decoiling,Cutting,Bending |
Product Name: |
Incoloy 800H Strip |
Material: |
Ni Cr Fe |
Ni (Min): |
32% |
Resistance (μΩ.m): |
1.15 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
790 |
Elongation (≥ %): |
30 |
Density (g/m3): |
8.4 G/cm3 |
Application: |
Industrial,Construction,Building |
Surface: |
Bright |
Size: |
Customized |
Processing Service: |
Decoiling,Cutting,Bending |

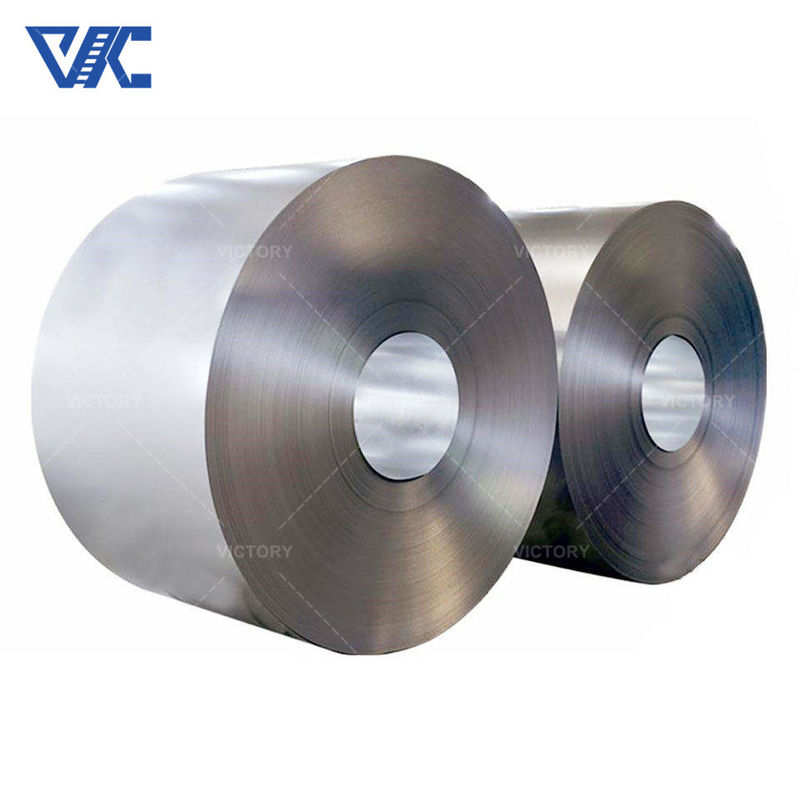

Introduction:
1. Incoloy 800H strip is a specialized material renowned for its outstanding performance in high-temperature environments.
2. Made from the Incoloy 800H alloy, Incoloy 800H strip is a thin, flat metal sheet available in various thicknesses and widths.
3. With a composition consisting of approximately 32% nickel, 46% iron, and small amounts of chromium, aluminum, and titanium, it offers a unique combination of properties.
4. It is widely employed in industries requiring reliable performance in extreme environments
Features:
1. Superior high-temperature corrosion resistance: Incoloy 800H strip demonstrates exceptional resistance to oxidation, carburization, and nitridation.
2. Enhanced mechanical properties: Compared to Incoloy 800, Incoloy 800H strip boasts improved tensile strength, creep resistance, and rupture strength at elevated temperatures.
3. Outstanding creep resistance: The strip's remarkable resistance to creep deformation, even under prolonged high-temperature stress.
Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Incoloy series:800,800H,800HT,825
Parameter:
|
Item
|
800
|
800H
|
800HT
|
825
|
925
|
|
C
|
≤0.1
|
0.05-0.1
|
0.06-0.1
|
≤0.05
|
≤0.03
|
|
Mn
|
≤1.5
|
≤1.5
|
≤1.5
|
≤1
|
≤1
|
|
Fe
|
rest
|
rest
|
rest
|
rest
|
rest
|
|
P
|
--
|
--
|
--
|
≤0.02
|
≤0.03
|
|
S
|
≤0.015
|
≤0.015
|
≤0.015
|
≤0.03
|
≤0.03
|
|
Si
|
≤1
|
≤1
|
≤1
|
≤0.5
|
≤0.5
|
|
Cu
|
≤0.75
|
≤0.75
|
≤0.75
|
1.5-3
|
1.5-3
|
|
Ni
|
30-35
|
30-35
|
30-35
|
38-46
|
42-46
|
|
Al
|
0.15-0.6
|
0.15-0.6
|
0.15-0.6
|
0.2-1
|
0.15-0.5
|
|
Ti
|
0.15-0.6
|
0.15-0.6
|
0.15-0.6
|
0.6-1.2
|
1.9-2.4
|
|
Cr
|
19-23
|
19-23
|
19-23
|
19.5-23.5
|
19.5-23.5
|
|
Mo
|
--
|
--
|
--
|
2.5-3.5
|
2.5-3.5
|
|
|
