Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE
Model Number: Cr20Ni80
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Applications: |
Heating Elements, Furnaces, Electrical Components |
Nickel(Min): |
77% |
Elongation: |
≥20% |
Melting Point: |
1400-1450°C |
Electrical Resistivity: |
1.1-1.2 μΩm |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Hardness: |
HV400-500 |
Thermal Conductivity: |
15-20 W/mK |
Name: |
NiCr Alloy |
Applications: |
Heating Elements, Furnaces, Electrical Components |
Nickel(Min): |
77% |
Elongation: |
≥20% |
Melting Point: |
1400-1450°C |
Electrical Resistivity: |
1.1-1.2 μΩm |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Hardness: |
HV400-500 |
Thermal Conductivity: |
15-20 W/mK |
Name: |
NiCr Alloy |

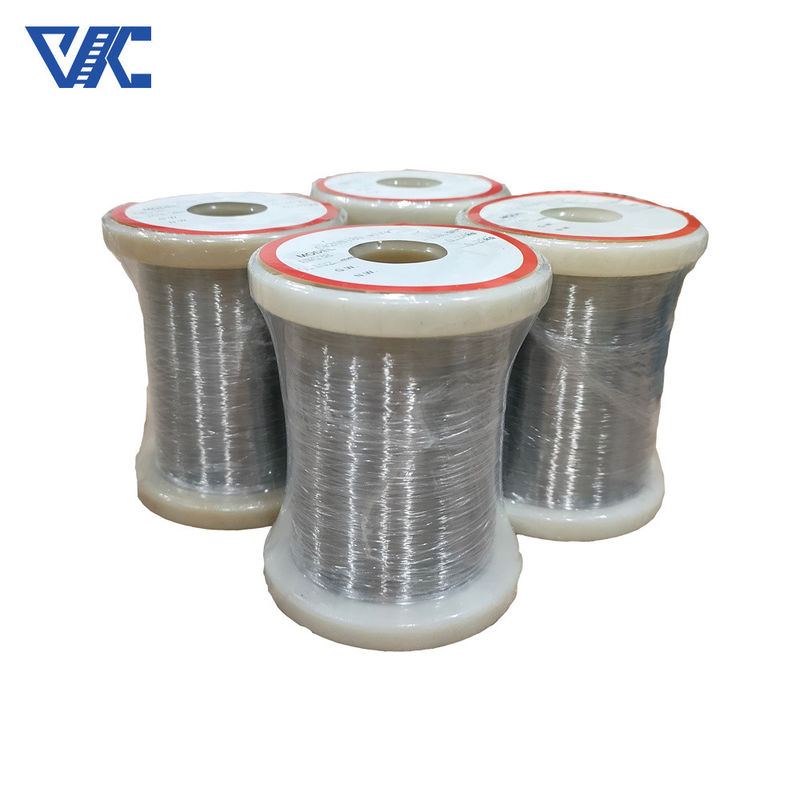

Customizable Cr20Ni80 Alloy Wire For Different Cross-Sectional Areas And Lengths
Introduction:
Cr20Ni80 alloy wire is a high-resistance alloy wire composed of 20% chromium and 80% nickel. It has high resistivity and low temperature coefficient, making it suitable for circuits and equipment that require stable resistance. This alloy wire is often used in resistors, electric heaters, electric furnace heating elements and other fields.
Mechanical behavior:
The mechanical properties of Cr20Ni80 alloy wire can be adjusted through heat treatment.Heat treatment refers to the process of heating and cooling alloy wire to change its structure and properties. Common heat treatment methods include annealing, solution treatment and aging treatment.
1. Annealing: By heating the alloy wire to a high temperature and then cooling it slowly, the stress and grain boundary deformation during cold working can be eliminated, allowing it to return to its original softened state. Annealing can increase the ductility and toughness of the alloy wire, but will reduce its hardness and strength.
2. Solid solution treatment: heating the alloy wire to a certain temperature to uniformly dissolve the elements in the solid solution, and then cooling it quickly to form a uniform solid solution structure. Solution treatment can improve the strength and hardness of alloy wire.
3. Aging treatment: After solid solution treatment, the alloy wire is heated to a lower temperature and kept for a period of time to cause recrystallization and precipitation hardening of the alloy wire structure. Aging treatment can further improve the strength and hardness of alloy wire.
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Temperatura máxima℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Punto de fusion ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Densidad g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistividad μΩ·m,20℃ | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Alargamiento a la ruptura | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Calor especifico J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Conductividad térmica KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coeficiente de expansión de líneas a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Estructura micrográfica | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Propiedades magnéticas | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
| Form | Specification | |
| Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
Corrosion resistance:
Cr20Ni80 alloy wire has good corrosion resistance under normal circumstances. This is mainly due to the 20% chromium in its composition. Chromium has excellent corrosion resistance and can form a dense chromium oxide film (chromium oxide) on the surface of the alloy, effectively preventing further oxidation and corrosion. This chromium oxide film has high stability and adhesion, and can protect the alloy wire from corrosive media to a certain extent.
However, it should be noted that the corrosion resistance of Cr20Ni80 alloy wire is still affected by the specific working environment. In some extreme corrosive environments, such as strong acid, strong alkali, high chloride ion concentration, etc., the corrosion resistance of alloy wire may be challenged. In these cases, additional protective measures or the selection of other more corrosion-resistant materials may be necessary.
Packaging:
Sturdy cardboard boxes are used for packaging NiCr Alloy.
Each box has dimensions of approximately 26 cm (length) x 26 cm (width) x 30 cm (height).
The boxes are designed to provide protection to the contents during transportation.
A plastic wrap is used to seal the boxes, ensuring that the contents are shielded from dust and moisture.
The boxes are labeled with important information, including the product name, quantity, and destination.
|
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
FAQ:
What is the maximum operating temperature of Cr20Ni80 alloy wire?
Cr20Ni80 alloy wire can typically be used at temperatures up to 1000 degrees Celsius, depending on the application and environmental conditions.
What is the corrosion resistance of Cr20Ni80 alloy wire?
Cr20Ni80 alloy wire has good corrosion resistance and shows good corrosion resistance in most common acidic and alkaline environments.
What is the thermal conductivity of Cr20Ni80 alloy wire?
Cr20Ni80 alloy wire has relatively high thermal conductivity and can be used in some applications that require high-temperature heat transfer or heating.
