Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE
Model Number: Cr20Ni80
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Nickel, Chromium |
Nickel(Min): |
89% |
Tensile Strength: |
637MPA |
Magnetic Permeability: |
0.78+/-0.05 |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
NiCr Alloy Wire |
Material: |
Nickel, Chromium |
Nickel(Min): |
89% |
Tensile Strength: |
637MPA |
Magnetic Permeability: |
0.78+/-0.05 |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
NiCr Alloy Wire |

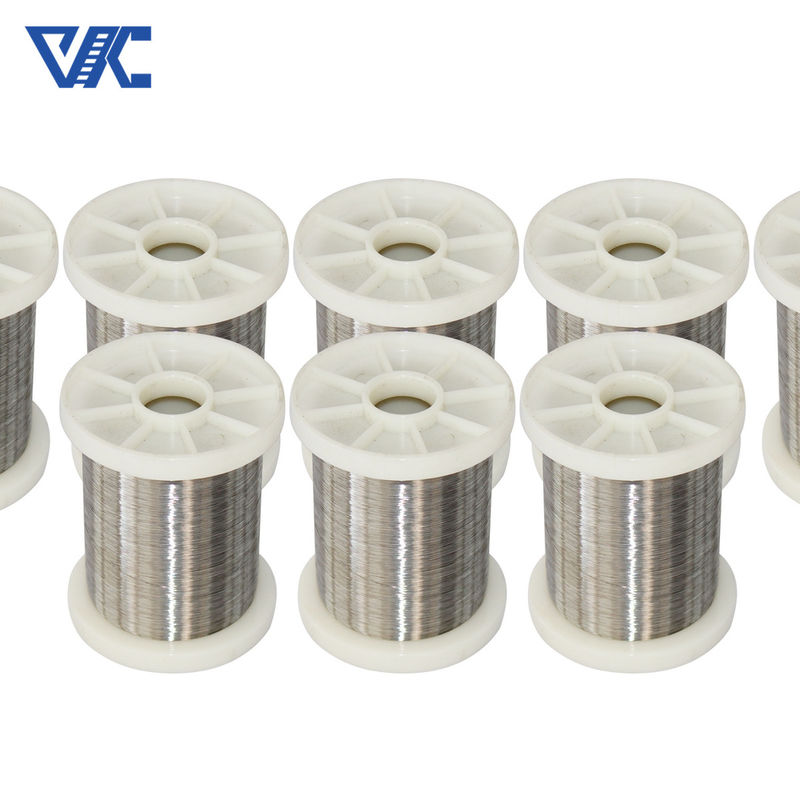

High Temperature NiCr Alloy Cr20Ni80 Heating Resistant Wire For Extreme Temperature Conditions
Product Description:
Cr20Ni80 alloy wire is a high-temperature resistance alloy wire whose main components are 20% chromium and 80% nickel. It has excellent high temperature resistance and can maintain stable resistance characteristics in high temperature environments. This alloy wire is widely used in industrial heating, electric furnace heating, glass heating and other fields.
Application:
Cr20Ni80 alloy wire is widely used in many fields due to its special properties and chemical composition. Here are some common application areas:
1. Resistance heater: Cr20Ni80 alloy wire is widely used in the field of resistance heaters to manufacture electric heating wires, electric heating tubes and electric heating elements. It has good high temperature resistance, can be heated quickly at high temperatures, and is used to heat media such as air, liquids and solids.
2. Industrial heaters: Cr20Ni80 alloy wire is also commonly used in various industrial heaters, including hot blast furnaces, heat treatment equipment, dryers, furnaces and heat exchangers. Its high temperature stability and corrosion resistance make it an ideal heating element material.
3. Temperature sensor: Since the resistance value of Cr20Ni80 alloy wire changes with temperature, it is often used as a material for temperature sensor elements. Based on the principle of resistance measurement, the temperature change can be determined by measuring the resistance value of Cr20Ni80 alloy wire.
4. Resistance wire: Cr20Ni80 alloy wire can also be used to make various resistance wires for applications such as resistors, electronic components and circuits. By controlling the length and cross-sectional area of the alloy wire, the resistance value of the resistance wire can be adjusted to meet specific circuit requirements.
5. Experiments and research: Due to its stability and controllability, Cr20Ni80 alloy wire is widely used in laboratory research, academic research and development fields. It can be used to simulate high temperature environments, electrothermal experiments and material performance testing, etc.
Technical Parameters:
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Temperatura máxima℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Punto de fusion ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Densidad g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistividad μΩ·m,20℃ | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Alargamiento a la ruptura | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Calor especifico J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Conductividad térmica KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coeficiente de expansión de líneas a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Estructura micrográfica | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Propiedades magnéticas | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
| Form | Specification | |
| Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
Service:
We are committed to ensuring that our customers are satisfied with their purchases and building a good relationship. To this end, we provide comprehensive nickel-chromium alloy technical support and services. Our experienced technical team will provide customers with various services such as installation, maintenance, troubleshooting, and answer any questions they may have about the product. In addition, we also provide customized solutions to design and manufacture nickel-chromium alloy products according to customer needs. Through timely support and professional service, we ensure that our customers' products can operate normally.
|
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
Packing:
Sturdy cardboard boxes are used for packaging NiCr Alloy.
Each box has dimensions of approximately 26 cm (length) x 26 cm (width) x 30 cm (height).
The boxes are designed to provide protection to the contents during transportation.
A plastic wrap is used to seal the boxes, ensuring that the contents are shielded from dust and moisture.
The boxes are labeled with important information, including the product name, quantity, and destination.
FAQ :
What is the heat resistance of Cr20Ni80 alloy wire?
Cr20Ni80 alloy wire has good heat resistance and can operate stably for a long time in high temperature environments without failure.
Can the resistance of Cr20Ni80 alloy wire be customized?
Yes, we can customize the resistance of Cr20Ni80 alloy wire according to customer requirements to meet specific application needs.
What is the surface finish of Cr20Ni80 alloy wire?
The surface of Cr20Ni80 alloy wire usually has a high smoothness to ensure good electrical conductivity and appearance quality.
