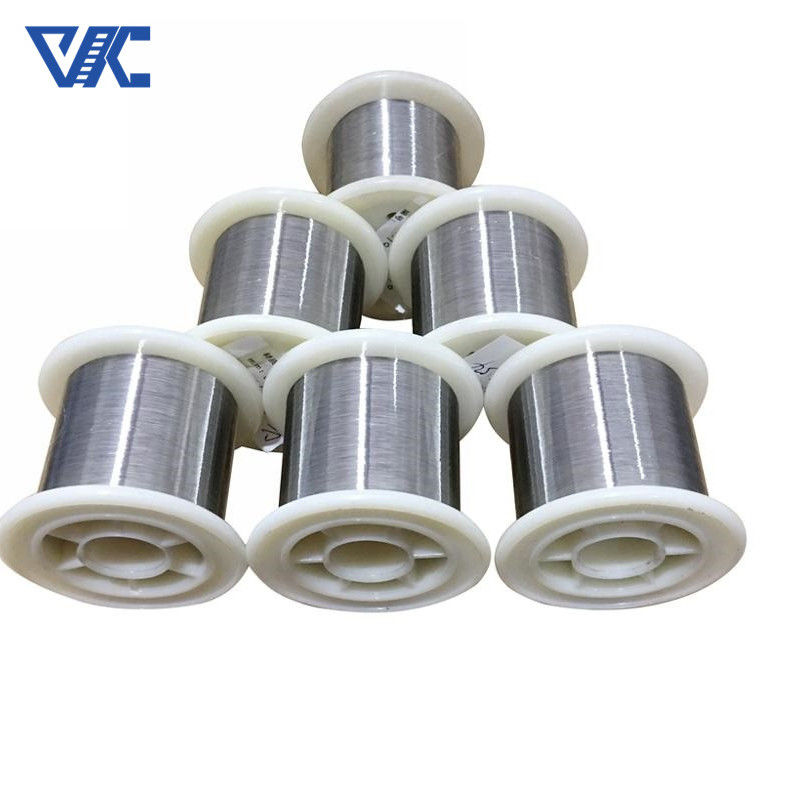

80 20 Nichrome Alloy Heating NiCr Nichrome Cr20ni80 Resistance Wire Ni80

Cr20Ni80 alloy wire is a high-resistance alloy wire composed of 20% chromium and 80% nickel. It has high resistivity and good oxidation resistance, and is suitable for high-temperature heating, electric furnace heating, electric heating devices and other applications. This alloy wire is widely used in industrial heating and electric heating fields.

Cr20Ni80 alloy wire is very suitable for manufacturing electric heating wires due to its high temperature stability and resistance temperature characteristics. Heating wire is a filament-shaped heating element that can heat quickly in high temperature environments. Cr20Ni80 alloy wire is often made into electric heating wire by winding or braiding.

When manufacturing electric heating wire, Cr20Ni80 alloy wire is usually wound into a thin diameter or braided into a filament-like structure. This filament-like structure allows the electric heating wire to create a larger surface area, thereby improving heat transfer efficiency. By energizing the electric current through the Cr20Ni80 alloy wire, the resistance heating effect converts electrical energy into thermal energy, causing the electric heating wire to heat up rapidly.

Heating wires are widely used in various fields, including industrial heaters, household appliances, experiments and research, etc. They can be used to heat air, liquid and solid media to achieve functions such as heating, drying, heat treatment and laboratory temperature control.



Technical Parameters:

---



Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composición	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe	－	≤1.0	≤1.0	Rest	Rest	Rest
Temperatura máxima℃		1300	1200	1250	1150	1100	1100
Punto de fusion ℃		1400	1400	1380	1390	1390	1390
Densidad g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistividad μΩ·m,20℃		0.76±0.05	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Alargamiento a la ruptura		≥20	≥20	≥20	≥20	≥20	≥20
Calor especifico J/g.℃		－	0.44	0.461	0.494	0.5	0.5
Conductividad térmica KJ/m.h℃		－	60.3	45.2	45.2	43.8	43.8
Coeficiente de expansión de líneas a×10-6/(20～1000℃)		－	18	17	17	19	19
Estructura micrográfica		－	Austenite	Austenite	Austenite	Austenite	Austenite
Propiedades magnéticas		－	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic



Form	Specification
Wire	Diameter=0.025mm~8mm
Flat wire	Width=0.40~6.0mm	Thick=0.03~0.50mm
Strip	width=8~250mm	Thick=0.05~3.0mm
Bar	Diameter=8~100mm	Long=50~1000



Service:

---

We are committed to providing customers with a full range of nickel-chromium alloy technical support and services to ensure the normal operation of their products. We have an experienced technical team that can provide customers with various professional services such as installation, maintenance and troubleshooting. No matter what problem or need our customers face, we are here to provide answers and support.





contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Packing and Shipping:

Sturdy cardboard boxes are used for packaging NiCr Alloy.

Each box has dimensions of approximately 26 cm (length) x 26 cm (width) x 30 cm (height).

The shipping method for NiCr Alloy depends on the customer's requirements.
