Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE
Model Number: Cr10Ni90
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Nickel, Chromium |
Nickel(Min): |
89% |
Tensile Strength: |
637MPA |
Magnetic Permeability: |
0.78+/-0.05 |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
NiCr Alloy Wire |
Material: |
Nickel, Chromium |
Nickel(Min): |
89% |
Tensile Strength: |
637MPA |
Magnetic Permeability: |
0.78+/-0.05 |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
NiCr Alloy Wire |

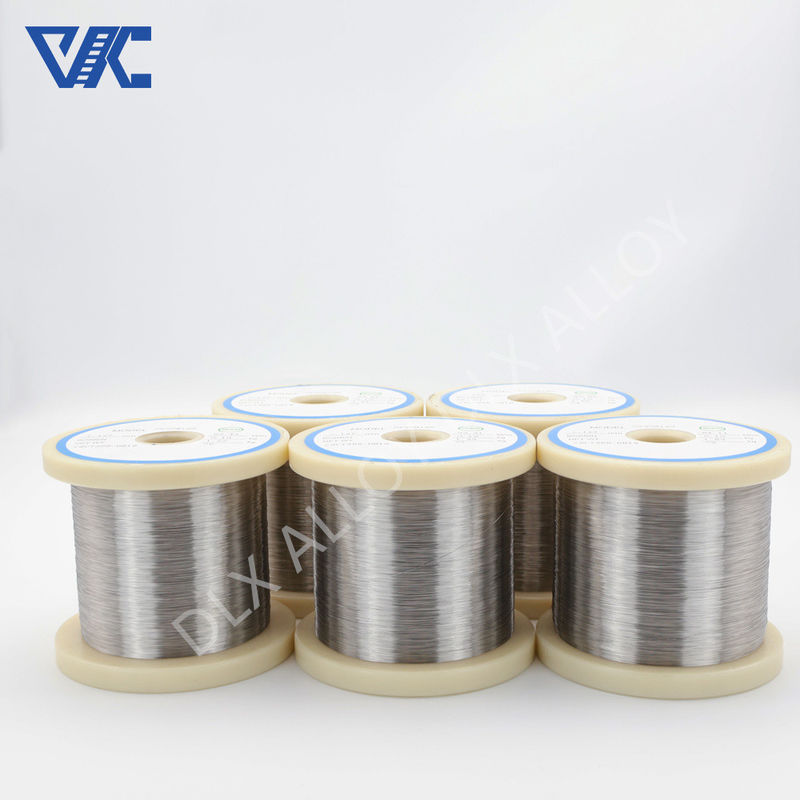

Resist Wire Cr10Ni90 Nickel-Chromium Alloy Corrosion Resistance Nichrome Wire
Introduction:
Cr10Ni90 alloy wire is a nickel-based alloy containing 10% chromium and 90% nickel. This alloy wire has excellent corrosion resistance and oxidation resistance, making it ideal for use in a variety of corrosive environments and high temperature conditions. It is widely used in the chemical industry, oil and gas industry, and aerospace.
In addition, Cr10Ni90 alloy wire also has good mechanical properties and processability, making it easy to manufacture and process products of various shapes and sizes.
Application of Cr10Ni90 alloy wire in thermocouples:
A thermocouple is a commonly used temperature measurement device that uses the principle of the thermoelectric effect to measure the temperature of an object.
Cr10Ni90 alloy wire can be used as the temperature-sensitive part of the thermocouple, and is usually connected with another metal wire (such as commonly used copper, iron, chromium, etc.) to form a thermocouple loop. Cr10Ni90 alloy wire has high resistance and temperature coefficient, allowing it to generate a large thermoelectric potential difference in high temperature environments. By measuring the voltage signal in the thermocouple loop, the temperature of the object being measured can be deduced.
Cr10Ni90 alloy wire has some advantages as the temperature-sensitive part of the thermocouple, such as good high temperature resistance, lower drift and higher measurement accuracy.
Technical Parameters:
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Temperatura máxima℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Punto de fusion ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Densidad g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistividad μΩ·m,20℃ | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Alargamiento a la ruptura | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Calor especifico J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Conductividad térmica KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coeficiente de expansión de líneas a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Estructura micrográfica | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Propiedades magnéticas | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
| Form | Specification | |
| Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
Service:
We are committed to ensuring that our customers are satisfied with their purchases and building a good relationship. To this end, we provide comprehensive nickel-chromium alloy technical support and services. Our experienced technical team will provide customers with various services such as installation, maintenance, troubleshooting, and answer any questions they may have about the product.
|
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
Packing and Shipping:
Sturdy cardboard boxes are used for packaging NiCr Alloy.
Each box has dimensions of approximately 26 cm (length) x 26 cm (width) x 30 cm (height).
The shipping method for NiCr Alloy depends on the customer's requirements.
FAQ :
Can Cr10Ni90 alloy wire be customized?
Yes, we provide customized services for Cr10Ni90 alloy wire and customize manufacturing according to customer needs.
What is the diameter range of Cr10Ni90 alloy wire?
The diameter range of Cr10Ni90 alloy wire is usually between 0.01mm and 5.0mm, and the specific size can be customized according to customer requirements.
What is the resistance value of Cr10Ni90 alloy wire?
The resistance value of Cr10Ni90 alloy wire is usually between 1.09Ω/mm and 0.12Ω/mm, and the specific value depends on factors such as diameter and length.
