Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO
Model Number: Ni80Cr20
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 3 KGS
Price: 3 - 500 kgs $35-$42
Packaging Details: Wooden Case
Delivery Time: 21-36 working days
Payment Terms: L/C, T/T, D/A
Supply Ability: 10 Tons Per Month
Material: |
Nickel, Chromium |
Surface: |
Bright/Acid White/Oxidized |
Density: |
8.40 G/cm3 |
Resistivity: |
1.09±0.05 |
Elongation At Rupture: |
≥20% |
Max Working Temperature: |
1200℃ |
Melting Point: |
1400℃ |
Thermal Conductivity KJ/m.h ℃: |
60.3 |
Magnetic Properities: |
Nonmagnetic |
MOQ: |
2-5KGS |
Lead Time: |
15-35 Days After Order Confirm |
Material: |
Nickel, Chromium |
Surface: |
Bright/Acid White/Oxidized |
Density: |
8.40 G/cm3 |
Resistivity: |
1.09±0.05 |
Elongation At Rupture: |
≥20% |
Max Working Temperature: |
1200℃ |
Melting Point: |
1400℃ |
Thermal Conductivity KJ/m.h ℃: |
60.3 |
Magnetic Properities: |
Nonmagnetic |
MOQ: |
2-5KGS |
Lead Time: |
15-35 Days After Order Confirm |

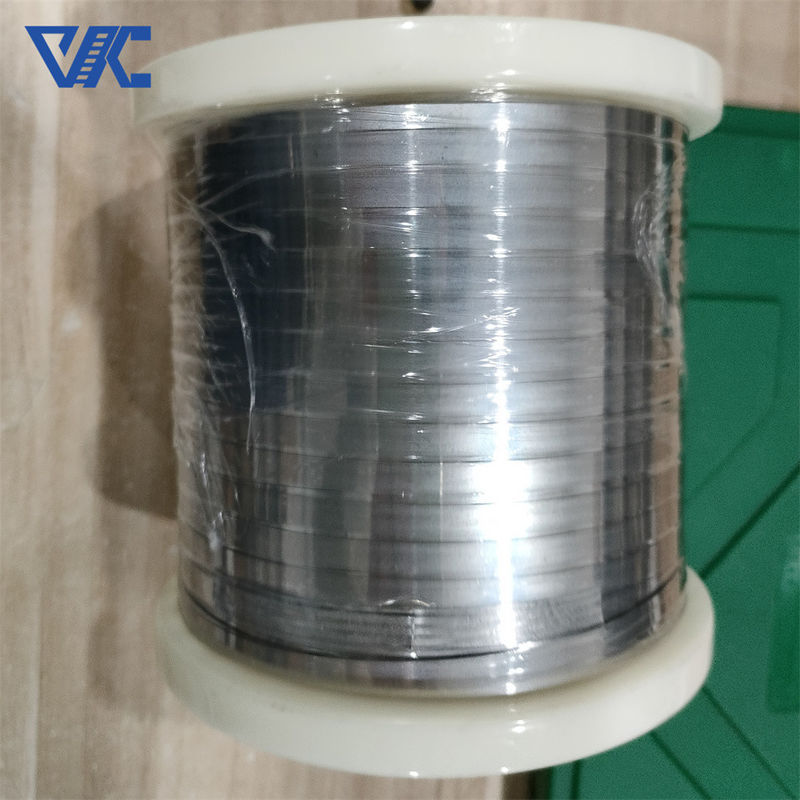

Factory Price Nichrome Alloy Cr20Ni80 Ni80 Electrical Heating Resistance Flat Wire / Robbins
Cr20Ni80 flat wire, also known as Nichrome 80 flat wire, is a type of nickel-chromium alloy wire that has a flat, ribbon-like cross-sectional shape.
Some key characteristics of Cr20Ni80 flat wire include:
1. Composition:
The alloy typically contains around 80% nickel and 20% chromium, with small amounts of other elements like iron, manganese, and silicon.
2. Flat shape:
The wire has a rectangular or ribbon-like cross-section, unlike the more common round wire shape.
The flat profile can provide advantages in certain heating applications, such as increased surface area for heat transfer.
3. Electrical and thermal properties:
Like other Nichrome alloys, Cr20Ni80 flat wire has a high electrical resistance and good thermal conductivity.
These properties make it suitable for use in heating elements, resistors, and other electrical heating applications.
4. Corrosion and oxidation resistance:
The chromium content in the alloy provides good resistance to corrosion and oxidation at high temperatures.
This makes Cr20Ni80 flat wire suitable for use in harsh environments or applications that require long-term durability.
5. High-temperature strength:
The alloy maintains its mechanical strength and stability at elevated temperatures, typically up to around 1100°C (2000°F).
Common applications of Cr20Ni80 flat wire include:
1. Heating elements in industrial furnaces, ovens, and kilns
2. Resistors and heating components in electronic devices
3. Heating tapes and cables for temperature control and maintenance
4. Specialized heating applications that benefit from the flat wire shape
The unique shape and material properties of Cr20Ni80 flat wire make it a versatile choice for various heating and resistance-related applications that require a combination of high-temperature performance, corrosion resistance, and efficient heat transfer.
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. temperature( °C ) | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Melting Point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density(g/cm3) | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity at 20ºC(μΩ@m) | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Elongation at rupture(%) | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific Heat J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Thermal conductivity KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Micrographic structure | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
