Changzhou Victory Technology Co., Ltd victory@dlx-alloy.com 86-199-06119641
Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO
Model Number: Ni60Cr15
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 3 KGS
Price: 3 - 500 kgs $24-$30
Packaging Details: Wooden Case
Delivery Time: 21-32 working days
Payment Terms: L/C, T/T, D/A
Supply Ability: 10 Tons Per Month
Material: |
Nickel, Chromium |
Surface: |
Bright/Acid White/Oxidized |
Density: |
8.20 G/cm3 |
Resistivity: |
1.12±0.05 |
Elongation At Rupture: |
≥20% |
Max Working Temperature: |
1200℃ |
Melting Point: |
1400℃ |
Thermal Conductivity KJ/m.h ℃: |
60.3 |
Magnetic Properities: |
Nonmagnetic |
MOQ: |
2-5KGS |
Lead Time: |
15-35 Days After Order Confirm |
Material: |
Nickel, Chromium |
Surface: |
Bright/Acid White/Oxidized |
Density: |
8.20 G/cm3 |
Resistivity: |
1.12±0.05 |
Elongation At Rupture: |
≥20% |
Max Working Temperature: |
1200℃ |
Melting Point: |
1400℃ |
Thermal Conductivity KJ/m.h ℃: |
60.3 |
Magnetic Properities: |
Nonmagnetic |
MOQ: |
2-5KGS |
Lead Time: |
15-35 Days After Order Confirm |

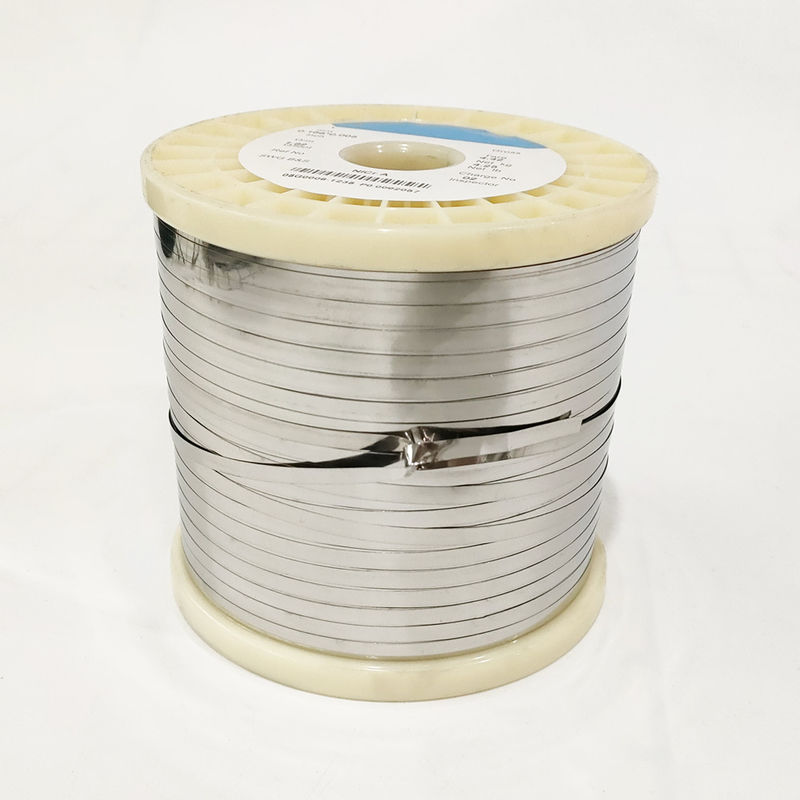

Nichrome Alloy Cr15Ni60 Nikrothal 60 Resistohm 60 Electric Heating Resistance Flat Wire Robbin
CR15Ni60 is a nickel-chromium-based alloy ribbon that is commonly used for various heating and sensing applications. The alloy composition consists of approximately 15% chromium and 60% nickel, with the remaining percentage being iron and other minor alloying elements.
The key properties of CR15Ni60 ribbon include:
1. High Electrical Resistivity: The alloy has a relatively high electrical resistivity, typically in the range of 1.00-1.10 ohm-mm²/m, making it suitable for use in heating and sensing applications.
2. Excellent Oxidation Resistance: The chromium content provides good oxidation resistance, allowing the ribbon to operate at high temperatures without significant degradation.
3. High-Temperature Strength: The combination of chromium and nickel provides the alloy with excellent high-temperature strength and creep resistance, enabling its use in applications where sustained high-temperature exposure is required.
4. Corrosion Resistance: The nickel content contributes to the alloy's corrosion resistance, making it suitable for use in environments with moderate to high corrosive conditions.
5. Ductility: The nickel-rich composition of the alloy provides a good balance of ductility and strength, allowing the ribbon to be formed and shaped as needed.
Applications of Cr15Ni60 Ribbon:
1. Heating elements for electric furnaces, ovens, and other high-temperature equipment.
2. Sensing elements for temperature measurement, such as in thermocouples and resistance temperature detectors (RTDs).
3. Heating components in industrial and domestic appliances.
4. Resistor elements in electronic circuits and devices.
5. Catalytic converters in automotive exhaust systems.
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composicion | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. temperature( °C ) | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Melting Point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density(g/cm3) | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity at 20ºC(μΩ@m) | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Elongation at rupture(%) | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific Heat J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Thermal conductivity KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Micrographic structure | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
