Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE
Model Number: Cr30Ni70
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Max. Continuous Service Temp. Of Element(ºC): |
1100 |
Melting Point: |
1390 |
Resistivity: |
1.04±0.05 |
Density(g/cm3): |
7.9 |
Thermal Conductivity (KJ/m·h·ºC): |
43.8 |
Coefficient Of Lines Expansion(α×10-6/ºC): |
19 |
Melting Point Approx.( ºC): |
1390 |
Elongation At Rupture(%): |
>20 |
Max. Continuous Service Temp. Of Element(ºC): |
1100 |
Melting Point: |
1390 |
Resistivity: |
1.04±0.05 |
Density(g/cm3): |
7.9 |
Thermal Conductivity (KJ/m·h·ºC): |
43.8 |
Coefficient Of Lines Expansion(α×10-6/ºC): |
19 |
Melting Point Approx.( ºC): |
1390 |
Elongation At Rupture(%): |
>20 |

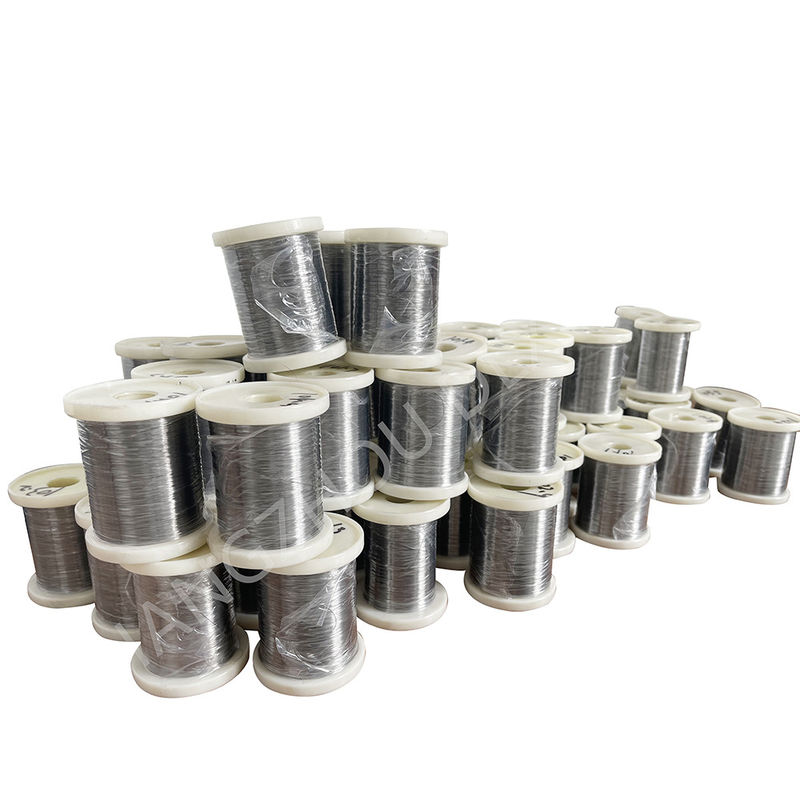

Cr30Ni70 Nichrome Wire: Exceptional Thermal Stability for Long-Lasting Industrial Heating
NiCr Series
Cr30Ni70 nickel-chromium alloy wire is a high-performance resistance heating material with excellent high-temperature stability and oxidation resistance, and is widely used in the field of industrial heating. Its chemical composition mainly includes 70% nickel and 30% chromium, with a melting point of about 1380℃, a maximum operating temperature of up to 1250℃, a resistivity of 1.18±0.05μΩ·m (at 20℃), a tensile strength of 810 MPa, and an elongation of 30%, showing good mechanical properties.
The high-temperature stability of Cr30Ni70 alloy wire makes it not easy to deform during long-term use and has a long service life. In addition, the alloy wire also has good weldability and forming ability, suitable for manufacturing heating elements of various shapes.
Cr30Ni70 alloy wire is widely used in industrial furnaces, electric heating elements, heat treatment equipment, and other fields that require high-temperature stability, especially in reducing atmospheres and high-temperature oxidizing environments. Its excellent performance makes it an indispensable material in industries such as aerospace, energy, and metallurgy.
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composition | Ni | 90 | Rest | Rest | 55.0~61.0 | 34.0~37.0 | 30.0~34.0 |
| Cr | 10 | 20.0~23.0 | 28.0~31.0 | 15.0~18.0 | 18.0~21.0 | 18.0~21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | ||
| Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity at 20℃((μΩ·m) | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | ||
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | ||
| J/g.℃ | |||||||
| Thermal conductivity | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | ||
| KJ/m.h℃ | |||||||
| Coefficient of lines expansion | 18 | 17 | 17 | 19 | 19 | ||
| a×10-6/ | |||||||
| (20~1000℃) | |||||||
| Micrographic structure | Austenite | Austenite | Austenite | Austenite | Austenite | ||
| Magnetic properties | Non-magnetic | Non-magnetic | Non-magnetic | Weak magnetic | Weak magnetic | ||
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
| Form | Specification | |
| Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
|
||
|
||
|
||
|
||
|
||
High temperature performance:
It has excellent high temperature strength and oxidation resistance, and can work stably at 1000°C or even higher.
The chromium oxide protective film formed on the alloy surface can effectively prevent further oxidation.
Corrosion resistance:
It has strong corrosion resistance to chemical media such as acids and alkalis, especially in high temperature corrosion environments.
Thermal stability:
It has a low thermal expansion coefficient (about 14×10⁻⁶/K) and good dimensional stability when the temperature changes.
It has a moderate specific heat capacity (about 0.4 J/g·K), which is suitable for applications that respond quickly to temperature changes.
Resistance performance:
The room temperature resistivity is about 1.1-1.3×10⁻⁶Ω·m, and the resistivity changes little at high temperatures.
Processing performance:
Although the hardness is high, it can be finely processed through appropriate heat treatment and processing technology.
Which industries is Cr30Ni70 wire suitable for?
Cr30Ni70 wire is widely used in electric heating, chemical industry, metallurgy, aerospace and other industries, especially for high-temperature furnaces, electric heating elements, chemical reactors and aerospace high-temperature parts.
What are its welding methods?
Cr30Ni70 wire welding methods include argon arc welding (TIG), metal arc welding (MIG) and laser welding, etc. The specific selection depends on the thickness of the workpiece and the welding requirements.
How is the oxidation resistance of Cr30Ni70 wire?
Cr30Ni70 wire has excellent oxidation resistance and can form a dense chromium oxide protective film at high temperature to prevent further oxidation. At 1000℃, its oxidation rate is extremely low, which is suitable for long-term high-temperature use.
