Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: CuNi23、CuNi30、CuNi34、6J8、6J11
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
CuNi Wire |
Cu (Min): |
55% |
Ultimate Strength (≥ MPa): |
420 |
Elongation (≥ %): |
35 |
Application: |
Air Condition Or Refrigerator |
Size: |
Customize |
Resistivity: |
0.5 |
Density: |
8.9g/cm3 |
Technology: |
Rolling And Drawing |
Product Name: |
CuNi Wire |
Cu (Min): |
55% |
Ultimate Strength (≥ MPa): |
420 |
Elongation (≥ %): |
35 |
Application: |
Air Condition Or Refrigerator |
Size: |
Customize |
Resistivity: |
0.5 |
Density: |
8.9g/cm3 |
Technology: |
Rolling And Drawing |

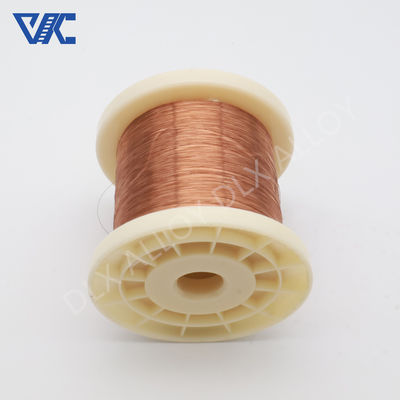

CuNi40 alloy resistance electric copper nickel heating wire is a highly useful product that is widely used in various applications. This wire is made from a special alloy that has moderate resistivity and low temperature coefficient of resistance. This means that the wire has a flat resistance/temperature curve over a wider range than other similar alloys such as "manganins". Additionally, the wire also has better corrosion resistance than other alloys.
The uses of Constantan wire are mainly restricted to AC circuits. However, it is also commonly used as the negative element of the type J thermocouple, with Iron being the positive. Type J thermocouples are used in heat treating applications. Furthermore, Constantan wire is also used as the negative element of the type T thermocouple, with OFHC Copper being the positive. Type T thermocouples are used at cryogenic temperatures.
Product Description
Cu-Ni Alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050
We can supply type of : wire, ribbon, strip, customized furnace spring wire/strip
Cold Drawing Wire: DIA 0.03m-8.0mm
Hot Rolled Rod / Bar: DIA 8.0mm-50.0mm
Cold Rolled Ribbon/Strip: (0.05mm-0.35mm) *(0.5-6.0)mm
Hot Rolled Strip: (0.5mm-2.5mm) *(5-180.0)mm
|
Properties/ Material
|
Resistivity (200C μΩ.m)
|
Max. Working Temperature(C)
|
Tensile Strength (Mpa)
|
Melting Point
|
Density(g/cm3)
|
|
NC003(CuNi1)
|
0.03
|
200
|
210
|
1085
|
8.9
|
|
NC005(CuNi2)
|
0.05
|
200
|
220
|
1090
|
8.9
|
|
NC010(CuNi6)
|
0.1
|
220
|
250
|
1095
|
8.9
|
|
NC012(CuNi8)
|
0.12
|
250
|
270
|
1097
|
8.9
|
|
NC015(CuNi10)
|
0.15
|
250
|
290
|
1100
|
8.9
|
|
NC020(CuNi14)
|
0.2
|
300
|
310
|
1115
|
8.9
|
|
NC025(CuNi19)
|
0.25
|
300
|
340
|
1135
|
8.9
|
|
NC030(CuNi23)
|
0.3
|
300
|
350
|
1150
|
8.9
|
|
NC035(CuNi30)
|
0.35
|
350
|
400
|
1170
|
8.9
|
|
NC040(CuNi34)
|
0.4
|
350
|
400
|
1180
|
8.9
|
|
NC050(CuNi44)
|
0.5
|
400
|
420
|
1200
|
8.9
|
| Shape | Size(mm) |
| Wire | 0.08-7.5 |
| Bar | 8.0-50 |
| Ribbon | (0.05-0.35)*(0.5-6.0) |
| Strip | (0.5-2.5)*(5-180) |
|
|
