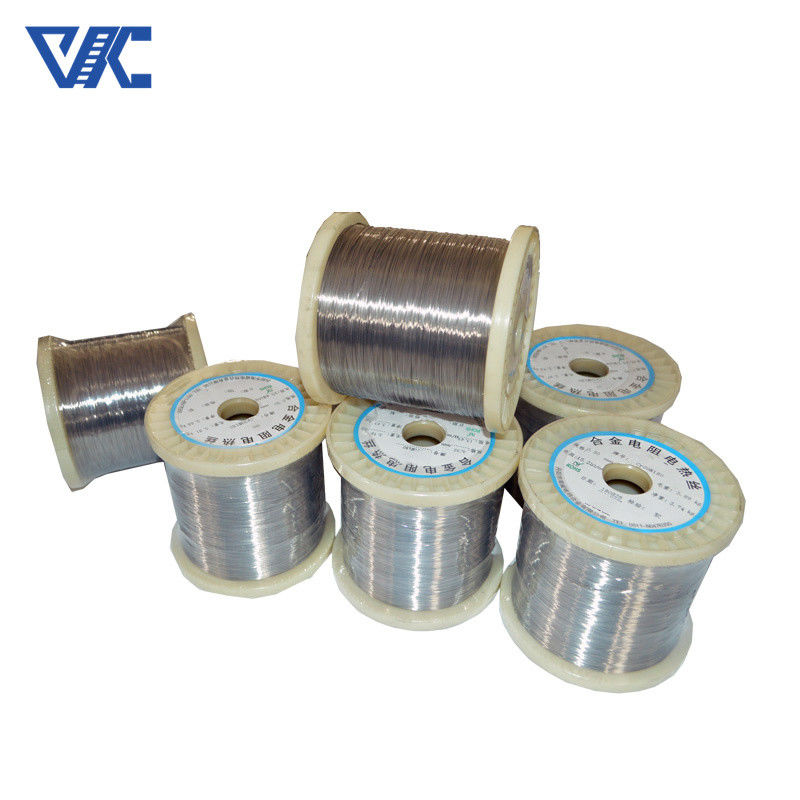

CuNi Alloy Constantan Copper Nickel Resistance Wire Cuni44

Product Details

Place of Origin: China

Brand Name: Victory

Certification: CE,ROHS,ISO 9001

Model Number: CuNi23、CuNi30、CuNi34、6J8、6J11

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Product Details
Highlight:

CuNi44 CuNi Alloy

,

CuNi Alloy Strip

,

cuni44

Product Name:
CuNi Wire
Cu (Min):
55%
Ultimate Strength (≥ MPa):
420
Elongation (≥ %):
35
Application:
Air Condition Or Refrigerator
Size:
Customize
Resistivity:
0.5
Density:
8.9g/cm3
Technology:
Rolling And Drawing
Product Name:
CuNi Wire
Cu (Min):
55%
Ultimate Strength (≥ MPa):
420
Elongation (≥ %):
35
Application:
Air Condition Or Refrigerator
Size:
Customize
Resistivity:
0.5
Density:
8.9g/cm3
Technology:
Rolling And Drawing
Product Description

CuNi alloy wire is an alloy material composed of copper (Cu) and nickel (Ni), which has good electrical conductivity and corrosion resistance. It is widely used in electrical, electronic and thermal control fields, and common grades include CuNi23, CuNi30, CuNi34, 6J8 and 6J11. Each grade has different chemical compositions and properties to suit different application needs. CuNi alloy wires perform well in high temperature and corrosive environments and can be used in various high temperature heating and measurement control applications such as electric heating devices, electric heating wires, ovens, hot air fans, drying equipment, thermocouples and temperature sensors.

CuNi alloy wire has excellent corrosion resistance, high temperature stability and reliability. They can operate stably in high temperature and corrosive environments for a long time and are suitable for various industrial and commercial fields. Different grades of CuNi alloy wires have different resistivities, current loads and mechanical strengths to meet the requirements of specific applications. Whether used in precision measurement and control applications such as electric heating devices, ovens, hot air blowers, or thermocouples and temperature sensors, CuNi alloy wire is a reliable and efficient choice.





Properties/ Material
Resistivity (200C μΩ.m)
Max. Working Temperature(C)
Tensile Strength (Mpa)
Melting Point
Density(g/cm3)
NC003(CuNi1)
0.03
200
210
1085
8.9
NC005(CuNi2)
0.05
200
220
1090
8.9
NC010(CuNi6)
0.1
220
250
1095
8.9
NC012(CuNi8)
0.12
250
270
1097
8.9
NC015(CuNi10)
0.15
250
290
1100
8.9
NC020(CuNi14)
0.2
300
310
1115
8.9
NC025(CuNi19)
0.25
300
340
1135
8.9
NC030(CuNi23)
0.3
300
350
1150
8.9
NC035(CuNi30)
0.35
350
400
1170
8.9
NC040(CuNi34)
0.4
350
400
1180
8.9
NC050(CuNi44)
0.5
400
420
1200
8.9



Shape Size(mm)
Wire 0.08-7.5
Bar 8.0-50
Ribbon (0.05-0.35)*(0.5-6.0)
Strip (0.5-2.5)*(5-180)
