Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: CuNi23、CuNi30、CuNi34、6J8、6J11
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
CuNi Wire |
Cu (Min): |
55% |
Ultimate Strength (≥ MPa): |
420 |
Elongation (≥ %): |
35 |
Application: |
Air Condition Or Refrigerator |
Size: |
Customize |
Resistivity: |
0.5 |
Density: |
8.9g/cm3 |
Technology: |
Rolling And Drawing |
Product Name: |
CuNi Wire |
Cu (Min): |
55% |
Ultimate Strength (≥ MPa): |
420 |
Elongation (≥ %): |
35 |
Application: |
Air Condition Or Refrigerator |
Size: |
Customize |
Resistivity: |
0.5 |
Density: |
8.9g/cm3 |
Technology: |
Rolling And Drawing |
Constantan, also known as a copper-nickel resistance alloy, is a highly durable material that has a high electrical resistance and a low temperature coefficient of resistance. This makes it ideal for use in applications that require stable electrical properties over a wide range of temperatures. Additionally, this alloy has high tensile strength and is resistant to corrosion, making it suitable for use in harsh environments. It can be used at temperatures of up to 600°C in air, making it an excellent choice for high-temperature applications.
Product Description
Cu-Ni Alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050

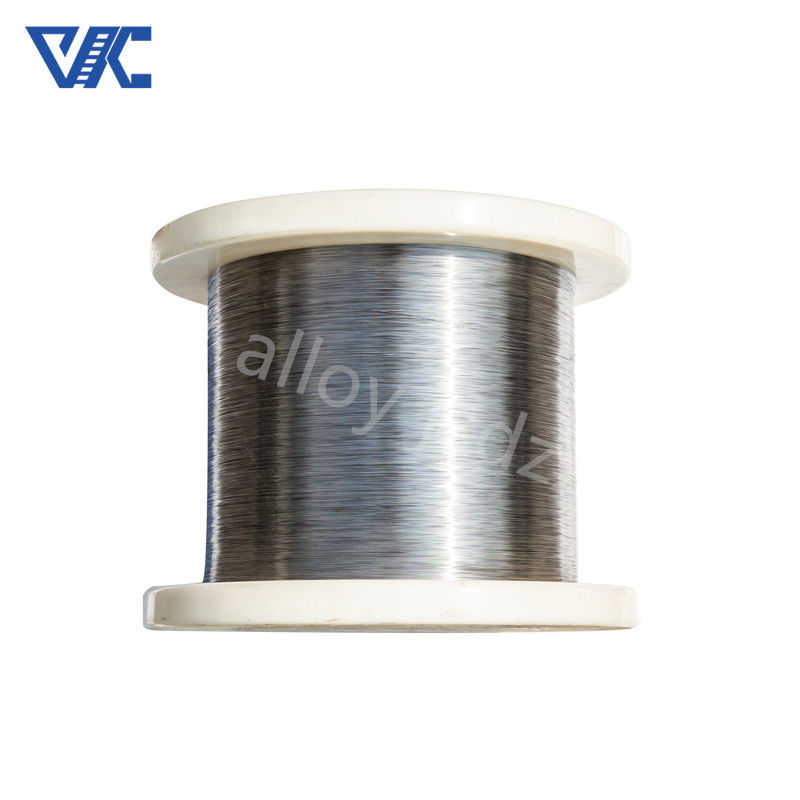

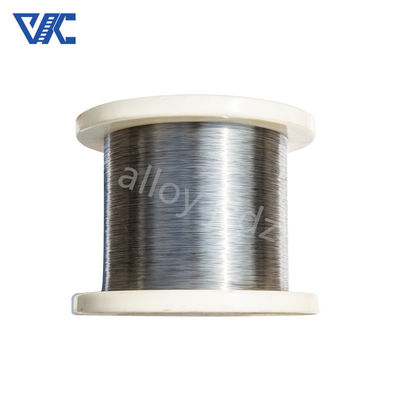

We can supply type of : wire, ribbon, strip, customized furnace spring wire/strip
Cold Drawing Wire: DIA 0.03m-8.0mm
Hot Rolled Rod / Bar: DIA 8.0mm-50.0mm
Cold Rolled Ribbon/Strip: (0.05mm-0.35mm) *(0.5-6.0)mm
Hot Rolled Strip: (0.5mm-2.5mm) *(5-180.0)mm
|
Properties/ Material
|
Resistivity (200C μΩ.m)
|
Max. Working Temperature(C)
|
Tensile Strength (Mpa)
|
Melting Point
|
Density(g/cm3)
|
|
NC003(CuNi1)
|
0.03
|
200
|
210
|
1085
|
8.9
|
|
NC005(CuNi2)
|
0.05
|
200
|
220
|
1090
|
8.9
|
|
NC010(CuNi6)
|
0.1
|
220
|
250
|
1095
|
8.9
|
|
NC012(CuNi8)
|
0.12
|
250
|
270
|
1097
|
8.9
|
|
NC015(CuNi10)
|
0.15
|
250
|
290
|
1100
|
8.9
|
|
NC020(CuNi14)
|
0.2
|
300
|
310
|
1115
|
8.9
|
|
NC025(CuNi19)
|
0.25
|
300
|
340
|
1135
|
8.9
|
|
NC030(CuNi23)
|
0.3
|
300
|
350
|
1150
|
8.9
|
|
NC035(CuNi30)
|
0.35
|
350
|
400
|
1170
|
8.9
|
|
NC040(CuNi34)
|
0.4
|
350
|
400
|
1180
|
8.9
|
|
NC050(CuNi44)
|
0.5
|
400
|
420
|
1200
|
8.9
|
| Shape | Size(mm) |
| Wire | 0.08-7.5 |
| Bar | 8.0-50 |
| Ribbon | (0.05-0.35)*(0.5-6.0) |
| Strip | (0.5-2.5)*(5-180) |
|
|
