Excellent High Temperature Strength Inconel X750 Pipe For Aerospace Industry

Introduction:

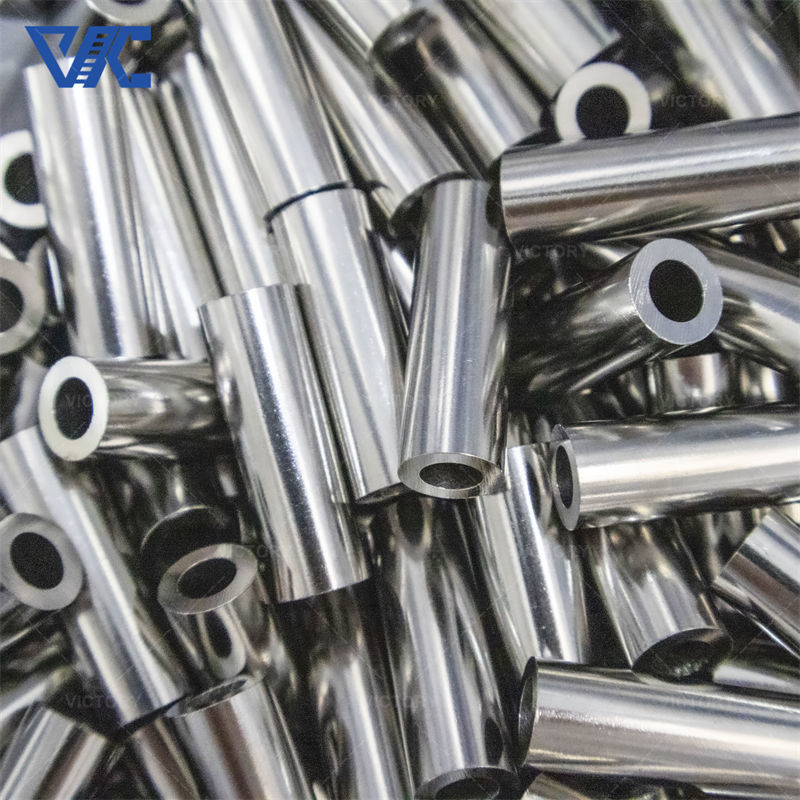

Inconel X750 tube is a tubular material made from elements such as nickel, chromium and iron. It has excellent high temperature performance and mechanical properties and is widely used in engine parts, pipes and connectors.

The pipe has a density of 8.28g/cm3 and a melting point between 1393°C and 1427°C. Inconel X750 pipe has excellent tensile strength of 1034 MPa and a yield strength of 827 MPa, ensuring reliability and durability under high-load operating conditions.

In addition, Inconel X750 tubes have a good thermal expansion coefficient of approximately 12.6 µm/m·°C. This allows it to remain dimensionally stable in high-temperature environments and to withstand stresses caused by thermal cycling.

Inconel X750 pipe plays an important role in applications such as engine components, pipes and connectors. It can withstand severe working conditions such as high temperature, pressure and corrosion, and provides excellent performance and reliability.

Product Features:

• High Temperature Strength: Inconel X750 pipe has excellent high temperature strength and is able to withstand the high temperatures, pressures and extreme environmental requirements found in the aerospace industry.
• Corrosion resistance: It has excellent corrosion resistance and can withstand chemical media and corrosive environments in the aerospace industry.
• Good processability: Inconel X750 tube is easy to process and form, and can meet the manufacturing needs of complex components.


Advantage:

• High Temperature Durability: Inconel X750 tubes maintain stable performance in high temperature environments such as aerospace engines and propulsion systems, providing long-term reliable operation.
• Anti-oxidation performance: It has good anti-oxidation performance and can resist corrosion and oxidation in high-temperature atmosphere, extending the service life of the material.
• Fatigue Resistance: Inconel X750 pipe has good fatigue resistance and is able to withstand the vibrations and loads found in the aerospace industry.


Specific applications:

1. Engine Components: Inconel X750 tubing can be used in critical components in aerospace engines, such as combustion chambers, turbine blades, nozzles, and combustor components.
2. Propulsion system: Suitable for key components such as pipes, connectors and nozzles in aerospace propulsion systems to provide reliable performance in high temperature and high pressure environments.
3. Structural parts: Inconel X750 pipe can be used in aerospace structural parts such as support rods, connecting rods and springs to meet the requirements for high strength and corrosion resistance.

Other relevant knowledge:

1. Composition of Inconel X750 alloy: Inconel X750 alloy is mainly composed of alloy elements such as nickel, chromium, titanium and niobium. The reasonable ratio of these elements gives the alloy excellent high-temperature strength and corrosion resistance.
2. Heat Treatment and Processing: Inconel X750 pipe typically requires heat treatment to improve its mechanical properties and corrosion resistance. In addition, the alloy can be formed and processed through processes such as cold working and welding to meet the needs of the aerospace industry.
3. Corrosion resistance: Inconel X750 pipe has good corrosion resistance and is able to withstand chemical media and corrosive environments in the aerospace industry, providing reliable performance.

Parameter:

• Chemical Properties of Inconel X750

•

• Element	Ni +Co	Cr	Nb	Ti	C	Mn	Si	Cu	Al	S	Iron
  Chemical Composition (%)	70% Min	14%-17%	0.7%-1.2%	2.25%-2.75%	0.08% max	1% max	0.5% max	0.30% max	0.4%-1.0%	0.01% max	5%-9%

Type we could offer

Shape Size(mm) WIre 0.5-7.5 Rod/Bar 8.0-200 Strip (0.5-2.5)*(5-180) Tube custom made Plate custom made

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Q & A:

Q: What are the typical applications for Inconel X750 tubes?

A: Inconel X750 tubes find applications in various industries. They are commonly used in aerospace for engine components, exhaust systems, and thrust reversers.

Q: Can Inconel X750 tubes withstand extreme temperature conditions?

A: Yes, Inconel X750 tubes exhibit excellent high-temperature strength and can withstand extreme temperature conditions.
