Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO
Model Number: Inconel 617
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 50 KGS
Price: 50 - 500 kgs $32-$38
Packaging Details: Wooden Case
Delivery Time: 21-45 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10 Tons Per Month
Surface: |
Bright |
Density: |
8.36 G/cm3 |
Tensile Strength: |
665 Mpa |
Yield Strength (0.2% Offset): |
240 Mpa |
Elongation: |
35% |
Melting Range: |
1330 - 1380 ℃ |
Wall Tolerance: |
±3-5% |
Pipe Type: |
Seamless / ERW / Welded / Fabricated / LSAW Pipe |
Pipe End: |
Plain End, Beveled End, Treaded |
MOQ: |
50KGS |
Delivery Lead Time: |
21-40 Working Days |
Standard: |
ASTM B167 / ASTM B626 |
Surface: |
Bright |
Density: |
8.36 G/cm3 |
Tensile Strength: |
665 Mpa |
Yield Strength (0.2% Offset): |
240 Mpa |
Elongation: |
35% |
Melting Range: |
1330 - 1380 ℃ |
Wall Tolerance: |
±3-5% |
Pipe Type: |
Seamless / ERW / Welded / Fabricated / LSAW Pipe |
Pipe End: |
Plain End, Beveled End, Treaded |
MOQ: |
50KGS |
Delivery Lead Time: |
21-40 Working Days |
Standard: |
ASTM B167 / ASTM B626 |

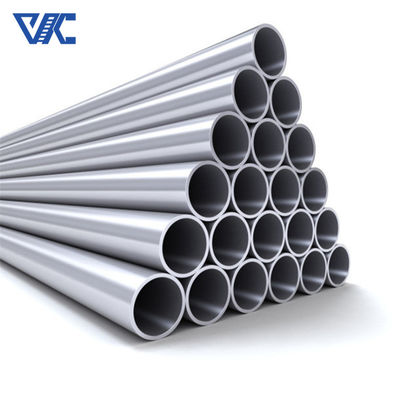

Bright surface UNS N06617 Nickel Alloy 617 Inconel 617 Seamless / Welded Pipe Tube Supplier
Inconel 617 is a nickel-based superalloy that is known for its excellent high-temperature strength, corrosion resistance, and oxidation resistance. Some key features of Inconel 617 include:
Composition:
Primarily composed of nickel, chromium, and cobalt, with smaller amounts of molybdenum, iron, and other elements.
Typical composition: Ni 44-46%, Cr 20-24%, Co 10-15%, Mo 8-10%, Fe ≤3%, Al ≤1.5%, Ti ≤0.6%.
High-Temperature Properties:
Maintains excellent mechanical properties and corrosion resistance up to temperatures of around 1100°C (2012°F).
Exhibits outstanding creep and stress-rupture resistance at elevated temperatures.
Corrosion and Oxidation Resistance:
Highly resistant to corrosion in various environments, including oxidizing, reducing, and high-sulfur atmospheres.
Forms a protective oxide layer that provides excellent resistance to high-temperature oxidation.
What is the application of Inconel 617 pipe?
1. Petrochemical Industry:
Inconel 617 pipes are used in refinery and petrochemical plant equipment, such as:
Heaters
Furnaces
Heat exchangers
Reactors
The pipes are able to withstand the harsh, high-temperature, and corrosive environments found in these processes.
2. Power Generation:
Inconel 617 pipes are used in the construction of:
Boilers
Superheaters
Reheaters
Turbine components
The pipes can operate reliably at the high temperatures and pressures encountered in power generation equipment.
3. Aerospace and Gas Turbines:
Inconel 617 pipes are employed in the hot sections of gas turbine engines, such as:
Combustion chambers
Transition ducts
Exhaust systems
The material's high-temperature strength and oxidation resistance make it suitable for these demanding applications.
4. Waste-to-Energy Plants:
Inconel 617 pipes are used in the furnaces and heat recovery systems of waste-to-energy facilities.
The pipes can withstand the corrosive combustion byproducts and high temperatures in these environments.
5. Specialty Applications:
Inconel 617 pipes may also be used in other high-temperature, corrosive applications, such as:
Chemical processing equipment
Flue gas desulfurization systems
Thermal treatment furnaces
The combination of Inconel 617's material properties makes it a valuable choice for piping systems in industries where reliability and performance at elevated temperatures are critical.
Inconel Alloy Series Composition:
| Item |
Inconel 600 |
Inconel 601 |
Inconel 617 |
Inconel 625 |
Inconel 690 | Inconel718 | Inconel X750 |
Inconel 825 |
| C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
| Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
| Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
| P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
| S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
| Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
| Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
| Ni | ≥7.2 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
| Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
| Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
| Ti | -- | -- | ≤0.6 | ≤1.15 | -- | ≤1.15 | 2.25-2.75 | 0.6-1.2 |
| Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
| Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
| Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
| B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Inconel 617 Alloy Parameter:
| Inconel 600 | Tensile strength (Rm N/mm2) | Yield strength (RP0.2N/mm2) | Elongation A5 (%) |
Brinell hardness (HB) |
Density(g/cm3) | Melting Point (℃) |
| Seamless | 660 | 240 | 35 | --- | 8.36 | 1330~1380°C |
| Welded | 660 | 240 | 35 | --- |
