Changzhou Victory Technology Co., Ltd victory@dlx-alloy.com 86-199-06119641
Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001 ROHS
Model Number: Inconel 600
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 30 Kg
Price: Negotiable
Packaging Details: Inconel 600 rod packed in Spool Carton box, Coil package with polybag,then in woodencase
Delivery Time: 20~40 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Name: |

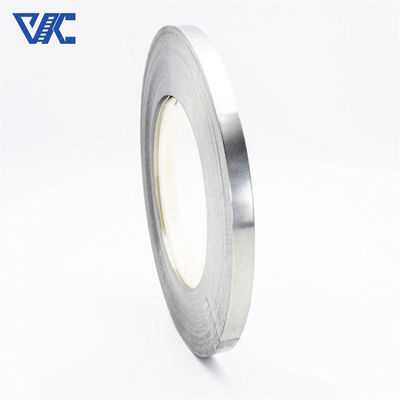

Nickel-chromium-iron Alloy UNS N06600 ASTM B168 0.05mm Thickness Inconel 600 Strip Sheet |
Material: |
Nickel Chromium Iron |
Ni (Min): |
72% |
Density: |
8.47 G/cm3 |
Melting Point: |
1,370-1,425°C |
Elongation (≥ %): |
30 % |
Thermal Conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided |
Application: |
Construction, Industry Oil, Piping Systems |
Yield Strength: |
240 MPa |
Tensile Strength: |
550 MPa |
Hardness: |
≤ 160 HB |
Standard: |
ASTM, ASME |
Size: |
6~500mm |
Shape: |
Round, Square, Hex (A/F), Rectangle, Forging |
Name: |
Nickel-chromium-iron Alloy UNS N06600 ASTM B168 0.05mm Thickness Inconel 600 Strip Sheet |
Material: |
Nickel Chromium Iron |
Ni (Min): |
72% |
Density: |
8.47 G/cm3 |
Melting Point: |
1,370-1,425°C |
Elongation (≥ %): |
30 % |
Thermal Conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided |
Application: |
Construction, Industry Oil, Piping Systems |
Yield Strength: |
240 MPa |
Tensile Strength: |
550 MPa |
Hardness: |
≤ 160 HB |
Standard: |
ASTM, ASME |
Size: |
6~500mm |
Shape: |
Round, Square, Hex (A/F), Rectangle, Forging |
Inconel 600 alloy material performance?
Inconel 600 is a nickel-based alloy with the following characteristics:
Excellent corrosion resistance, able to resist corrosion in a variety of highly corrosive environments.
Superb oxidation resistance at high temperatures, able to be used for long periods at temperatures above 800°C.
Relatively high strength and hardness, allowing use under high stress conditions.
Good weldability, making it convenient for fabrication through welding.
How does the maximum operating temperature of Inconel 600 compare to other high-temperature alloys?
Inconel 600 has an excellent high-temperature performance compared to many other high-temperature alloys. Here's a comparison of the maximum operating temperatures:
Inconel 600:
Maximum long-term operating temperature: Around 1100°C (2012°F)
Maximum short-term operating temperature: Around 1200°C (2192°F)
Other high-temperature alloys:
Stainless Steel 304: Maximum around 800-900°C (1472-1652°F)
Stainless Steel 310: Maximum around 1100°C (2012°F)
Hastelloy C-276: Maximum around 1100°C (2012°F)
Haynes 230: Maximum around 1150°C (2102°F)
Inconel 718: Maximum around 650-800°C (1202-1472°F)
Compared to the other alloys listed, Inconel 600 has one of the highest maximum operating temperatures, making it well-suited for the most demanding high-temperature applications.
What are the typical operating temperature ranges for Inconel 600 components?
Cryogenic temperatures down to around -250°C (-418°F)
Up to around 1100°C (2012°F) for long-term use
Up to around 1200°C (2192°F) for short-term use
The excellent high-temperature strength and oxidation resistance of Inconel 600 allows it to be used in a wide range of high-temperature applications, such as:
Components in nuclear reactors
Furnace parts
Combustion equipment
Aerospace applications
Chemical processing equipment
what's the main application of Inconel 600 strip?
Inconel 600 strips are mainly used in the following areas:
Chemical equipment manufacturing
Power equipment manufacturing
Aerospace industry
Nuclear power equipment manufacturing
Medical device manufacturing
Chemical Properties of Inconel 600
| C | Cr | Ni+Co | Al | Ti | Fe | Nb+Ta | Mn | Si | P | S | Cu |
| ≤0.15 | 14.0～17.0 | ≥72 | ≤0.35 | ≤0.50 | 6.0～10.0 | ≤1.0 | ≤1.0 | ≤0.5 | ≤0.04 | ≤0.015 | ≤0.5 |
| ITEM | θ/℃ | TENSIE STRENGTH | HBS | |||
| σb/MPa | σP0.2/MPa | δ5/% | φ/% | |||
| BAR/ROD | 20 | ≥585 | ≥240 | ≥30 | - | 134～217 |
| RING | 20 | ≥520 | ≥205 | ≥35 | - | ≥187 |
| HOT ROLL PLATE | 20 | ≥550 | ≥240 | ≥35 | ≥40 | - |
| 900 | ≥95 | ≥45 | ≥40 | ≥50 | - | |
| COLD ROLLED SHEET | 20 | ≥550 | ≥240 | ≥30 | - | - |
| 900 | ≥90 | ≥40 | ≥60 | - | - | |
| COLD ROLLED SHEET | 20 | ≥550 | ≥200 | ≥30 | - | - |
| STRIP | 20 | ≥550 | ≥240 | ≥30 | - | - |
| WIRE | 20 | - | HV≤151 | |||
|
Shape
|
Size(mm)
|
|
WIre
|
0.5-7.5
|
|
Rod/Bar
|
8.0-200
|
|
Strip
|
(0.5-2.5)*(5-180)
|
|
Tube
|
custom made
|
|
Plate
|
custom made
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
