Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001 ROHS
Model Number: Inconel 600
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 10 Kg
Price: Negotiable
Packaging Details: Inconel 600 rod packed in Spool Carton box, Coil package with polybag,then in woodencase
Delivery Time: 20~40 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Name: |
Tensile 1300~1500 Mpa Nickel Based Alloy ASTM B166 Inconel 600 Spring Wire |
Material: |
Nickel Chromium Iron |
Ni (Min): |
72% |
Density: |
8.47 G/cm3 |
Melting Point: |
1,370-1,425°C |
Elongation (≥ %): |
30 % |
Thermal Conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided |
Application: |
Construction, Industry Oil, Piping Systems |
Yield Strength: |
240 MPa |
Tensile Strength: |
550 MPa |
Hardness: |
≤ 160 HB |
Standard: |
ASTM, ASME |
Size: |
6~500mm |
Shape: |
Round, Square, Flat |
Name: |
Tensile 1300~1500 Mpa Nickel Based Alloy ASTM B166 Inconel 600 Spring Wire |
Material: |
Nickel Chromium Iron |
Ni (Min): |
72% |
Density: |
8.47 G/cm3 |
Melting Point: |
1,370-1,425°C |
Elongation (≥ %): |
30 % |
Thermal Conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided |
Application: |
Construction, Industry Oil, Piping Systems |
Yield Strength: |
240 MPa |
Tensile Strength: |
550 MPa |
Hardness: |
≤ 160 HB |
Standard: |
ASTM, ASME |
Size: |
6~500mm |
Shape: |
Round, Square, Flat |

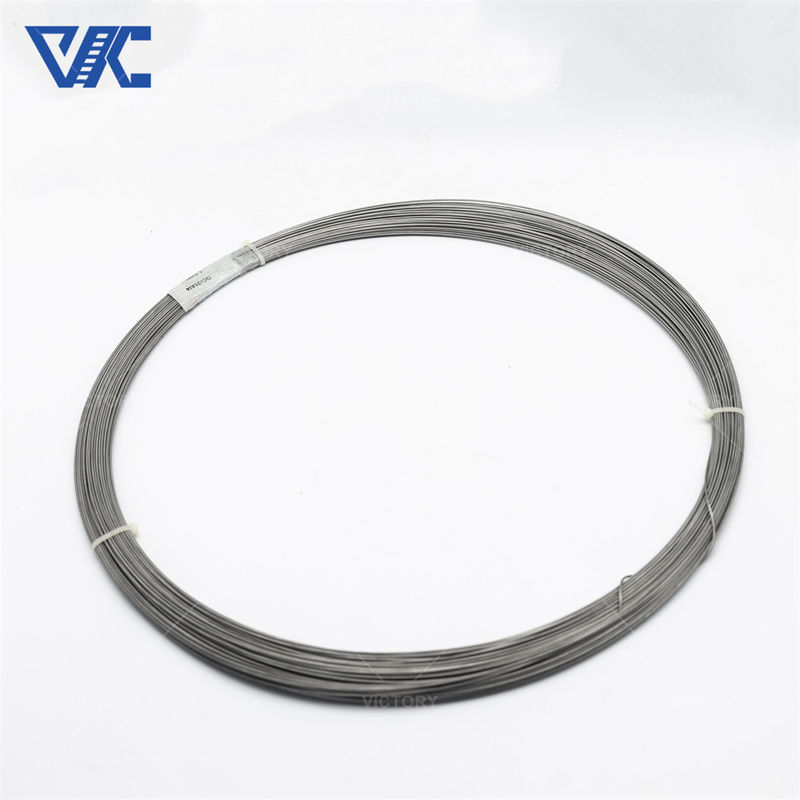

Inconel 600 wire for spring
Properties of Inconel 600 Relevant for Spring Applications:
High Strength-to-Weight Ratio:
Inconel 600 has a tensile strength of 585-745 MPa, allowing for compact, lightweight spring designs.
The relatively low density of 8.47 g/cm³ helps minimize the weight of Inconel 600 springs.
Excellent Fatigue Resistance:
The microstructural stability of Inconel 600 gives it outstanding fatigue life, withstanding millions of cycles.
This is crucial for springs that undergo repeated flexing and loading.
Corrosion Resistance:
Inconel 600's high chromium content (14-17%) provides excellent resistance to corrosion and oxidation.
This makes Inconel 600 springs suitable for harsh, corrosive environments.
High-Temperature Capability:
Inconel 600 retains its strength and elasticity at temperatures up to 1100°C.
This allows its use in high-heat applications like engine valves and furnace components.
Recommend other nickel-based alloys that are commonly used for spring manufacturing
Inconel 718:
Another nickel-chromium superalloy, similar to Inconel 600 but with higher strength.
Commonly used for aerospace engine springs, fasteners, and other high-strength applications.
Hastelloy C-276:
A nickel-molybdenum-chromium alloy with excellent corrosion resistance.
Often used for chemical processing equipment springs and other corrosive environment applications.
Nimonic 90:
A nickel-chromium-cobalt-titanium alloy with high-temperature strength and creep resistance.
Ideal for valve springs and other engine components operating at elevated temperatures.
MP35N:
A nickel-cobalt-chromium-molybdenum alloy with extremely high strength and fatigue life.
Commonly used for medical device springs, aerospace, and other highly demanding applications.
Chemical Properties of Inconel 600
| C | Cr | Ni+Co | Al | Ti | Fe | Nb+Ta | Mn | Si | P | S | Cu |
| ≤0.15 | 14.0～17.0 | ≥72 | ≤0.35 | ≤0.50 | 6.0～10.0 | ≤1.0 | ≤1.0 | ≤0.5 | ≤0.04 | ≤0.015 | ≤0.5 |
| ITEM | θ/℃ | TENSIE STRENGTH | HBS | |||
| σb/MPa | σP0.2/MPa | δ5/% | φ/% | |||
| BAR/ROD | 20 | ≥585 | ≥240 | ≥30 | - | 134～217 |
| RING | 20 | ≥520 | ≥205 | ≥35 | - | ≥187 |
| HOT ROLL PLATE | 20 | ≥550 | ≥240 | ≥35 | ≥40 | - |
| 900 | ≥95 | ≥45 | ≥40 | ≥50 | - | |
| COLD ROLLED SHEET | 20 | ≥550 | ≥240 | ≥30 | - | - |
| 900 | ≥90 | ≥40 | ≥60 | - | - | |
| COLD ROLLED SHEET | 20 | ≥550 | ≥200 | ≥30 | - | - |
| STRIP | 20 | ≥550 | ≥240 | ≥30 | - | - |
| WIRE | 20 | - | HV≤151 | |||
|
Shape
|
Size(mm)
|
|
WIre
|
0.5-7.5
|
|
Rod/Bar
|
8.0-200
|
|
Strip
|
(0.5-2.5)*(5-180)
|
|
Tube
|
custom made
|
|
Plate
|
custom made
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
