Changzhou Victory Technology Co., Ltd victory@dlx-alloy.com 86-199-06119641
Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001 ROHS
Model Number: Inconel 718
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 30 Kg
Price: Negotiable
Packaging Details: Spool Carton box, Coil package with polybag,then in woodencase
Delivery Time: 20~40 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Name: |

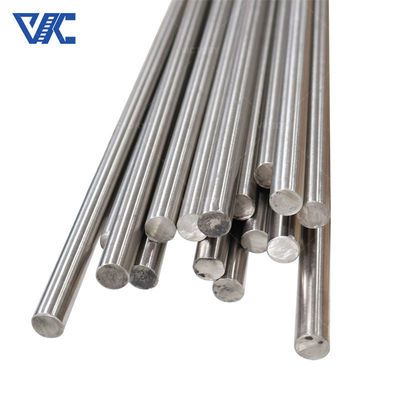

Polished Black Surface OD 50mm 70mm 80mm 120mm Nickel Alloy Bar Inconel 718 Round Bar For Aircraft Engines |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 G/cm3 |
Melting Point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal Conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, Acid White |
Application: |
Construction, Industry Oil, Piping Systems |
Yield Strength: |
550MPa |
Tensile Strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
Size: |
6~200mm |
Shape: |
Round, Square, Flat |
Name: |
Polished Black Surface OD 50mm 70mm 80mm 120mm Nickel Alloy Bar Inconel 718 Round Bar For Aircraft Engines |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 G/cm3 |
Melting Point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal Conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, Acid White |
Application: |
Construction, Industry Oil, Piping Systems |
Yield Strength: |
550MPa |
Tensile Strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
Size: |
6~200mm |
Shape: |
Round, Square, Flat |
Inconel 718 alloy
INCONEL alloy 718 has excellent corrosion resistance to many media. This resistance, which is similar to that of other nickel-chromium alloys, is a function of its composition. Nickel contributes to corrosion resistance in many inorganic and organic, other than strongly oxidizing, compounds throughout wide ranges of acidity and alkalinity. It also is useful in combating chloride-ion stress-corrosion cracking.
The key mechanical properties and characteristics that make Inconel 718 a high-performance alloy
Inconel 718 is recognized as a high-performance alloy due to its exceptional mechanical properties and characteristics. Here are the key properties that contribute to its performance:
Key Mechanical Properties
High Yield Strength:
Retains high yield strength (up to 1,200 MPa or more) at both room and elevated temperatures, making it suitable for high-stress applications.
Tensile Strength:
Exhibits excellent tensile strength (up to 1,400 MPa) which is critical for components subjected to heavy loads.
Fatigue Resistance:
Outstanding resistance to fatigue failure, allowing it to withstand cyclic loading without significant degradation over time.
Ductility:
Good ductility ensures that the material can deform without fracturing, which is essential for applications that require resilience under stress.
Impact Toughness:
Maintains toughness even at low temperatures, making it suitable for applications where impact resistance is critical.
Creep Resistance:
Excellent resistance to creep deformation at elevated temperatures, which is crucial for components operating in high-temperature environments.
Chemical Properties of Inconel 718
Nickel (plus Cobalt) .......................................................50.00-55.00
Chromium......................................................................17.00-21.00
Iron .....................................................................................Balance
Niobium (plus Tantalum)....................................................4.75-5.50
Molybdenum .....................................................................2.80-3.30
Titanium.............................................................................0.65-1.15
Aluminum ..........................................................................0.20-0.80
Cobalt ...............................................................................1.00 max.
Carbon..............................................................................0.08 max.
Manganese .......................................................................0.35 max.
Silicon ...............................................................................0.35 max.
Phosphorus.....................................................................0.015 max.
Sulfur...............................................................................0.015 max.
Boron ..............................................................................0.006 max.
Copper..............................................................................0.30 max
| Density | 8.19g/cm³ | 0.296 lb/in³ |
| Melting point | 1260-1336 | 2437°F |
Inconel series
Customize size as below
|
Shape
|
Size(mm)
|
|
WIre
|
0.5-7.5
|
|
Rod/Bar
|
8.0-200
|
|
Strip
|
(0.5-2.5)*(5-180)
|
|
Tube
|
custom made
|
|
Plate
|
custom made
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
